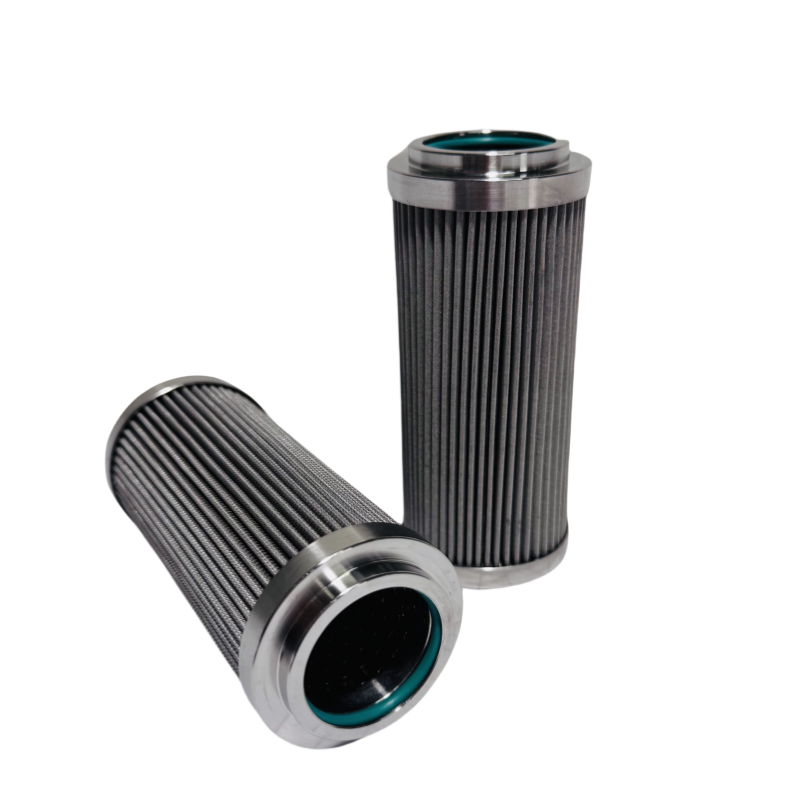

274A.2L50.EL210 High Pressure Filter Cartridge Basic Information

1. Filtration Accuracy

Glass fiber: 1–70 µm; Metal mesh: 3–400 µm; Filter paper: 5–40 µm; Customizable from 0.01–500 µm depending on operating conditions.

2. Flow Rate and Differential Pressure

- Rated flow rate: 6–9100 L/min (Series covers 2–2600 L/min)

- Initial differential pressure: ≤0.2 MPa; Recommended replacement differential pressure is 1 bar; Maximum allowable differential pressure is 3.5 bar.

3. Operating Pressure and Temperature

- Operating pressure: ≤450 bar (450 kg·f/cm²)

- Operating temperature: -30 ℃～+120 ℃.

4. Filter Media and Structure

Pleated fiberglass / stainless steel mesh / sintered felt / powder sintering / polypropylene / filter paper; iron housing, screw-on or flange mounting; optional bypass valve and blockage indicator (alarm values ​​1 bar, 3 bar, 3.5 bar optional).

5. Testing Standards

ISO 2941–2943, 3723, 3724, 3968, 4572, 16889 (bursting resistance, structural integrity, material compatibility, end load, fatigue, differential pressure-flow rate, multiple passes).

6. Typical Applications

High-pressure hydraulic systems in industries such as slag dryers, rolling mills, continuous casting machines, power plants, steel mills, tunnel boring machines, mining, papermaking, petroleum, shipbuilding, chemical, and textile industries.
