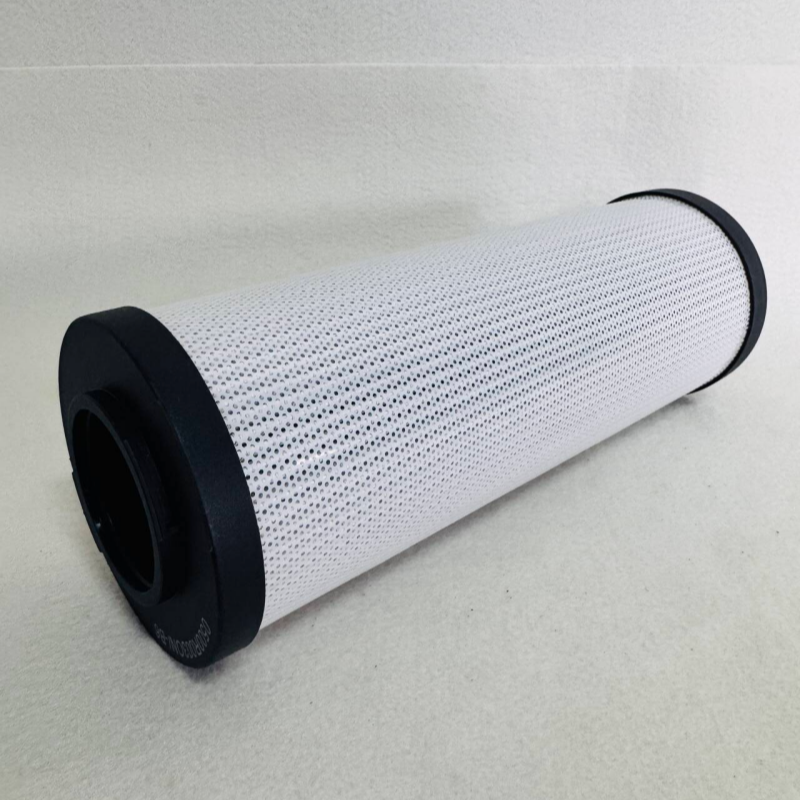

The hydraulic filter element 0500R010BN4HC is a commonly used low-pressure filtration component within hydraulic systems. Detailed specifications are provided below.

Basic Product Information

 Item  Information

 Product Model  0500R010BN4HC

 Product Type  Return Line Filter Element / Low-Pressure Hydraulic Filter Element

 Primary Application  Installed in the return line of hydraulic systems to filter out solid particles and colloidal contaminants from the fluid, thereby maintaining fluid cleanliness.

 Applicable Media  General hydraulic oils, lubricating oils, phosphate ester hydraulic fluids, emulsions, water-glycol mixtures, etc.

Core Technical Parameters

 Parameter  Value

 Filter Media Type  Glass Fiber (Glass Fiber Filter Paper BN)

 Filtration Precision  10μm (β ≥ 1000)

 Max. Operating Pressure  1.6 MPa ~ 3.5 MPa (Low-pressure return/lubrication circuits)

 Bypass Valve Opening Pressure  0.35 MPa ± 0.05 MPa (Automatically opens when the filter element becomes clogged)

 Operating Temperature Range  -30°C ~ +120°C

 Max. Flow Rate  400 L/min

 Seal Material  Nitrile Rubber (NBR)

 Structural Strength  Axial rigidity complies with ISO standards; Collapse pressure rating: 21 MPa

Scope of Application

This filter element is widely utilized in hydraulic and lubrication systems across the following sectors:

Metallurgical Industry: Rolling mills, continuous casting machines, blast furnace ironmaking hydraulic systems.

Construction Machinery: Hydraulic systems for excavators, cranes, etc.

Power Generation Equipment: Lubrication systems for thermal/nuclear power turbines, hydraulic systems for wind power generation.

Petrochemical Industry: Filtration processes within oil refining and chemical manufacturing operations.

Other: Paper-making machinery, shipbuilding, injection molding machines, machine tools, etc.
