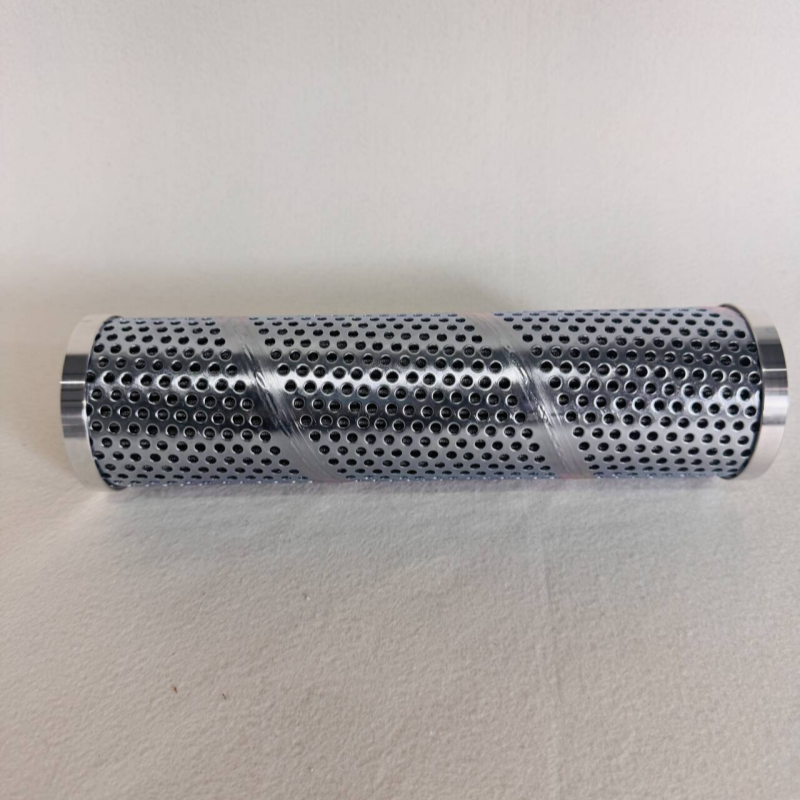

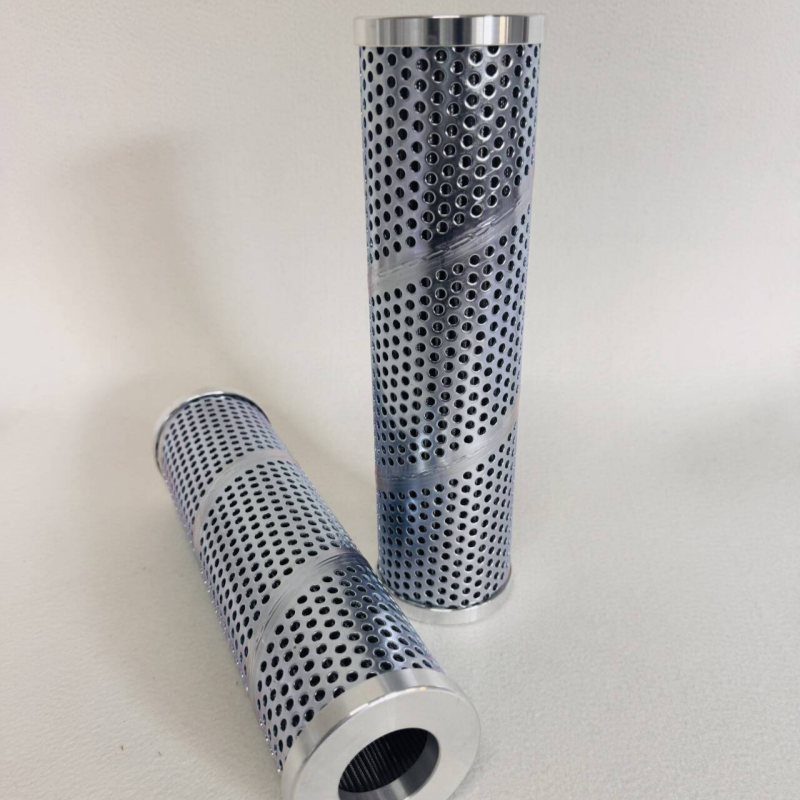

932268 Hydraulic Filter Element

The 932268 hydraulic filter element is an industrial replacement filter commonly found in equipment such as rotary hearth furnace hydraulic stations. The following provides its basic parameters and application information. Basic Product Information

 Item Information

 Product Model 932268

 Corresponding Model BF-NOR-710688-L18-3AB

 Product Type Return Line Filter Element for Rotary Hearth Furnace Hydraulic Station

 Primary Function Installed within the hydraulic oil system to continuously filter impurities, moisture, and other contaminants from the oil, ensuring the normal operation of the system.

 Typical Applications Rotary Hearth Furnace Hydraulic Stations, Power Plants, Steel Mills, Tunnel Boring Machines (TBM), Mining, Pulp & Paper, Petroleum, Marine Vessels, Chemical Industry, Textiles, various types of power machinery, etc.

Technical Parameters

 Parameter Value / Range

 Filter Media Type Glass Fiber, Filter Paper, Metal Mesh, Metal Powder, Sintered Metal, Sintered Felt, etc.

 Filtration Precision Glass Fiber: 1–70 μm; Metal Mesh: 3–400 μm; Filter Paper: 5–40 μm

 Rated Flow Rate 6 – 9100 L/min

 Operating Pressure ≤ 450 kg (approx. 45 MPa); 16-bar version also available

 Maximum Operating Pressure 420 kg (approx. 42 MPa)

 Operating Temperature -30 – 120°C

 Minimum Differential Pressure 0.2 MPaT

esting Standards

This filter element typically complies with the following international standards:

 Standard No. Description

 ISO 2941 Hydraulic fluid power — Filter elements — Verification of collapse/burst resistance

 ISO 2942 Hydraulic fluid power — Filter elements — Verification of fabrication integrity and determination of the first bubble point

 ISO 2943 Hydraulic fluid power — Filter elements — Verification of material compatibility with fluids

 ISO 3723 Hydraulic fluid power — Filter elements — Verification of end load test

 ISO 3724 Hydraulic fluid power — Filter elements — Verification of flow fatigue characteristics

 ISO 3968 Hydraulic fluid power — Filters — Evaluation of pressure drop versus flow characteristics Filter Element Differential Pressure-Flow Characteristics

 ISO 4572 Multi-Pass Method for Determining the Filtration Characteristics of Filter Elements

 ISO 16889 Determination of Filtration Ratio and Dirt-Holding Capacity
