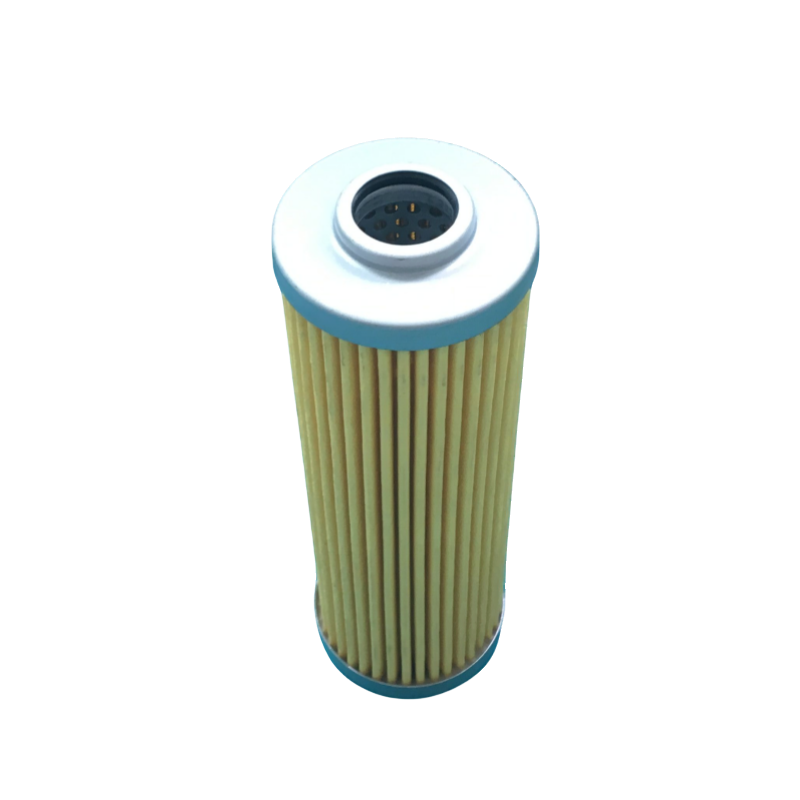

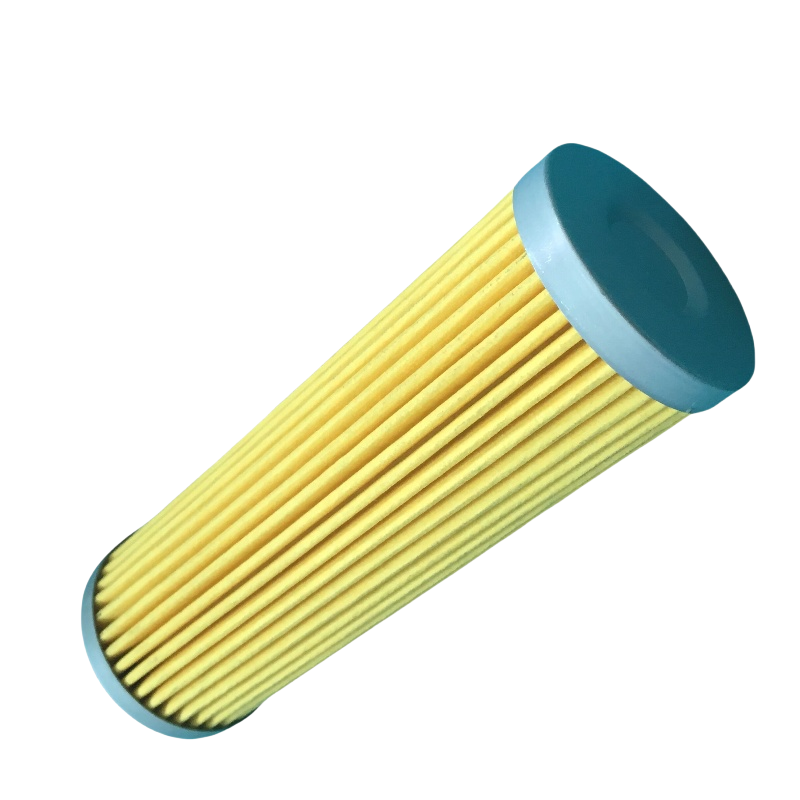

HP8NL8-10MV Hydraulic Filter Element

The HP8NL8-10MV is a filter element designed for use in hydraulic oil systems. The following provides its basic information and technical specifications.

- Product Name: HP8NL8-10MV Hydraulic Filter Element / Blower Lubricating Oil Filter Element

- Application: Installed at the inlet of hydraulic oil or lubricating oil systems to continuously filter out impurities, moisture, and other contaminants from the oil, thereby ensuring the proper operation of the equipment.

- Applicable Industries: Power plants, steel mills, tunneling machinery, mining, papermaking, petroleum, marine vessels, chemical processing, textiles, various types of power machinery, etc.

Technical Specifications

 Parameter  Value / Range

 Filter Media Type  Glass fiber, filter paper, metal mesh, sintered metal, etc.

 Filtration Accuracy  Glass Fiber: 1–70 μm; Filter Paper: 5–40 μm; Metal Mesh: 3–400 μm

 Rated Flow Rate  6 – 9100 L/min (Wide range; specific value depends on the exact model variant)

 Operating Pressure   450 kg (Approx. 45 MPa)

 Operating Temperature  -30 – 120 ℃

Testing Standards

This filter element typically complies with the following international standards (for reference):

- ISO 2942 (Structural Integrity)

- ISO 2943 (Material and Fluid Compatibility)

- ISO 3724 (Determination of Fatigue Characteristics)

- ISO 3968 (Pressure Drop vs. Flow Characteristics)

- ISO 16889 (Filtration Ratio / Dirt-holding Capacity)
