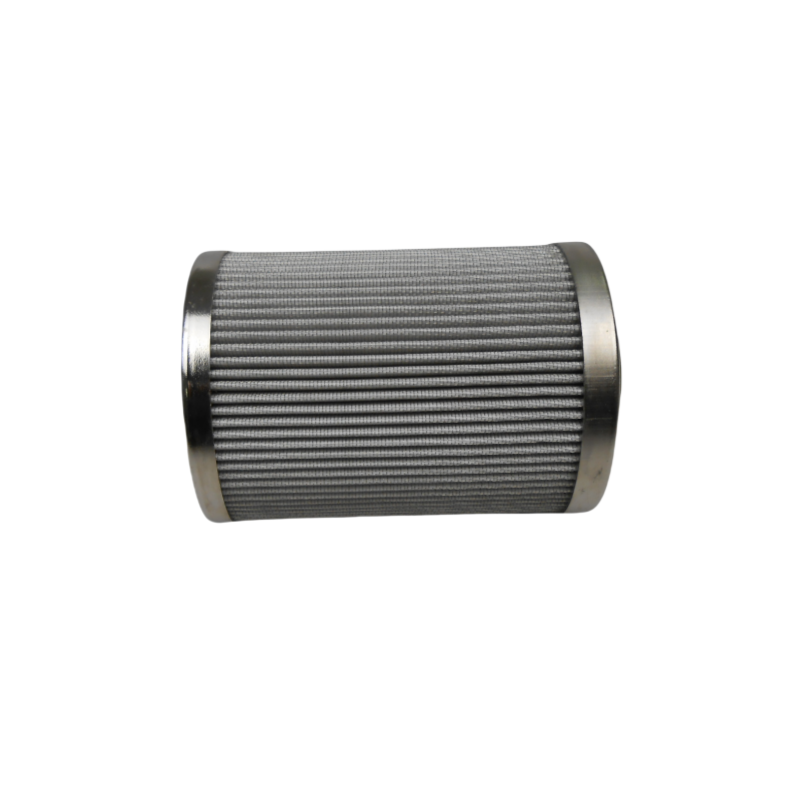

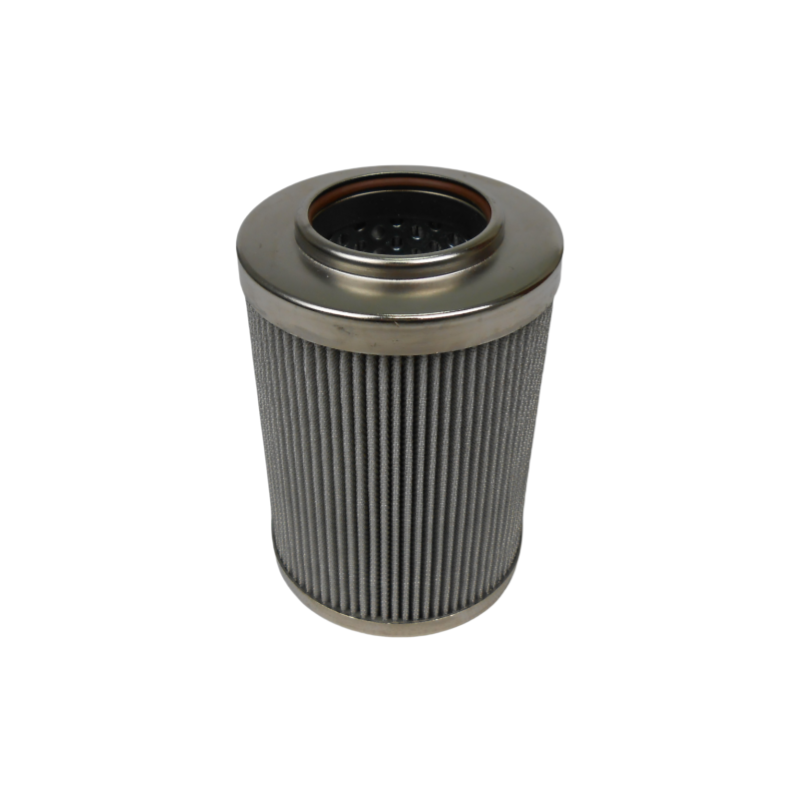

Positioning: Highpressure line fiberglass filter element, designed for pressureside filtration in hydraulic and lubrication systems to protect precision components.

 HP3: Series (High Pressure, approx. 21 MPa class)

 G: Glass Fiber

 HL: High Pressure, Long Type

 16: Nominal Diameter 1.6" (approx. 40.6 mm)

 2MV: 2 μm Filtration Rating; M = 16 MPa Class; V = Stainless Steel Sintered Mesh Guard

 II. Key Technical Parameters

 Brand: HYPRO (USA)

 Filtration Rating: 2 μm (Absolute), β₂ ≥ 1000 (ISO 16889), Efficiency ≈ 99.9%

 Filter Media: Pleated Microglass Fiber (Flow direction: OutsidetoInside)

 Outer Diameter × Inner Diameter × Length: Approx. φ40.6 mm × φ20 mm × 254 mm (1.6" × 0.8" × 10")

 Operating Pressure: 16 MPa (160 bar); Max. 21 MPa

 Collapse Pressure: ≥ 2.1 MPa (21 bar)

 Operating Temperature: −20°C to +100°C (Nitrile/Fluorocarbon seals)

 Seal Material: NBR (Nitrile) or FKM (Fluorocarbon)

 Filtration Medium: Mineral hydraulic oil, emulsions, waterglycol, synthetic oils

 End Caps / Guard: Carbon Steel / Stainless Steel; V = Stainless Steel Sintered Mesh
