The FG-300 engine diesel fuel purification filter is primarily used for high-flow-rate cleaning of light petroleum products such as diesel, gasoline, and kerosene.

 Specifications

 Maximum Flow Rate  300 L/min

 Available Filter Cartridge Accuracy  2.5µm to 50µm, various filter materials available

 Housing Capacity  15 L

 Connection Size  F2" BSP or flange connection

 Maximum Operating Pressure  6 bar

 Replacement Pressure Difference  1.5 bar

Key Features and Configuration

 Multi-functional Filtration: Effectively removes solid particles; some filter models (such as water-absorbing types) can separate up to 93% of the water in fuel.

 Intuitive Maintenance Reminders: A differential pressure gauge is typically located on top of the filter, visually displaying the degree of clogging and indicating when replacement is needed.

 Easy Maintenance: A manual drain valve is located at the bottom of the housing for easy removal of settled impurities and moisture.

 High Durability: According to some specifications, its filter element is designed for a lifespan of 1 million liters of fuel. The housing is typically made of painted aluminum, offering excellent corrosion resistance.

 Model Subdivisions and Applications

The FG-300 itself is a filter housing assembly. The specific filtration accuracy depends on the filter element installed inside. Different suffixes correspond to different filtration accuracies and functions:

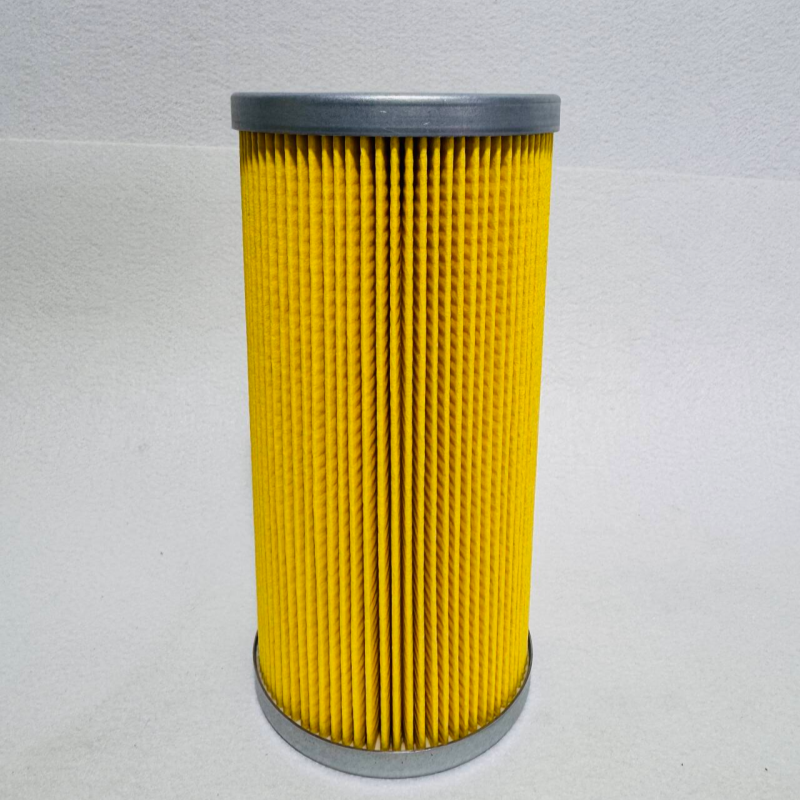

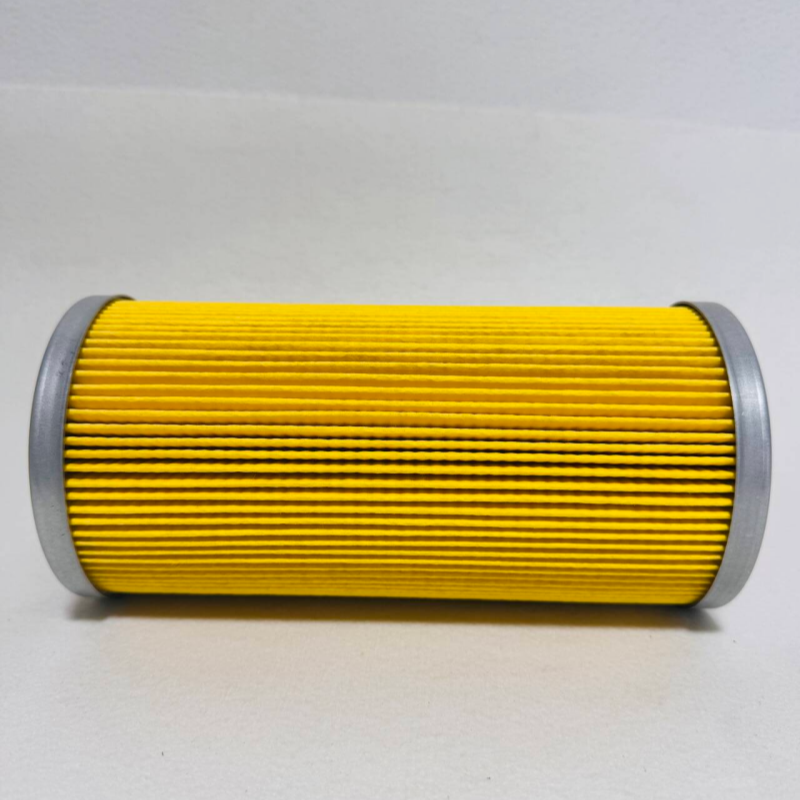

 FG-300/2.5: 2.5µm filtration accuracy, glass fiber filter element, used for high-efficiency particulate filtration.

 FG-300/3: 3µm filtration accuracy, absorbent filter paper, also has a water removal function.

 FG-300/5: 5µm filtration accuracy, absorbent filter paper.

 FG-300/15: 15µm filtration accuracy, absorbent filter paper.

 FG-300/50: Fiberglass filter element, glass fiber ... 50µm, impact filter (non-absorbent), typically used for primary filtration or biodiesel processing.
