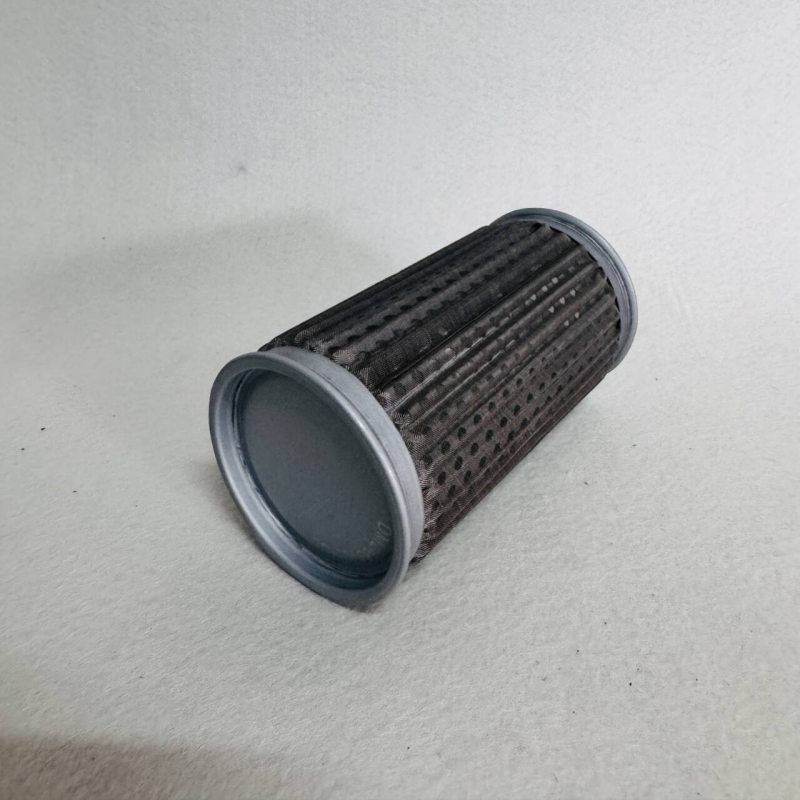

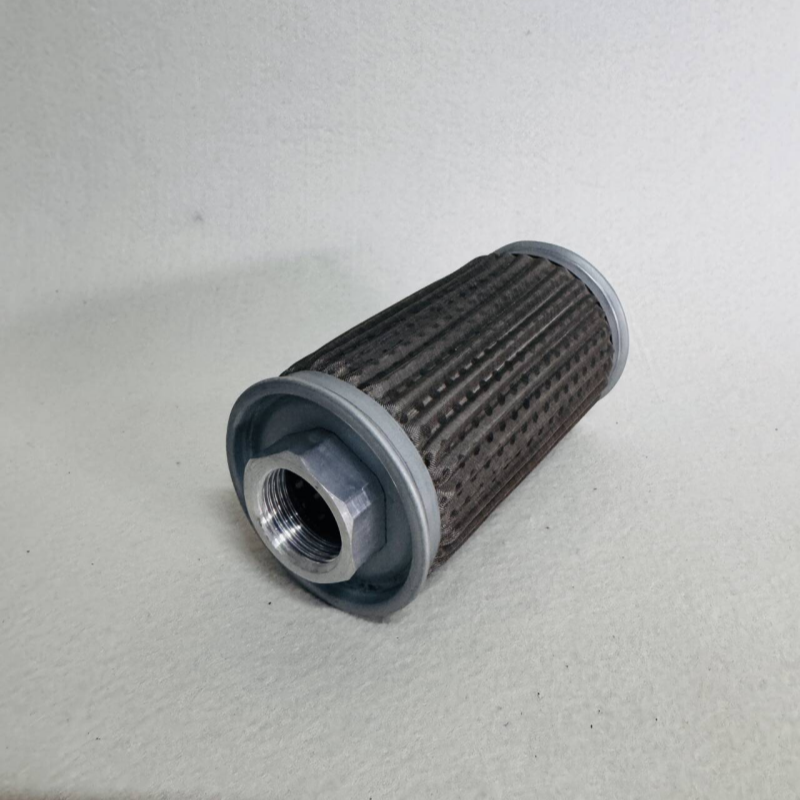

Oil filter elements FRE-48W and FRE-100W

The FRE-48W and FRE-100W oil suction filter elements are mainly used at the suction port of refrigeration compressors to filter dust, metal shavings, and other impurities from the gas entering the compressor, protecting the equipment for normal operation.

 Parameter Items  FRE-48W  FRE-100W

 Filter Media  Stainless Steel/Metal Mesh  Stainless Steel/Metal Mesh  Fiberglass

 Filtration Accuracy  250μm  250μm  Classified as coarse filtration, mainly used to intercept large particulate impurities.

 Outer Diameter (OD)  94mm  120mm  -

 Inner Diameter (ID)  70mm  90mm  -

 Height  140mm  166mm  -

 Operating Temperature  -50℃ ~ +100℃  -50℃ ~ +100℃  The general range is usually -30℃ to 120℃.   Working Medium  Oil and Refrigerant  Oil and Refrigerant  -
