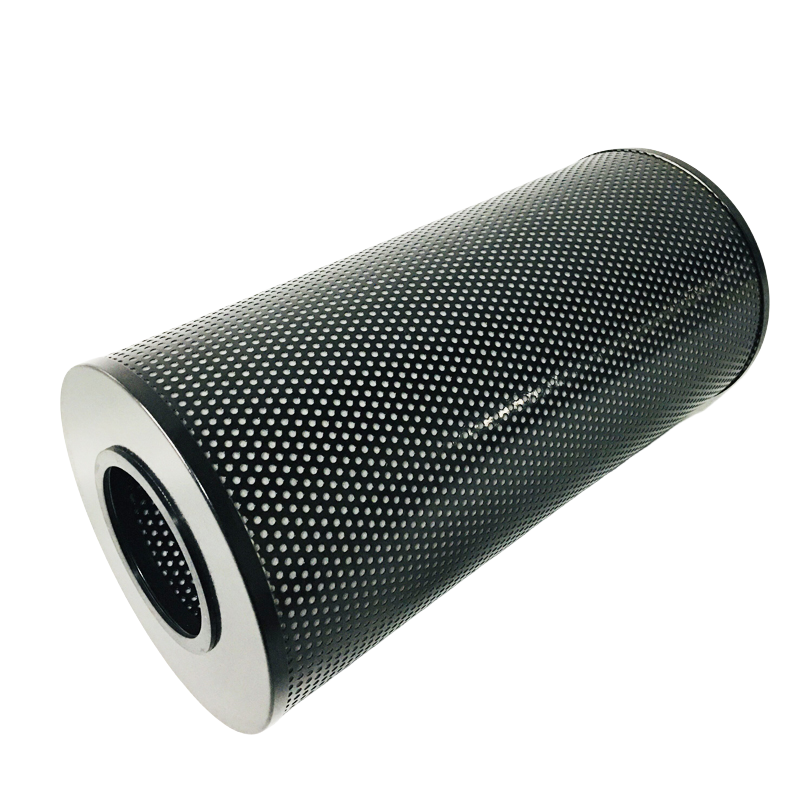

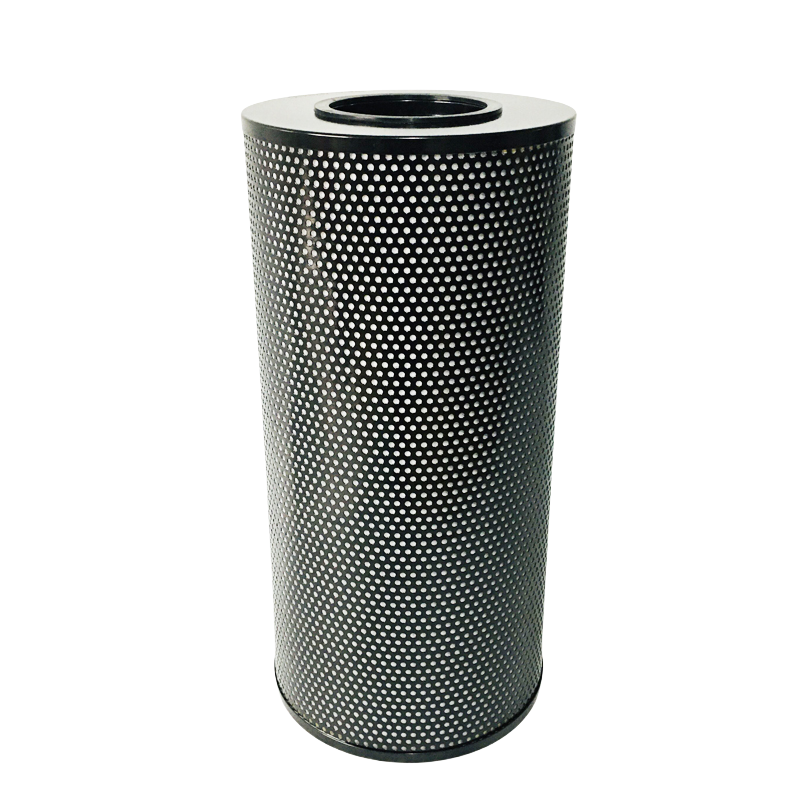

Model Number: 80.821.01572.001

- Core Function: Removes water (free water, emulsified water), sludge, and tiny solid particles from hydraulic oil, ensuring oil cleanliness and normal system operation.

 Working Principle:

Hydraulic oil flows from the inside out through the filter element, completing three steps: demulsification-agglomeration-separation:

1. Demulsification Layer: Breaks the oil-water emulsion state, separating the oil-in-water or water-in-oil structure.

2. Agglomeration Layer: Tiny water droplets adhere, move, and converge on the glass fiber surface, agglomerating into large droplets.

3. Gravity Settling: Large droplets settle in the collection tank at the bottom of the filter and are discharged through the drain valve.

4. Clean Oil: The dehydrated oil returns to the oil tank, while solid impurities are trapped inside the filter media.

---

 Product Features:

1. Multi-layer Composite Filter Paper: High filtration accuracy and large dirt-holding capacity.

2. Special Fiberglass Layer: Carefully designed fiberglass layer for excellent coalescence.

3. High Flow Density: Reduces the size of the fine filter, resulting in a compact structure.

4. Long Service Life: Large dirt-holding capacity; replacement cycle up to 6-12 months.

5. Complete Specifications: Meets the installation requirements of various oil filtration machines.

 Testing Standards:

Complies with 8 ISO international standards:

- ISO 2941 (Break Resistance)

- ISO 2942 (Structural Integrity)

- ISO 2943 (Material and Liquid Compatibility)

- ISO 3723 (End Load)

- ISO 3724 (Fatigue Characteristics)

- ISO 3968 (Differential Pressure Flow Characteristics)

- ISO 4572 (Multi-pass Method)

- ISO 16889 (Filtration Ratio/Dirty Holding Capacity)

---

 Application Areas:

- Petrochemical Industry: Separation and recovery of products and intermediates in oil refining and chemical production processes; purification of oilfield injection water.

- Metallurgical Industry: Filtration of hydraulic systems for rolling mills and continuous casting machines; oil purification for lubrication equipment.

Power Plants: Turbine oil purification; dehydration of EH fire-resistant oil.

General Industry: Oil filtration for power machinery in industries such as tunnel boring machines, mining, papermaking, petroleum, shipbuilding, chemicals, and textiles.
