GE-15K-FC-03 is a 0.3 micron element kit for Swagelok FC Series coalescing and particle gas filters, using an epoxy-bonded glass fiber sintered media. It is designed for online process analyzer and instrumentation gas filtration applications.
| Filter Type | FC Series coalescing / particle gas filter element |
|---|---|
| OEM Brand | Swagelok |
| Filter Media | Sintered glass fiber, epoxy binder |
| Filtration Rating | 0.3 µm |
| End Connections | 1/8 in, 1/4 in, and 6 mm end connections |
| Operating Temperature | -17 °C to 204 °C |
| Maximum Working Pressure | 16 bar (customizable for special requirements) |
| Housing Material | 316 stainless steel body, FKM (fluororubber) O-ring |
| Filtration Efficiency | Up to 99.99% particle removal |
| Status | Discontinued by Swagelok — aftermarket replacement available |
GE-15K-FC-03 elements are used in Swagelok FC Series filter housings for:
Please confirm your exact FC Series housing size and end connection before ordering.
| Brand | Part Number |
|---|---|
| Swagelok | GE-15K-FC-03 |
| DeMalong Filter (our replacement) | SS-FCE-GE-15K-FC-03 |
Cross-reference numbers are provided for identification purposes only. DeMalong Filter Inc. products are aftermarket replacements and are not affiliated with, sponsored by, or manufactured by Swagelok. All trademarks belong to their respective owners.
| Samples | Sample units available for testing and quality verification prior to bulk order |
|---|---|
| Customization | Alternate end connections and working pressure ratings available on request |
| Lead Time & MOQ | Varies by order quantity — submit an inquiry for a specific lead time and MOQ quote. |
.png)
.png)

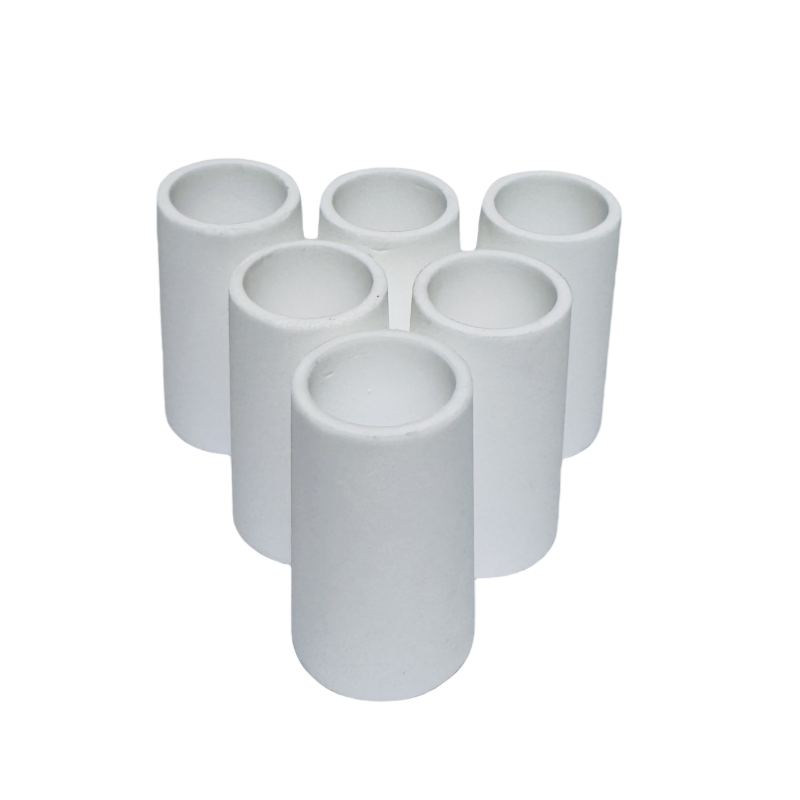

The following is the basic information about the "SS-FCE-GE-15K-FC-03" and "GE-15K-FC-03" glass fiber sintered filter elements:
Product basic information
- Model: SS-FCE-GE-15K-FC-03, GE-15K-FC-03.
- Brand: Swagelok.
- Series: FC series.
Technical specifications
- Filter accuracy: 0.3 micron.
- Connection form: 1/8 inch, 1/4 inch and 6 mm end connection.
- Operating temperature range: -17°C to 204°C.
- Working pressure: The maximum working pressure is 16 bar, which can be customized according to special requirements.
- Material: 316 stainless steel shell, fluororubber O-ring.
- Filter material: glass fiber sintered.
Performance Features
- Coagulation or particle filtration: Suitable for online process analyzers, can achieve condensation or particle filtration.
- High efficiency filtration: Particle filtration efficiency is as high as 99.99%.
- Easy to replace: The filter element replacement operation is simple.
- High temperature resistance: Suitable for high temperature environment.
Application Fields
- Gas filtration: Suitable for filtration of industrial gases, high purity gases, toxic gases, flammable and explosive and corrosive gases.
- Online process analysis: Designed for online process analyzers.
- Industrial liquid filtration: Can be used in food processing, petrochemical, pharmaceutical and other industries.
Other Information
- Filter Kit: Contains filter elements, gaskets, springs and other components.
- Cleaning and packaging: Cleaned and packaged according to Swagelok standards.
- Warranty: Swagelok products have a limited lifetime warranty.
