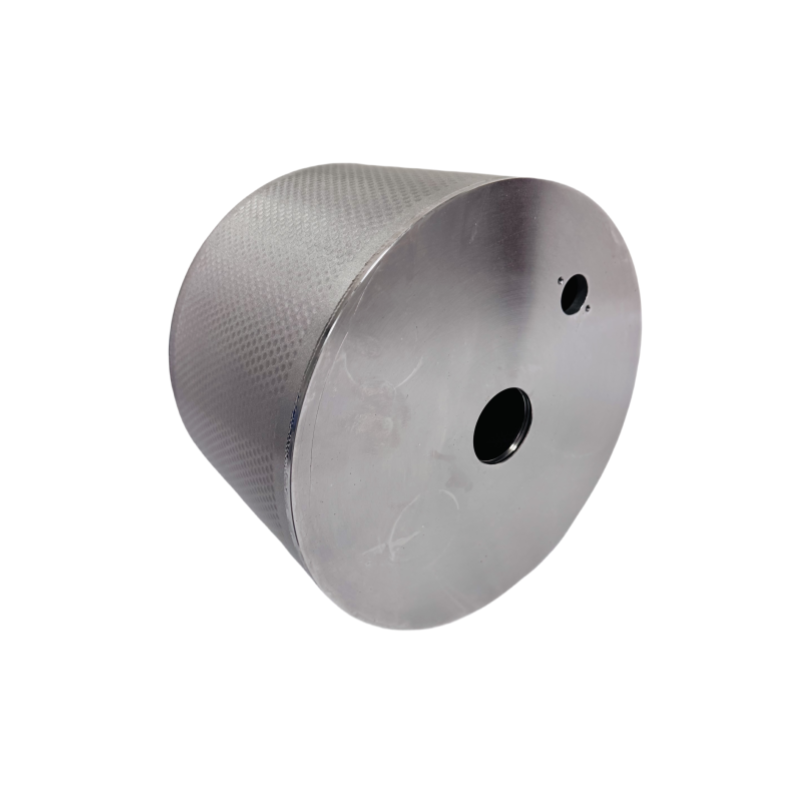

The following is basic information about the SD-1107 transformer dewatering filter element:

 Basic Information

- Model: SD-1107

- Application: Used in transformer oil systems to continuously filter impurities, moisture, and other contaminants from the oil, ensuring normal system operation.

- Application Areas: Widely used in the power, chemical, metallurgical, electronics, pharmaceutical, and environmental protection industries.

- Filter Material: Typically glass fiber, filter paper, etc.

- Filtration Refinement: Typically 10 microns.

- Operating Pressure: 16 bar, customizable upon request.

- Maximum Operating Temperature: 120°C.

- Operating Flow: 2-2600 L/min.

- Differential Pressure Alarm: 1 bar.

 Performance Features

- High-Efficiency Dewatering: Effectively removes moisture from oil, increasing the breakdown voltage of insulating oil and extending its service life. - Impurity Removal: Filters out free carbon, particulate matter, and other impurities from the oil, effectively controlling the contamination level of the working medium.

- Extended Service Life: Increases the service life and maintenance intervals of the on-load tap-changer.

- High Cost-Effectiveness: Offers a higher performance-price ratio than similar products.

 Working Principle

- High-precision filter media utilizes physical interception and adsorption to remove moisture and impurities from the oil.

- Special structural design, such as a three-layer structure (coarse impurity filtration, water filtration, and fine impurity filtration), enhances filtration efficiency.

 Advantages

- Higher Filtration Precision: High-precision filter media provides finer filter material and smaller pores.

- Greater Dust Holding Capacity: Composite filter media and a three-dimensional filter structure improve dust holding capacity and extend the service life of the filter element.

- Stronger Pressure Resistance: Even under high-pressure conditions, the material remains intact and the filter pore size remains unchanged, ensuring guaranteed filtration performance.
