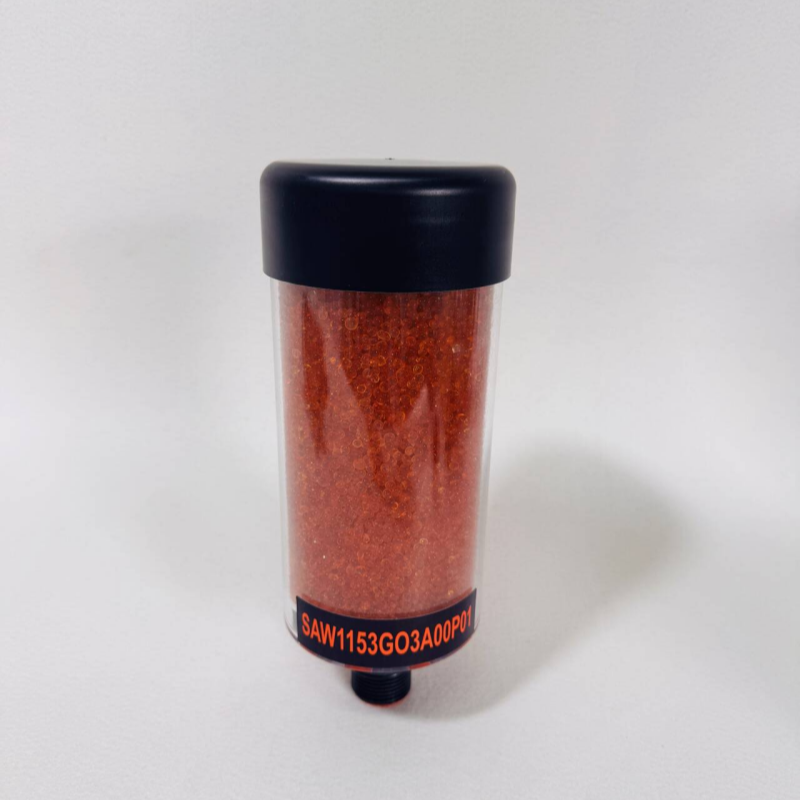

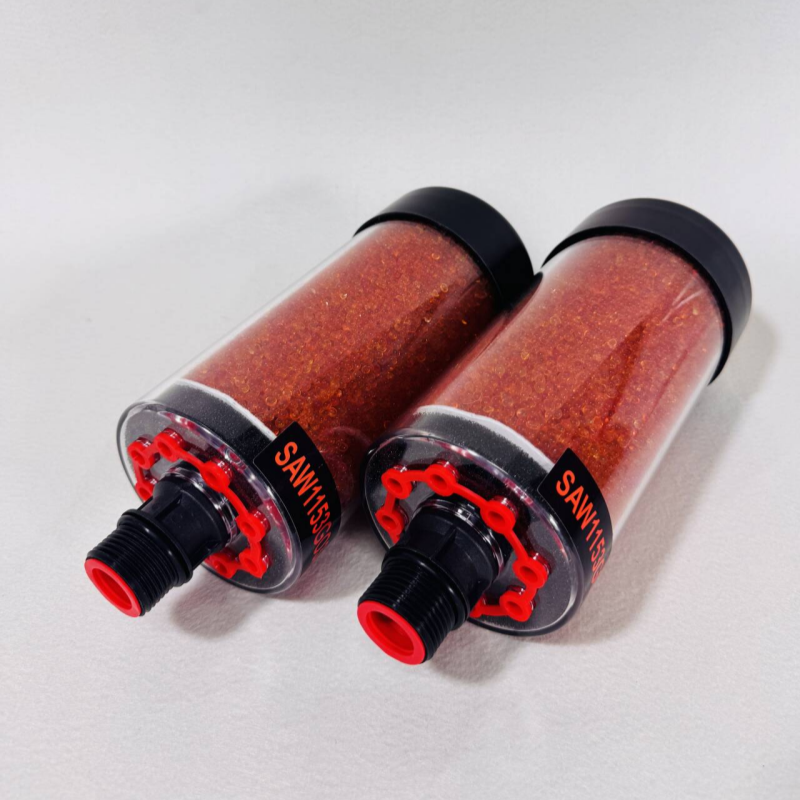

SAW1153G03A00P01 Silicone Respirator

 Basic Information on SAW1153G03A00P01 Silicone Breathing Apparatus

SAW1153G03A00P01 is a silicone breathing apparatus (also known as an air dryer filter) from the Italian brand MP FILTRI. It is primarily used to protect the quality of internal lubricating oil in equipment and prevent moisture and impurities from entering the system.

---

 1. Product Identification

- Model Number: SAW1153G03A00P01

- Brand: MP FILTRI (Italian Jade)

- Type: Silica Gel Breather / Air Dryer Filter

- Alias: Transmission Oil Dehumidifying Silica Gel Breather

---

 2. Working Principle and Function This breather is installed at the end of the pipe connecting equipment (such as transformer oil tanks, gearboxes, hydraulic oil tanks) to the atmosphere, providing bidirectional breathing protection:

- Dehumidification Function: Built-in color-changing silica gel acts as a desiccant, absorbing moisture from the air and preventing the oil inside the equipment from becoming damp and oxidizing.

- Dust Removal Function: Filters dust particles from the air, keeping the system clean.

- Pressure Balancing: Balances the pressure inside and outside the equipment through breathing action, adapting to thermal expansion and contraction caused by oil temperature changes.

Replacement Standard: When the silica gel discolors beyond 2/3 of its total volume, it needs to be replaced or regenerated promptly.

---

 3. Main Technical Parameters

 Filtration Accuracy  0.1~500μm (depending on filter media)<br>Glass fiber filter media: 1-70μm; Filter paper filter media: 5-40μm

 Rated Flow Rate  6~9100 L/min

 Working Pressure  ≤450 kg (≈45MPa)

 Working Temperature  -30~120℃

 Filter Media Material  Glass fiber, air filter paper, PP, polyester, etc.

---

 4. Main Application Areas

- Power Equipment: Transformer and reactor breathing protection

- Industrial Transmission: Gearbox dehumidification in smelters, steel mills, and cement plants

- Hydraulic Systems: Hydraulic oil stations and oil storage tank breathing filtration

- Compressed Air: Air compressor and compressor intake protection

- Others: Ships, tunnel boring machines, construction machinery, petrochemical equipment, etc.

---

 5. Product Features

- High-Efficiency Dehumidification: Utilizes high-quality color-changing silica gel for significant moisture absorption; status can be monitored via color changes.

- Reliable Structure: Elastic polycarbonate-based plastic shell, bidirectional controllable airflow, multi-stage filtration process.

- Strong Environmental Adaptability: Wide temperature range, suitable for harsh industrial environments.

- Maintenance-Free Design: Single-use, easy replacement.

- Significant Protective Effect: Effectively extends lubricant life and improves equipment reliability.
