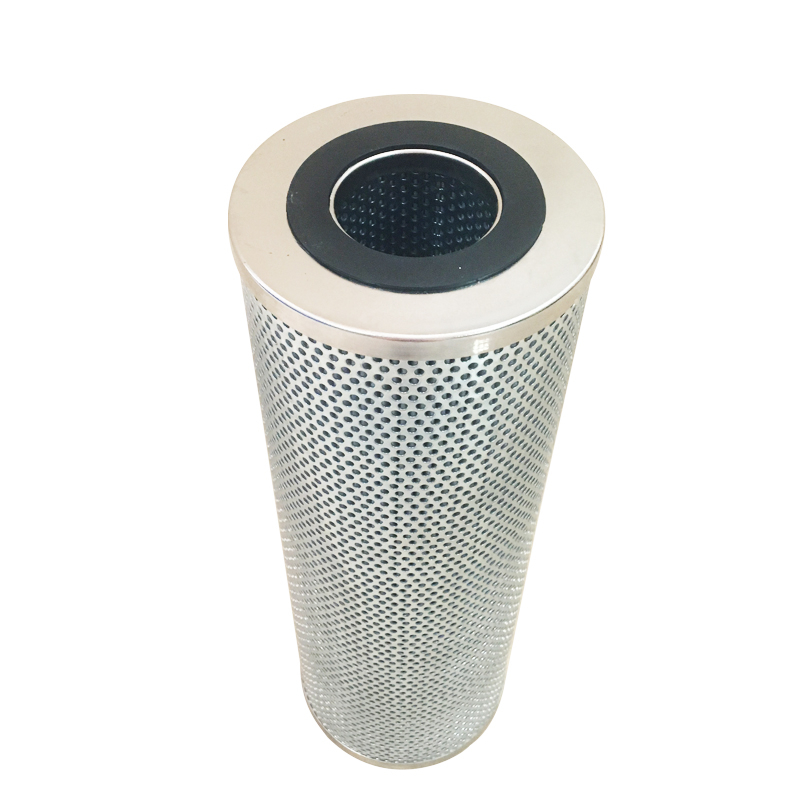

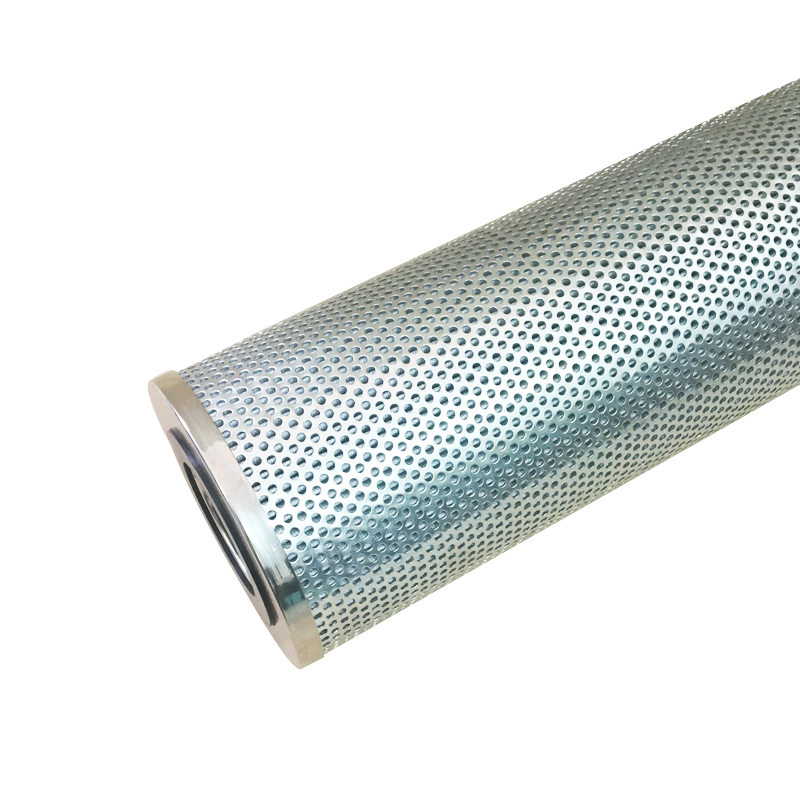

The SAB163H4P,X450 SBXX12-10MIC is a hydraulic oil filter element designed for four-roll single-stand hot rolling mills; it is commonly utilized in the hydraulic systems of large-scale industrial equipment, such as rolling mills and continuous casting machines, within steelworks. The following is a summary of its basic parameters and features:

 Product Name  4-Roll Single-Stand Hot Rolling Mill Oil Filter Element / Hydraulic Oil Filter Element

 Primary Application  Used within hydraulic oil systems to continuously filter out contaminants—such as impurities and moisture—from the oil, ensuring the normal operation of the system.

 Applicable Industries  Steel mills (rolling mills, continuous casting machines), power plants, mining, tunneling (shield machines), papermaking, petroleum, marine, chemical, textile, and various power machinery industries, etc.

 Filtration Media  Hydraulic oil, lubricating oil, gear oil, circulating cooling oil, etc.

 Filter Material  Glass fiber, metal mesh, filter paper, sintered felt, sintered mesh, sintered powder, polypropylene, etc. (Customizable).

 Filtration Precision  Glass fiber media: 1–70 μm; Metal mesh media: 3–400 μm; Filter paper media: 5–40 μm.

 Rated Flow Rate  6 – 9100 L/min

 Max. Working Pressure  ≤ 450 kg (approx. 45 MPa); Note: Some suppliers list 16 bar (approx. 1.6 MPa)—please verify this specification during procurement.

 Working Temperature  -30 – 120 ℃

 Differential Pressure  Minimum 0.2 MPa; Differential Pressure Alarm: 1 bar / 3 bar / 3.5 bar (Optional).

 Seals  Nitrile rubber (NBR), Fluororubber (FKM) (Customizable).

Product Features

- High Dirt-Holding Capacity: Utilizes high-quality imported filter media; the mass of particulate contaminants that can be retained per unit area of ​​filter material is high, resulting in a long service life.

- Stable Filtration Precision: Employs advanced processing techniques to minimize damage to the filter media caused by mechanical forces during the pleating process, thereby ensuring stable and uniform filtration precision for the filter element.

- High Structural Integrity: Has successfully passed multiple international standard tests, confirming the absence of any structural defects that could compromise the assessment of its filtration precision.

- Rigorous Factory Inspection: We maintain a comprehensive and strict inspection process covering raw materials, semi-finished products, and finished goods; all outgoing products undergo 100% full inspection.
