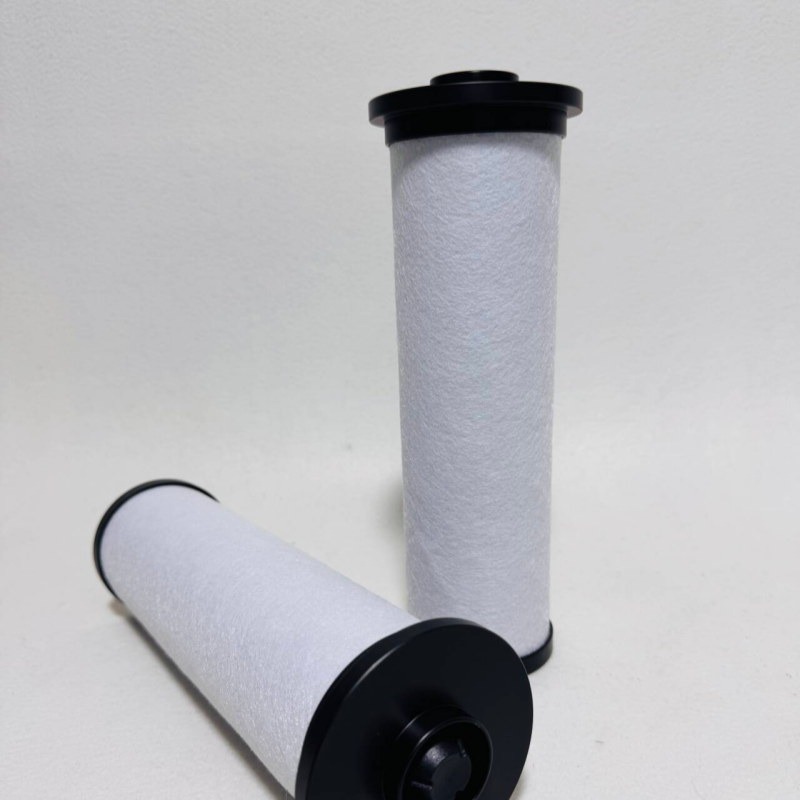

S 08323PR-1335 Precision Filter Cartridge

- Model Number: S 08323PR-1335

- Product Type: Precision Filter Element for Adsorption Dryer

- Core Function: Removes water vapor, oil mist, oil vapor, hydrocarbon vapor, and solid particles as small as 0.01μm from compressed air in air compressors or dryers.

 Filtration Accuracy  0.01-500 μm

 Operating Temperature  -30°C to +115°C

 Maximum Operating Pressure  420 kg

 Pressure Difference  Minimum 0.2 MPa  May refer to initial pressure difference or bypass valve opening pressure, needs confirmation

 Filter Media Material  Glass fiber, metal mesh, filter paper, sintered felt, sintered mesh, powder sintering, polypropylene  Glass fiber filter media is suitable for high-precision oil removal

---

## Product Features

1. Ultra-precision filtration: Intercepts particles as small as 0.01 microns, ensuring compressed air cleanliness.

2. Composite dirt-holding structure: Multi-layer filter media combination, simultaneously removing water, oil, dust, and other impurities.

3. Wide operating temperature range: -30~115℃, adaptable to various industrial environments.

4. Standard compatibility: Typically conforms to international filter standards such as ISO 2941/2942/2943.

---

## Application areas:

- Adsorption dryer: As a post-precision filter, protecting the desiccant from oil contamination.

- Air compressor system: Post-treatment oil removal and filtration for screw/centrifugal air compressors.

- Industrial gas purification: Processes with high compressed air quality requirements, such as spraying, bottle blowing, and powder conveying.
