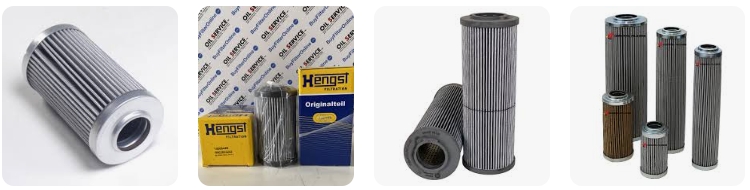

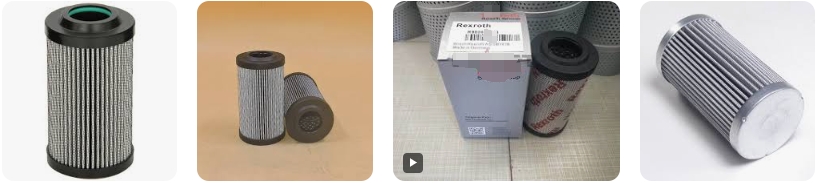

R902603243 is a Bosch Rexroth micro-glass hydraulic filter element, cartridge type, without bypass valve, used in Rexroth in-line and manifold-mounted filter housings.
Dimensional Drawing
Schematic reference drawing only. For a to-scale dimensional CAD drawing or a physical sample, please contact us for a quote.
Technical Specifications
Filter Type
Cartridge-type hydraulic filter element, without bypass valve
OEM Brand
Bosch Rexroth
Filter Media
Micro-glass
Filtration Rating
20 µm (absolute)
Inner Diameter
32 mm / 1.26 in
Outer Diameter
70.1 mm / 2.76 in
Overall Height
127 mm / 5.00 in
Weight
~0.2 kg (200 g)
Rexroth Type Code
62.0125K H20XL-J00-0-V
Test Standards
ISO 16889 (multi-pass efficiency & dirt capacity), ISO 2941 (collapse pressure), ISO 2942 (fabrication integrity), ISO 3968 (pressure drop), ISO 3724 (flow fatigue)
Compatible Equipment & Applications
R902603243 fits Bosch Rexroth in-line hydraulic filter housings, used in:
Construction machinery hydraulic systems
Metallurgy, petroleum, and industrial process equipment
Electronics, pharmaceutical, and textile machinery hydraulic circuits
Please confirm your exact housing model before ordering.
OEM & Cross-Reference Numbers
Brand
Part Number
Bosch Rexroth
R902603243
Bosch Rexroth (internal type code)
62.0125K H20XL-J00-0-V
DeMalong Filter (our replacement)
Contact us for our part number
Cross-reference numbers are provided for identification purposes only. DeMalong Filter Inc. products are aftermarket replacements and are not affiliated with, sponsored by, or manufactured by Bosch Rexroth. All trademarks belong to their respective owners.
Lead Time, MOQ, Samples & Customization
Samples
Sample units available for testing and quality verification prior to bulk order
Customization
Alternate micron ratings and media available within the Rexroth-compatible product range
Packaging
Individual box with DeMalong brand and part number, or neutral / customer-branded packaging on request
Lead Time & MOQ
Varies by order quantity and customization — submit an inquiry for a specific lead time and MOQ quote.
The R902603243 is a hydraulic oil filter element designed for use in Bosch Rexroth hydraulic systems. It is engineered to remove contaminants and ensure the smooth operation of hydraulic components. Here are the detailed specifications and features:
Type: Hydraulic oil filter element.
Brand: Bosch Rexroth.
Material: Fiberglass material.
Filter Material: Synthetic.
Sealing Material: Nitrile rubber.
Filtering Precision: Ranges from 1μm to 25μm.
Operating Temperature: -20°C to +100°C.
Flow Direction: Outside to Inside.
Collapse Stability: Up to 30 bar.
Dimensions:
Outer Diameter: 69 mm.
Inner Diameter: 34.2 mm.
Length: 127.0 mm.
Applicable Industries and Equipment:
Widely used in construction machinery, metallurgy, petroleum, electronics, pharmaceuticals, textiles, and other industries that require hydraulic filtration.
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
