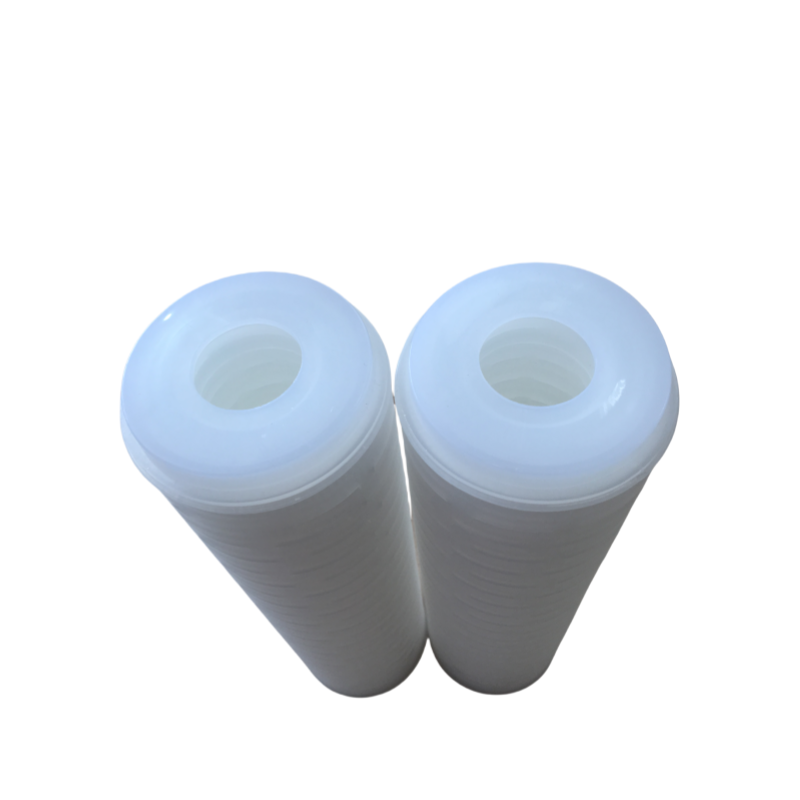

The following is the basic information about "PMP100-10AV-DO PFT0.45-4-US PP folded water filter element":

 Basic parameters

- Filtration accuracy: 0.45 microns.

- Length: 10 inches.

- Outer diameter: 69 mm.

- Inner diameter: 33 mm.

- Effective filtration area: 0.65 square meters.

- Maximum continuous working pressure: 0.42 MPa (25°C).

- Maximum working temperature: 88°C (0.28 MPa).

- Interface type: 222 plug-in type.

 Materials and structure

- Filter media: 100% polypropylene melt-blown microfiber.

- Middle column and outer cylinder material: high-strength polypropylene.

- Seal ring material: usually silicone rubber, EPDM rubber, nitrile rubber, etc.

- Structural features: The folding design is adopted, the membrane filtration area is large, the dirt holding capacity is large, the pressure difference is low, and the service life is long.

 Performance characteristics

- High filtration efficiency: High filtration accuracy, uniform pore size, can effectively remove tiny particles and impurities.

- Low pressure difference: The folding design increases the filtration area and reduces the pressure drop.

- Strong dirt holding capacity: The deep filtration structure can accommodate more impurities and extend the service life.

- Good chemical compatibility: Polypropylene material has good chemical stability and is suitable for filtering strong acids, strong alkalis and organic solvents.

- Pollution-free: The whole adopts hot melt welding technology, does not contain any adhesives, and has no secondary pollution.

 Application areas

- Water treatment: Suitable for pre-filtration of reverse osmosis water system and pre-filtration of deionized water system.

- Pharmaceutical industry: Used for filtration of liquid medicine and biological products.

- Food and beverage: Used for filtration of mineral water, beverages, and alcohol.

- Chemical industry: Used for filtration of organic solvents and inks.

- Petroleum Industry: Used for oil field water injection filtration.
