Hilco PL718-05-CN Replacement Filter Cartridge | Cross Reference
Hydrafil Replacement Filter Element for Hilco PL718-05-CN

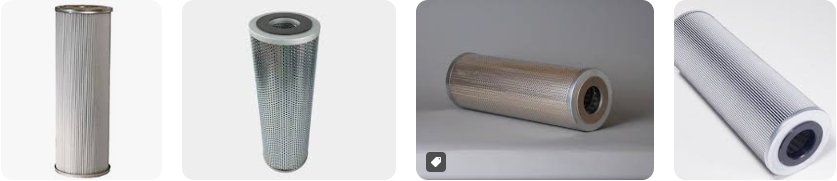

Hilco PL718-05-CN Replacement Filter Cartridge
PL718-05-CN is a Hilliard/Hilco pleated cellulose filter cartridge from the PL718 series, using a three-layer Microgard™ construction (outer and inner cellulose layers with an intermediate glass-media layer). DeMalong Filter manufactures a fully equivalent aftermarket replacement.
Specifications
| Filter Type |
Pleated paper filter cartridge, double open end |
| OEM Manufacturer / Supplier |
Hilco / Hilliard |
| Filter Media |
Three-layer Microgard™ cellulose (outer/inner) with intermediate glass-fiber microfiltration layer |
| Micron Rating |
38 µm at Beta 75 (98.7%); 40 µm at Beta 200 (99.5%) |
| Outer Diameter |
6-1/4 in (159 mm) |
| Inner Diameter |
2-9/16 in (65 mm) |
| Overall Length |
18 in (457 mm) |
| Filtration Area |
~4,183 sq in |
| Maximum Temperature |
248–250 °F (120–121 °C) |
| Collapse Pressure |
58 PSID |
| Seal |
Cellulose gasket |
OEM & Equivalent / Cross Reference Part Numbers
| Brand |
Part Number |
| Hilco / Hilliard |
PL718-05-CN |
| Hilco / Hilliard (related coarser-rating variant) |
PL718-10-CN |
| Hilco / Hilliard (ALS end-cap variant) |
PL718-05-CN-ALS |
| DeMalong Filter (our equivalent replacement) |
Contact us for our part number |
Cross reference numbers are for identification purposes only. DeMalong Filter Inc. products are aftermarket replacements, not affiliated with, sponsored by, or manufactured by Hilco/Hilliard.
Application Equipment & Industries
- Hydraulic fluid, diesel, and machining fluid filtration systems
- Lubricating oil, coolant, and process fluid filtration
- Turbine and compressor lube oil systems
- Oil & gas, power generation, and industrial manufacturing industries
Quality & Testing
DeMalong Filter elements are manufactured under ISO 9001 quality management and tested to ISO 16889 (multi-pass efficiency & dirt capacity) and related ISO filtration standards.
Packaging, Lead Time & Customization
| Packaging |
Individual carton with DeMalong brand and part number, or neutral/customer-branded packaging on request |
| Samples |
Available for testing and fitment verification before bulk order |
| Customization |
Alternate micron ratings (e.g. PL718-10-CN) and end-cap configurations available on request |
| Lead Time & MOQ |
Varies by order quantity — contact us for a specific lead time and MOQ quote |
Frequently Asked Questions
- What fluids can this cartridge filter?
- Hydraulic fluid, diesel, machining fluids, lubricating oil, coolants, gasoline, process fluids, turbine and compressor lube oils, synthetic lubricants, and similar fluids.
- What is the filtration rating?
- 38 microns at Beta 75 (98.7% efficiency) and 40 microns at Beta 200 (99.5% efficiency).
- What are the exact dimensions?
- 2-9/16 in ID x 6-1/4 in OD x 18 in overall length (65 x 159 x 457 mm).
- Is your cartridge a genuine Hilco/Hilliard part?
- No, it is an aftermarket equivalent, dimensionally and functionally interchangeable with the OEM part, tested per ISO 16889 multi-pass standards.
- What is the maximum operating temperature?
- 248–250 °F (120–121 °C).
The PL718-05-CN filter element is a high-quality hydraulic oil filter designed for use in various industrial applications. It is engineered to provide efficient filtration and optimal performance in hydraulic systems. Here are the detailed specifications and information about this filter:
Filter Model: PL718-05-CN
Description: Hydraulic oil filter element
Material: Fiberglass, stainless steel mesh
Filtration Rating: 5 microns
Dimensions:
- Outer Diameter: 155 mm
- Inner Diameter: 66.8 mm
- Length: 454 mm
- End Caps: Galvanized steel
- Configuration: Single open end
- Collapse Pressure Rating: 100 PSI
- Maximum Operating Temperature: 121°C (250°F)
- Flow Direction: Outside to inside
- Seal Material: Viton or NBR (Nitrile Butadiene Rubber)
Key Features:
- High Filtration Efficiency: The filter media is made of microglass fiber, providing high dirt-holding capacity and efficient contaminant removal.
- Durable Construction: The filter is constructed with a robust pleated structure supported by an epoxy-coated steel screen, ensuring it can withstand high cyclic and pulse flow fatigue.
- Fluid Compatibility: Compatible with all petroleum oils, water glycols, oil/water emulsions, high water base fluids, and synthetic fluids compatible with Viton or NBR seals.
Applications: The PL718-05-CN filter element is used in a variety of hydraulic systems, including:
- Hydraulic engineering systems
- Mining and metallurgical equipment
- Construction and engineering machinery
- Machine tools
- Agricultural machinery
- Plastic machinery
- Petrochemical industry
- Ship and marine engineering equipment
Similar Models: For customers looking for alternative or additional filter options, here are some similar models that may also be suitable:
- PL718-05-CNALS
- PL718-05-CNB
- PL718-05-CNN
- PL718-05-CRN
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
