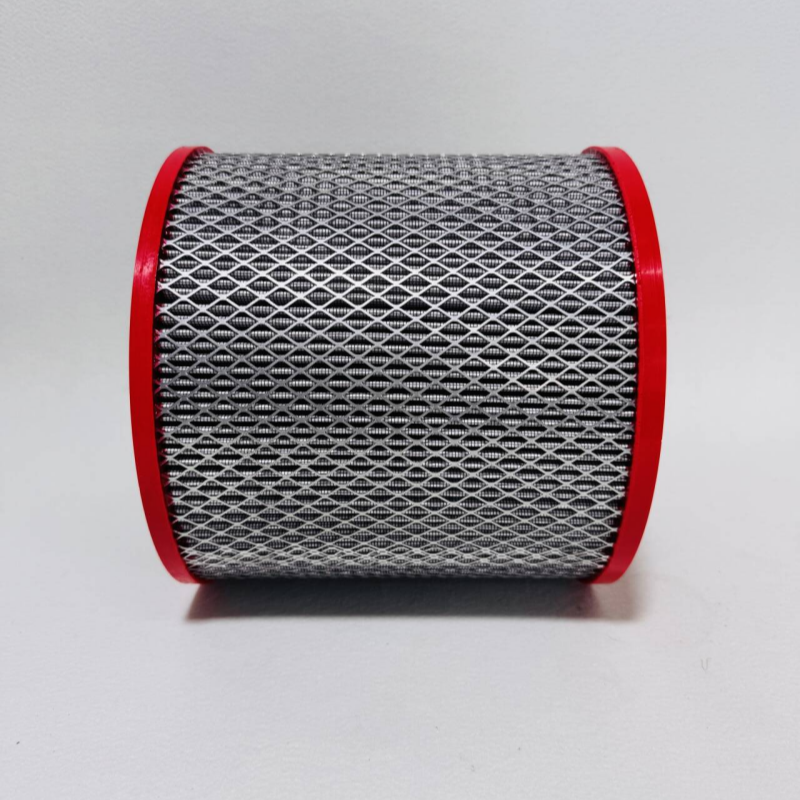

P581575Marine Engine Fuel Oil Filter Element

The following is basic information about the P581575 marine engine fuel filter:

 Technical Specifications

- Filter Rating: 20 microns.

- Operating Pressure Range: 21-210 bar.

- Filter Media: High-quality fiberglass material.

- Outer Diameter: 5.98 inches (152 mm).

- Length: 13.54 inches (344 mm).

- Media Type: Cellulose.

- Operating Temperature: Not specified, but fiberglass filter media can generally withstand higher temperatures.

- Maximum Operating Temperature: Not specified, but fiberglass filter media can generally withstand higher temperatures.

- Operating Flow Rate: Not specified, but generally suitable for hydraulic filtration systems.

 Performance Features

- High-Efficiency Filtration: Effectively removes impurities from fuel, with a filtration efficiency of up to 99%.

- High Durability: Made of high-quality materials, ensuring a long service life.

- Customization: Custom sizes available upon request. Quality Assurance: This product undergoes rigorous testing and comes with a one-year warranty.

 Applications

- Marine Engine: For use in marine engine fuel systems, ensuring fuel cleanliness and extending engine life.

- Hydraulic System: Suitable for use in hydraulic oil systems, continuously filtering impurities, water, and other contaminants from the oil.

 Testing Standards

- ISO 2941: Test method for rupture resistance of filter elements.

- ISO 2942: Test method for structural integrity of hydraulic filter elements.

- ISO 2943: Test method for compatibility of hydraulic filter elements with fluids.

- ISO 3723: End-to-end compliance test for filter elements.

- ISO 3724: Determination of fatigue properties of filter elements.

- ISO 3968: Differential pressure and flow characteristics of filter elements.

- ISO 4572: Determination of filtration properties of filter elements - Multiple-pass method.

- ISO 16889: Filtration ratio/dirt holding capacity.
