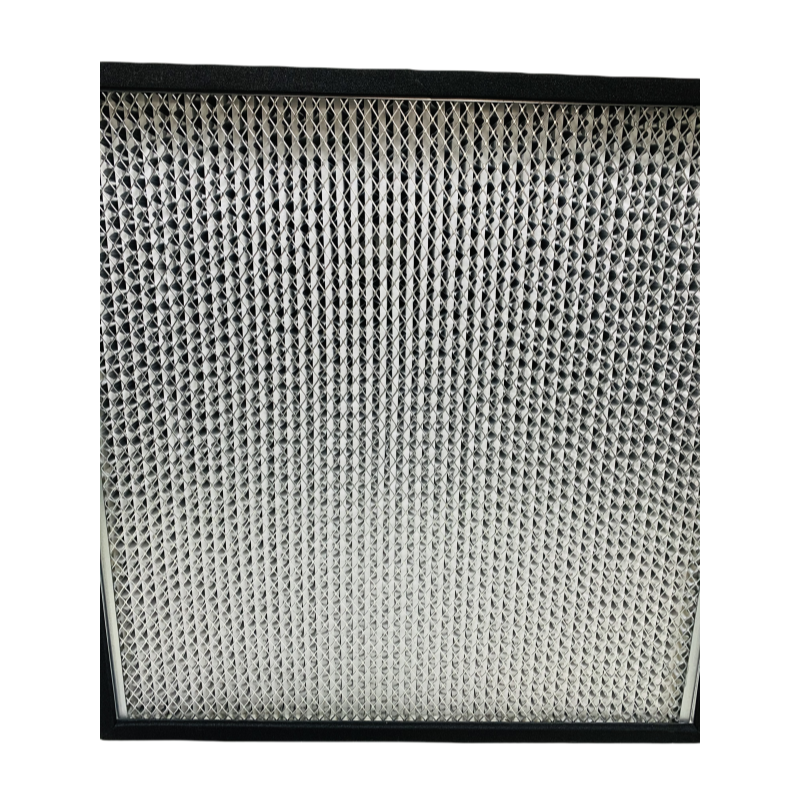

The following is basic information about the P034885-016-123 plate and frame filter element:

 Basic Information

- Model: P034885-016-123

- Application: Primarily used for steam turbine dust removal.

- Working Pressure: Maximum operating pressure is 420 kg.

- Working Temperature: -30°C to 120°C.

- Filtration Refinement: 1 μm.

- Filter Area: 10 m2.

- Inlet and Outlet Diameter: 120 mm.

- Raw Water Pressure: Not specified.

- Flow Range: 6 to 9,100 L/min.

- Differential Pressure Alarm: Minimum 0.2 MPa.

- Filter Media: Glass fiber, metal mesh, filter paper, sintered felt, sintered mesh, powder sintered.

- Seal Materials: Nitrile rubber, fluororubber

 Performance Features

- High-Efficiency Filtration: High filtration efficiency effectively removes dust and impurities from the air.

- Modular Design: The filter plate and filter frame can be replaced separately for easy maintenance.

- High Adaptability: Suitable for high-concentration dust or high-temperature, high-humidity environments.

- Diverse Cleaning Methods: Including manual vibration and pulse backflushing.

- Large Dust Capacity: The filter frame design increases dust storage space, extending the cleaning cycle.

 Applications

- Industrial Dust Removal: Widely used for fume treatment in cement plants, steel mills, and foundries.

- Chemical Industry: Catalyst recovery and powder raw material filtration.

- Food and Pharmaceutical: Dust collection to ensure a clean production environment.

- Other: Woodworking and welding fume control.

 Testing Standards

- ISO 2941: Test method for filter element rupture resistance.

- ISO 2942: Test method for structural integrity of hydraulic filter elements. - ISO 2943: Test method for compatibility of hydraulic filter element materials with fluids.

- ISO 3723: End-to-end compliance test for filter elements.

- ISO 3724: Determination of fatigue properties of filter elements.

- ISO 3968: Differential pressure flow characteristics of filter elements.

- ISO 4572: Determination of filtration properties of filter elements by the multiple-pass method.
