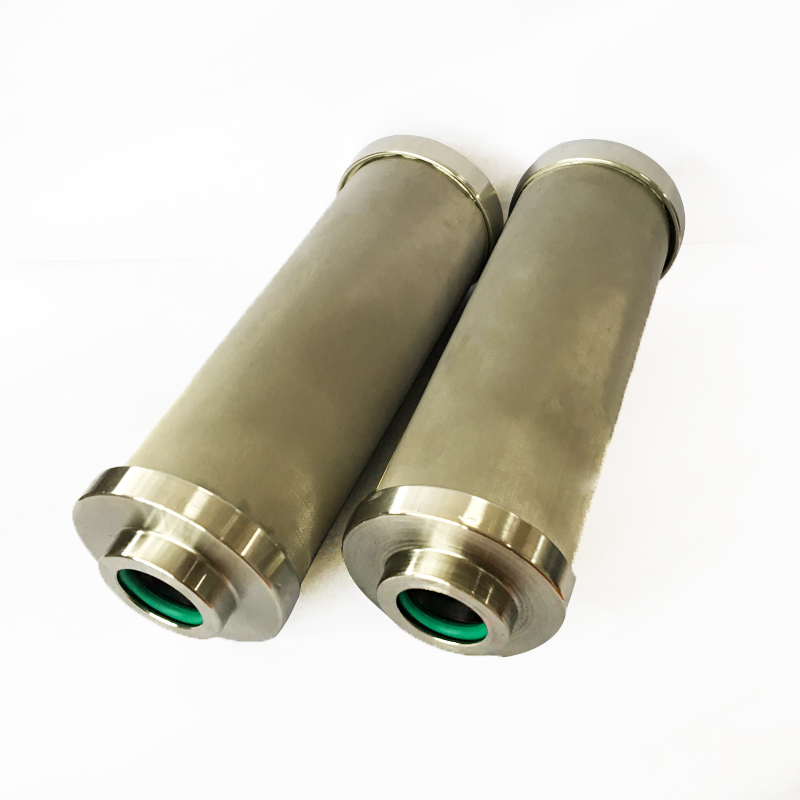

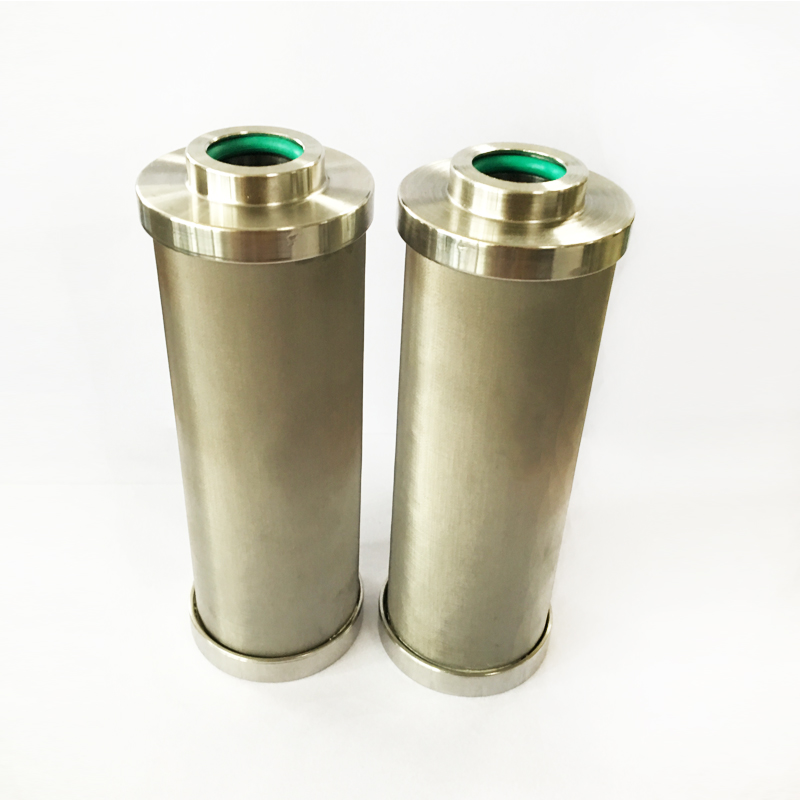

This is a 316L stainless steel fiber sintered felt, five-layer depth filtration, pleated high-pressure filter cartridge, featuring high precision, high dirt-holding capacity, and reusable cleaning and regeneration, commonly used for precision filtration of industrial gases/liquids.

 I. Model Code Explanation

- INR: Series Code (Industrial Nickel Resin)

- S: Filter Media Type (Sintered Felt)

- 00085: Filtration Accuracy 85 μm (Nominal)

- ST: Material 316L Stainless Steel (Standard 316L)

- NPG: Structure (Non-Pleated / Folded, Glass Support)

- V: Interface/End Cap (V-type, Standard 226/226 or Threaded)

 II. Core Specifications

- Filter Media: 316L Stainless Steel Fiber Sintered Felt (Five-layer structure: Protection/Filtration/Separation/Support/Reinforcement)

- Accuracy: 85 μm (Absolute accuracy, 99.9% retention)

- Dimensions (mm): Outer Diameter 62, Inner Diameter 32, Length 250 (Standard 10 inches)

- Structure: Folded (corrugated), filtration area ≈ 3–5 times that of a standard cylindrical filter

- Porosity: ≥85%, low pressure drop, high flow rate

- Operating Temperature: -50℃ to +450℃ (continuous), short-term up to 600℃

- Pressure/Pressure Difference: Maximum operating pressure 30 MPa; maximum permissible pressure difference 3.0 MPa

- Connection: Standard 226/222 or M36×1.5 thread (V-type end cap)

- End Cap/Seal: 316L metal end cap, Viton (fluororubber) seal, oil/solvent resistant

 III. Key Performance Characteristics

1. High Temperature and High Pressure Resistance: Made of 316L material, capable of long-term stable operation under harsh conditions of 450℃, 30MPa.

2. High Dirt Holding Capacity and Long Lifespan: Folded + five-layer depth structure, large dirt holding capacity, lifespan approximately 4000–8000 hours.

3. Washable and Regenerable: Supports backwashing, ultrasonic cleaning, and chemical cleaning, with a flux recovery rate >90%, allowing for repeated use.

4. Corrosion Resistant and Fiber-Free: Integral sintering, no fiber shedding, resistant to acid, alkali, organic solvents, and water vapor corrosion.

5. Low Pressure Drop and High Flow Rate: High porosity, initial pressure drop ≤ 1.5 kPa (@rated flow rate).

 IV. Typical Applications

- Compressed Air/Industrial Gases: Removal of particles, oil mist, and water vapor (air compressors, nitrogen, carbon dioxide)

- High-Temperature Liquids/Meltes: Filtration of high-temperature viscous media in chemical, synthetic fiber, and polyester production

- Hydraulic/Lubrication Systems: Precision filtration in high-pressure pump stations, gearboxes, and servo systems

- Steam/High-Temperature Flue Gas: Purification of exhaust gas from power plants, steel mills, and boilers.
