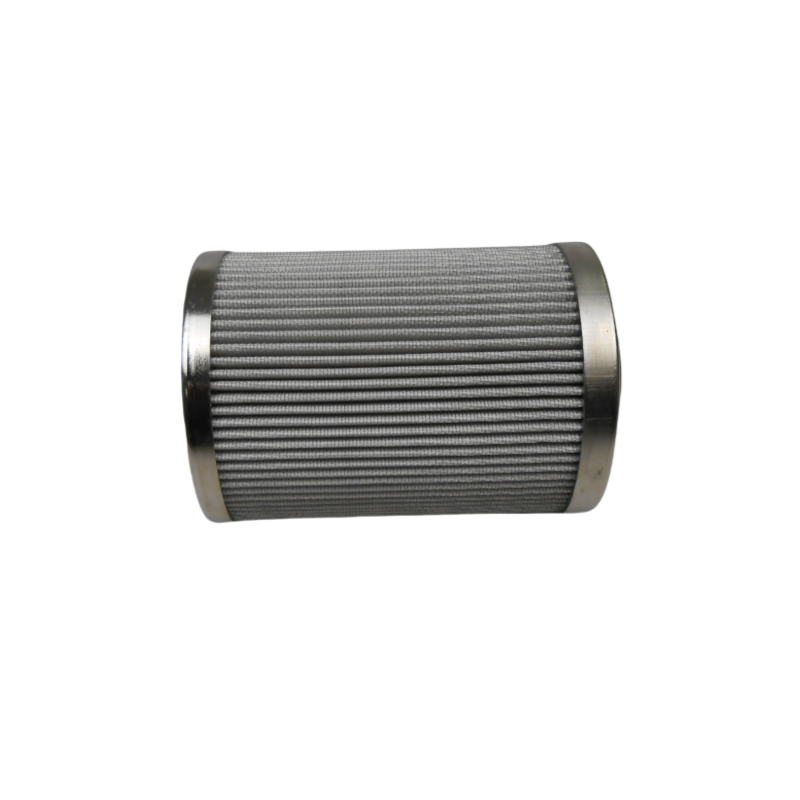

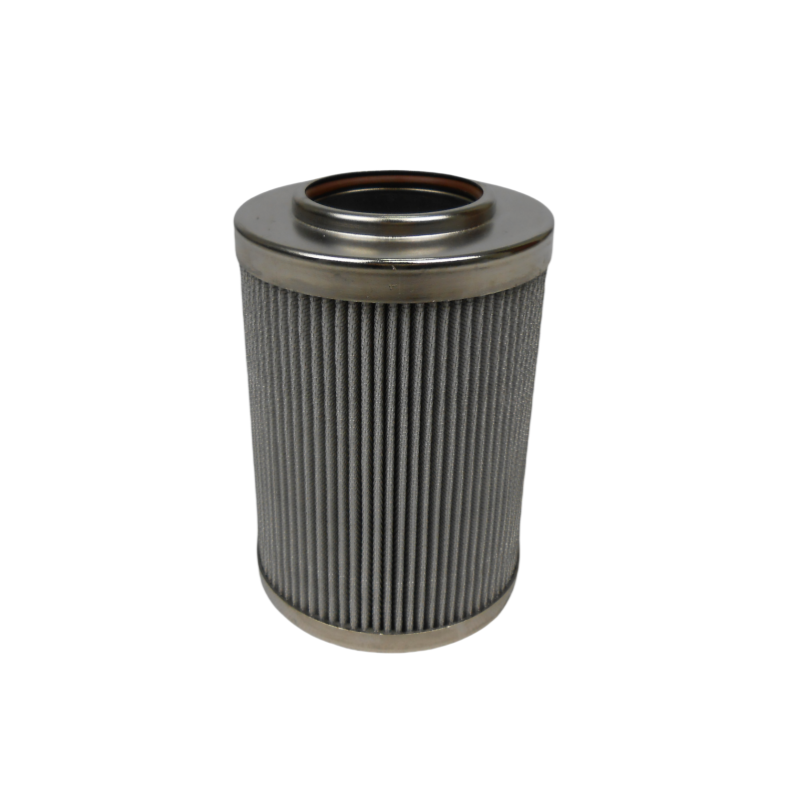

HY-D501.5.10ES Hydraulic Filter Cartridge

The following is the basic information of HY-D501.5.10ES hydraulic filter element:

 Product specifications

- Filtration accuracy: 1-50μm.

- Working pressure: 16bar, some products can reach 21bar.

- Maximum working temperature: 120℃, some products can reach 180℃.

- Working flow: 2-2600L/min.

- Pressure difference alarm: 1bar, 3bar, 3.5bar.

- Sealing material: Nitrile rubber, fluororubber.

 Filter material and structure

- Filter material: Usually glass fiber or stainless steel mesh is used, and some products use ultra-fine fibers and resins with gradient pore size structure.

- Support structure: The support tube design of rolled round welded pipe is adopted to ensure ultra-roundness, ultra-thinness and ultra-lightness and ultra-high pressure resistance.

 Performance characteristics

- High porosity and excellent permeability: small pressure loss and large flow rate.

- Large dirt holding capacity: high filtration accuracy and long replacement cycle.

- Heat and corrosion resistance: stable performance under high temperature and corrosive environment.

- High strength: even under strong liquid flushing and vibration, the fiber will not fall off.

- Washable and regenerable: some filter elements can be used multiple times.

 Application fields

Widely used in the following industries:

- Hydraulic system: used for filtration of hydraulic systems of rolling mills and continuous casting machines.

- Petrochemical industry: separation and recovery of products and intermediate products in oil refining and chemical production processes.

- Mechanical processing: purification of lubrication systems and compressed air of papermaking machinery, mining machinery, injection molding machines, etc.

- Railway and ship: filtration of lubricating oil and hydraulic oil for railway internal combustion engines and ships.

- Others: liquid purification in electronics, pharmaceuticals, textiles, casting and other industries.

 Testing standards

Comply with many ISO standards, including:

- Filter element rupture resistance test (ISO 2941).

- Hydraulic filter element structural integrity test (ISO 2942).

- Material and fluid compatibility test (ISO 2943).

- Determination of differential pressure flow characteristics (ISO 3968).

- Filtration ratio/dirt holding capacity test (ISO 16889).
