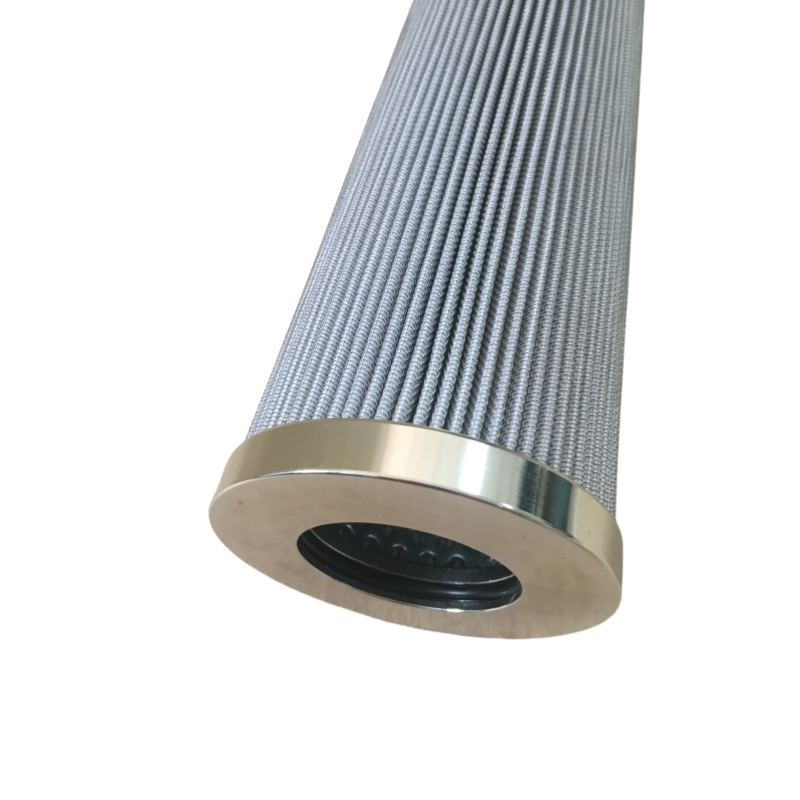

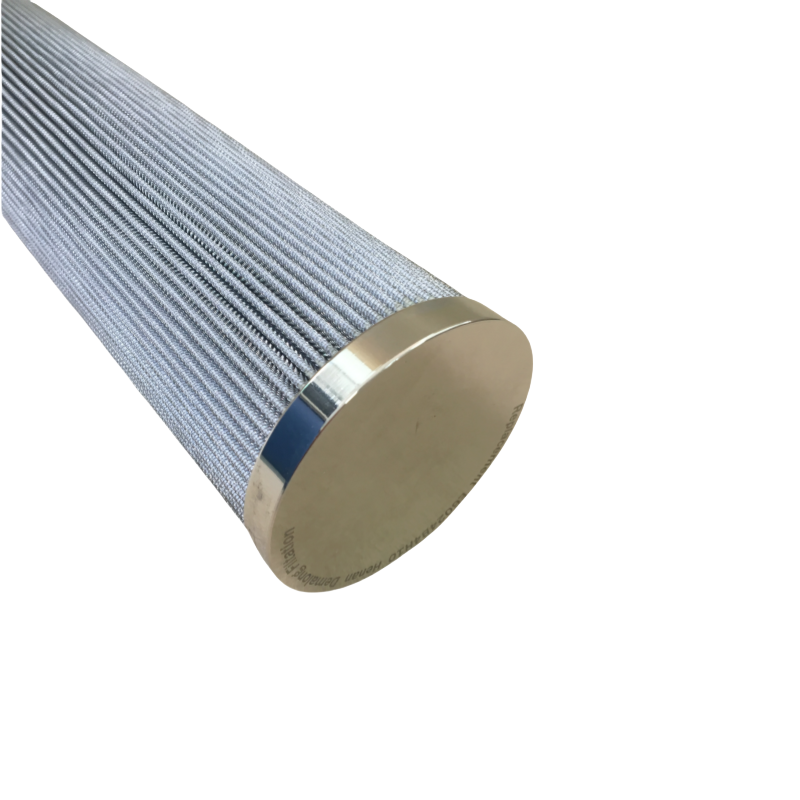

The HP93L16-40WB is a high-pressure hydraulic oil filter element, belonging to the HP series of high-pressure filter elements.

 I. Core Parameters

- Brand: HY-PRO

- Model: HP93L16-40WB

- Filtration Rating: 40 μm (The "40" in the model number indicates the filtration rating)

- Material: Glass Fiber (Microglass) pleated filter media

- Seal Material: NBR (Nitrile Rubber) or FPM (Fluorocarbon Rubber)

- Operating Pressure: Max. 420 bar (6000 psi)

- Operating Temperature: -10°C to 80°C

- Applicable Media: Mineral oil, water-glycol, synthetic hydraulic fluids, etc.

- Filter Element Configuration: Pleated type, flow direction: outside-in

- Interchangeable Models: Can replace models such as 01.NR1000.40G.10.B.P

 II. Model Designation (HP93L16-40WB)

- HP: High Pressure Series

- 93: Filter Element Size Series

- L: Filter Element Structure Type

- 16: Port/Mounting Specification

- 40: Filtration Rating: 40 μm

- W: Material/Structure Code (Glass Fiber)

- B: Seal Material (NBR)

 III. Application Scenarios

- Industrial hydraulic systems, construction machinery, metallurgical equipment, marine hydraulic systems

- High-pressure oil filtration in power plant fire-resistant fluid systems and lubrication systems

 IV. Performance Features

- High dirt-holding capacity and long service life

- High-pressure resistance, burst resistance, and excellent stability

- Compliant with international standards such as ISO 4572 and ISO 3968
