MP-FILTRI-HP0652A10ANP01 replacement filter element

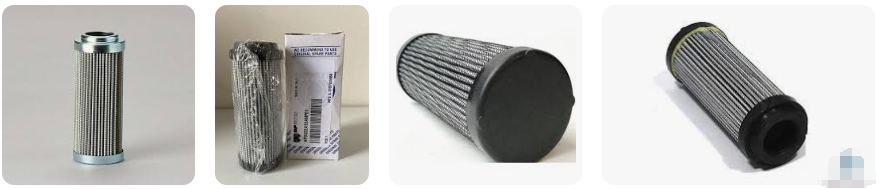

The HP0652A10ANP01 is a high-pressure filter element from MP Filtri's HP 065 series, designed for in-line pressure filter housings of the FHP/FHM/FHB/FMP series. It uses 10-micron absolute-rated inorganic glass fiber media with a Beta 1000 efficiency rating, making it suitable for high-cleanliness hydraulic circuits where consistent, fine particulate removal is required.

Dimensional Drawing

Schematic reference drawing only. For a to-scale dimensional CAD drawing or a physical sample, please contact us for a quote.

Technical Specifications

Filter Type	In-line high-pressure filter element (screw-in cartridge, radial seal)
Filter Media	Inorganic glass fiber, 10 µm absolute rating
Beta Rating	β1000 (per ISO 16889 multi-pass test)
Overall Length	120 mm
Outer Diameter	47 mm
Inner Diameter	25 mm
Seal Material	Buna-N (NBR)
Rated Working Pressure	Up to 20 bar (290 psi), matched to FHP/FHM/FHB/FMP series housings
Collapse / ∆P Rating	310 psi (21 bar) Delta P collapse rating
Fluid Compatibility	Mineral oils, synthetic fluids, aqueous emulsions, water, glycol
Test Standards	ISO 16889 (multi-pass efficiency & dirt capacity), ISO 2941 (collapse pressure), ISO 2942 (fabrication integrity), ISO 3968 (pressure drop), ISO 3724 (flow fatigue)

Filter Type

In-line high-pressure filter element (screw-in cartridge, radial seal)

Filter Media

Inorganic glass fiber, 10 µm absolute rating

Beta Rating

β1000 (per ISO 16889 multi-pass test)

Overall Length

120 mm

Outer Diameter

47 mm

Inner Diameter

25 mm

Seal Material

Buna-N (NBR)

Rated Working Pressure

Up to 20 bar (290 psi), matched to FHP/FHM/FHB/FMP series housings

Collapse / ∆P Rating

310 psi (21 bar) Delta P collapse rating

Fluid Compatibility

Mineral oils, synthetic fluids, aqueous emulsions, water, glycol

Test Standards

ISO 16889 (multi-pass efficiency & dirt capacity), ISO 2941 (collapse pressure), ISO 2942 (fabrication integrity), ISO 3968 (pressure drop), ISO 3724 (flow fatigue)

Compatible Equipment & Applications

The HP0652A10ANP01 is the replacement element for MP Filtri's FHP / FHM / FHB / FMP series in-line high-pressure filter housings, and is commonly used to service:

Mobile and industrial hydraulic power units

Injection molding and plastics processing machinery

Machine tools and press hydraulic systems

Marine and offshore hydraulic circuits

Steel, mining, and heavy industrial hydraulic equipment

Typical applications: high-pressure line filtration where fine, consistent particulate control is required to protect servo valves, proportional valves, and precision hydraulic components from contamination-related wear or failure.

Please confirm your exact housing model before ordering, as the HP065 series covers several lengths, micron grades, and seal options.

OEM & Cross-Reference Numbers

Brand	Part Number
MP Filtri	HP0652A10ANP01
HIFI FILTER	SH 93534
DeMalong Filter (our replacement)	Contact us for our part number

Brand

Part Number

MP Filtri

HP0652A10ANP01

HIFI FILTER

SH 93534

DeMalong Filter (our replacement)

Cross-reference numbers are provided for identification purposes only. DeMalong Filter Inc. products are aftermarket replacements and are not affiliated with, sponsored by, or manufactured by MP Filtri or any brand referenced above. All trademarks belong to their respective owners.

Lead Time, MOQ, Samples & Customization

Samples	Sample units available for testing and quality verification prior to bulk order
Customization	Alternate micron ratings (3/6/10/16/25 µm), seal materials, and lengths within the HP065 series available on request
Packaging	Individual box with DeMalong brand and part number, or neutral / customer-branded packaging on request
Lead Time & MOQ	Varies by order quantity and customization — submit an inquiry for a specific lead time and MOQ quote.

Samples

Sample units available for testing and quality verification prior to bulk order

Customization

Alternate micron ratings (3/6/10/16/25 µm), seal materials, and lengths within the HP065 series available on request

Packaging

Individual box with DeMalong brand and part number, or neutral / customer-branded packaging on request

Lead Time & MOQ

Varies by order quantity and customization — submit an inquiry for a specific lead time and MOQ quote.
