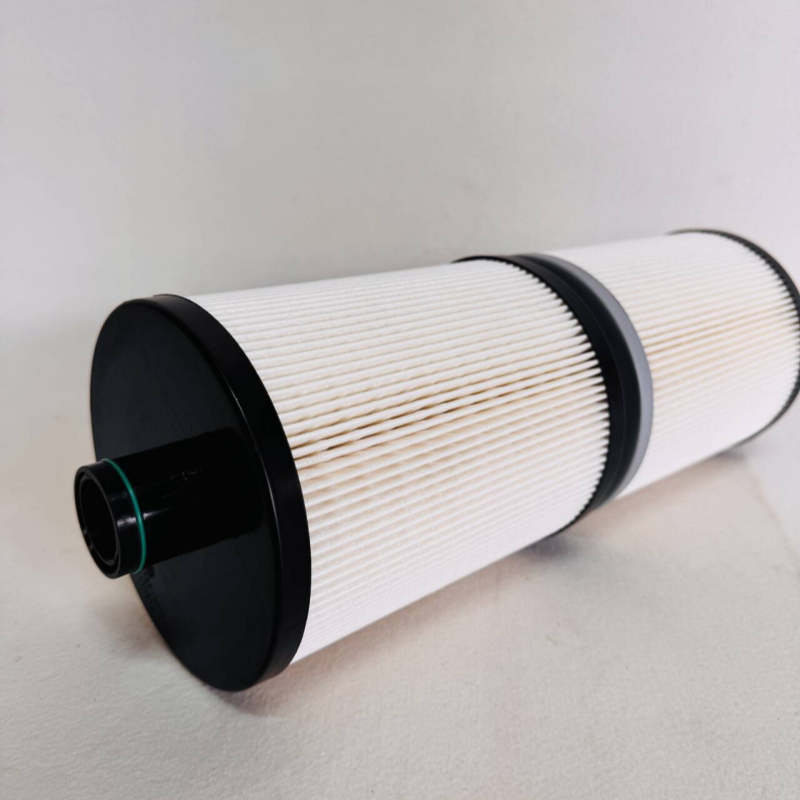

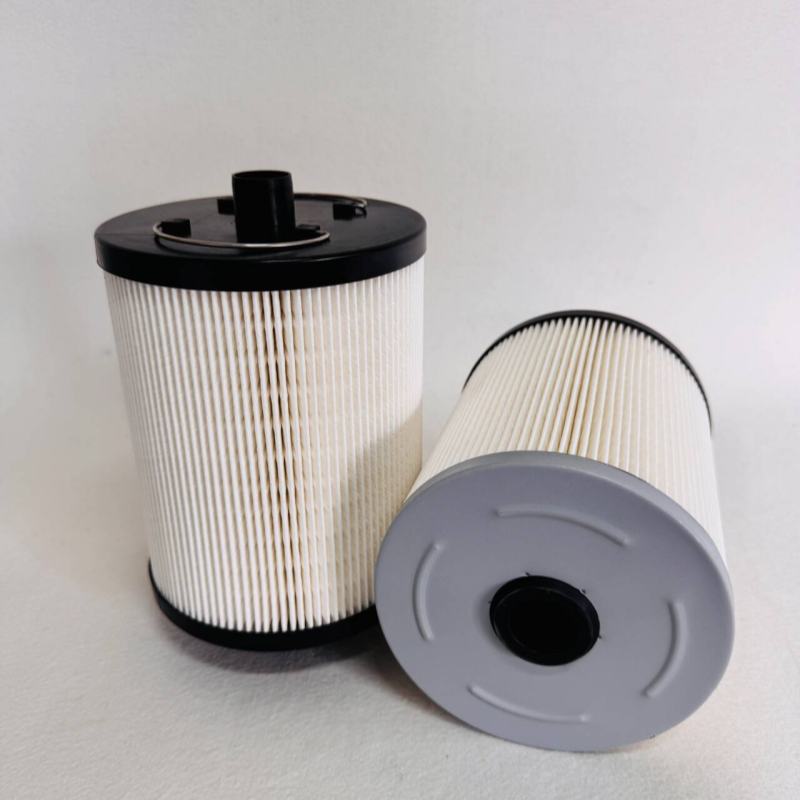

Marine fuel water separator filter element FS53014 is mainly used for fuel filtration in diesel engines. It efficiently separates water and solid particles from the fuel, protecting the engine's fuel injection system.

Filter Media Technology NanoNet™ Nanomedia

Filtration Efficiency β1000 @ 6-7μm (99.9% filtration efficiency for 6-7 micron particles)

Oil-Water Separation Efficiency Average 95%

Maximum Outer Diameter 148.11 mm

Total Height 411.47 mm

End Cap Inner Diameter 39.24 mm

Gasket Inner/Outer Diameter 37.82 mm / 41.38 mm

Flow Direction From outside to inside

Applicable Models and Housings

This filter element is primarily compatible with Cummins engines and generator sets, and is also suitable for large-displacement industrial engines such as QSK19, QSK23, QSK38, QSK50, QSK60.

It is typically used with the FH239 series fuel processor housings, which come in "Tall" and "Short" models. Several housings, including FH23903 and FH23912, are compatible with this FS53014 filter element.

Performance Features

 Ultra-high oil-water separation efficiency: Average separation efficiency of 95% over its entire lifespan, approximately three times that of mainstream high-end filters.

 Long-lasting and high ash capacity: Service life is 100% longer than the previous generation (FH234 series), accommodating more impurities and reducing replacement frequency.

 Biodiesel compatible: Meets B20 biodiesel usage standards (ASTM D6751 and EN14214).
