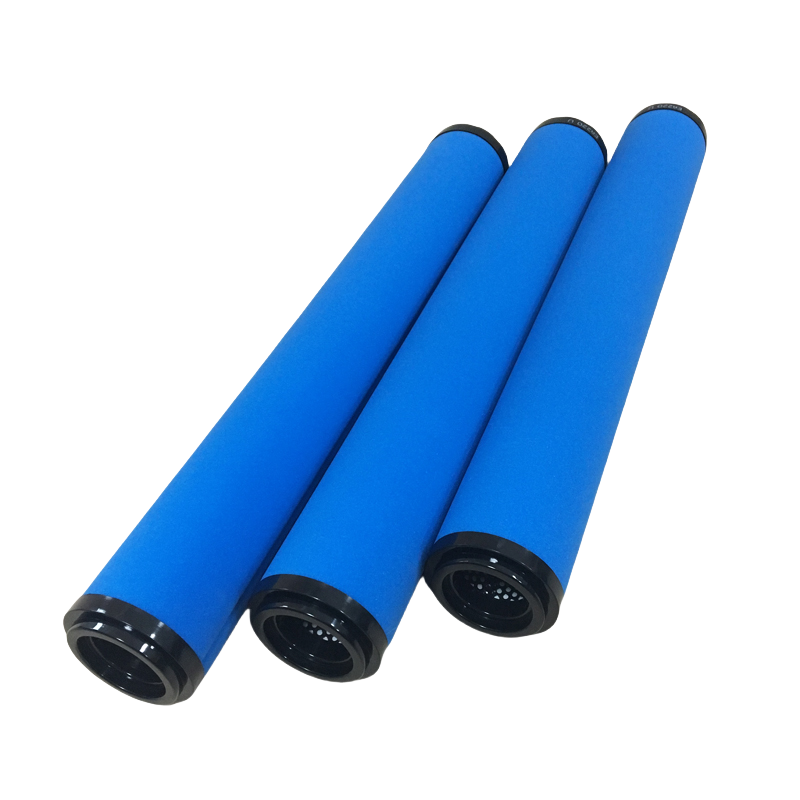

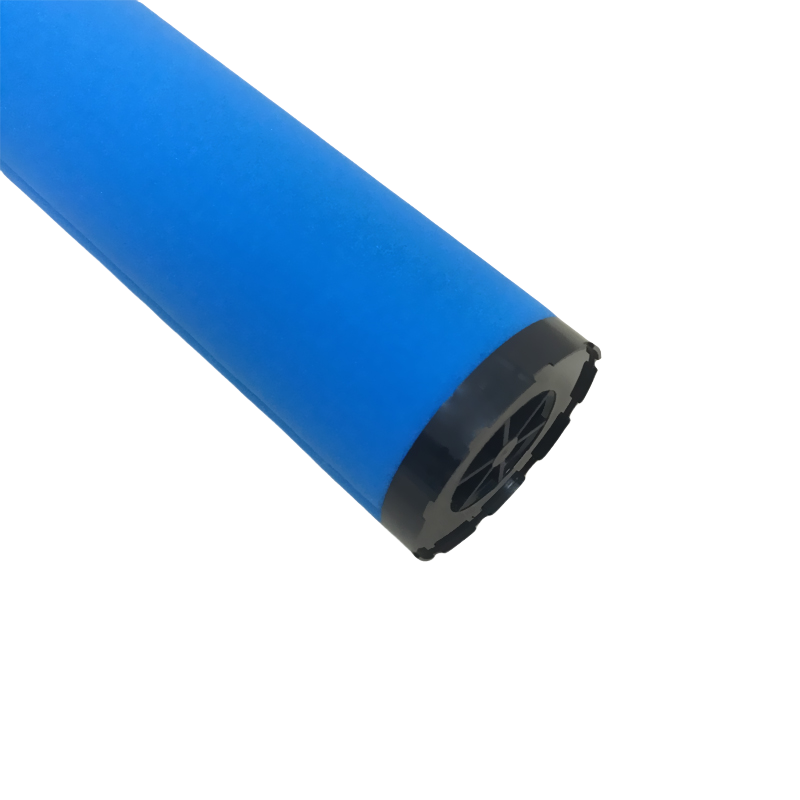

FIL28FE air compressor pipeline filter element

Basic Product Information

 Part Number  FIL28FE

 Product Type  Pipeline Filter Cartridge / Precision Filter Cartridge / Coalescing Filter Cartridge

 Filtration Grade  Grade F / Ultra Hi-Efficiency / Grade 4

 Parameters  Specifications

 Filtration Accuracy  0.01 microns (μm)

 Filtration Efficiency  Ultra Hi-Efficiency

 Function  Coalesces oil mist and water mist, removing fine particles and oil vapor

 Weight  Approx. 0.2–0.5 kg (net weight of filter cartridge)

 Size  28 size (corresponds to Gardner Denver FIL series size 28)

 Functions and Applications

- Main Function: As the final precision filter in a compressed air system, installed after a dryer or at the end of a pipeline to remove particles as small as... Provides virtually oil-free compressed air (residual oil content down to 0.01ppm) for oil mist, water mist, solid particles, and hydrocarbon vapors.

Typical Applications: Food and pharmaceutical industries, precision electronics manufacturing, spraying, instrumentation, and other applications requiring extremely high compressed air quality.

 Model  Grade  Function

 FIL28AE  Grade A  Mechanical Separator

 FIL28BE  Grade B  Separator/Pre-Filter

 FIL28CE  Grade C  Main Line Filter (1μm)

 FIL28FE  Grade F  Ultra-High Efficiency Precision Filter (0.01μm)

 FIL28GE  Grade G  Oil Vapor Filter (Activated Carbon)

 Quality Standards

Complies with multiple ISO testing standards:

- ISO 2941 (Filter Cartridge Burst Resistance)

- ISO 2942 (Structural Integrity)

- ISO 2943 (Materials and Liquids Compatibility)

- ISO 3723 (End Load Test)

- ISO 3968 (Differential Pressure Flow Characteristics)

- ISO 16889 (Filtration Ratio/Dirty Capacity)
