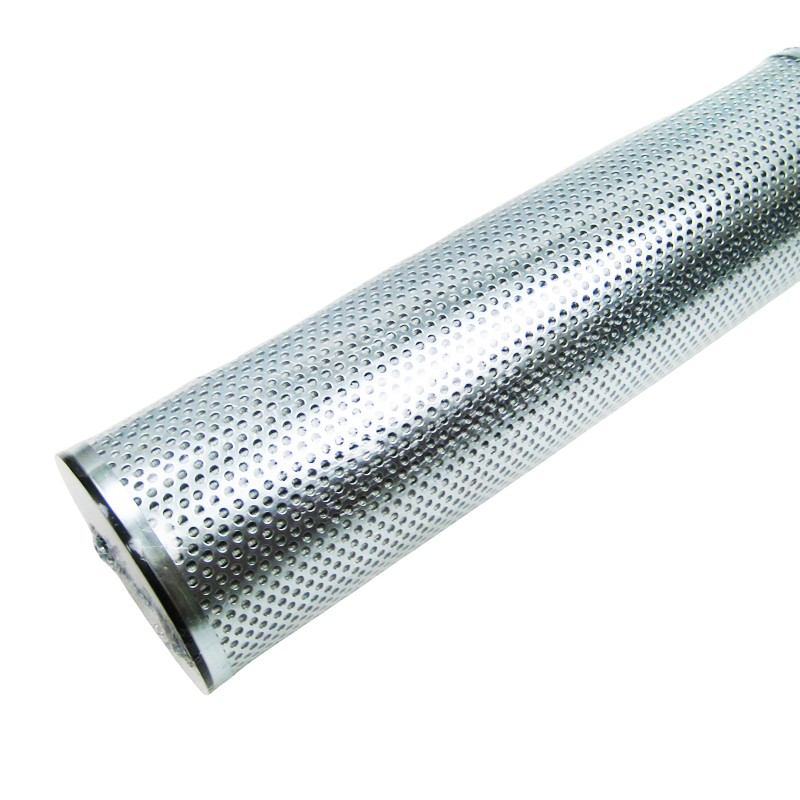

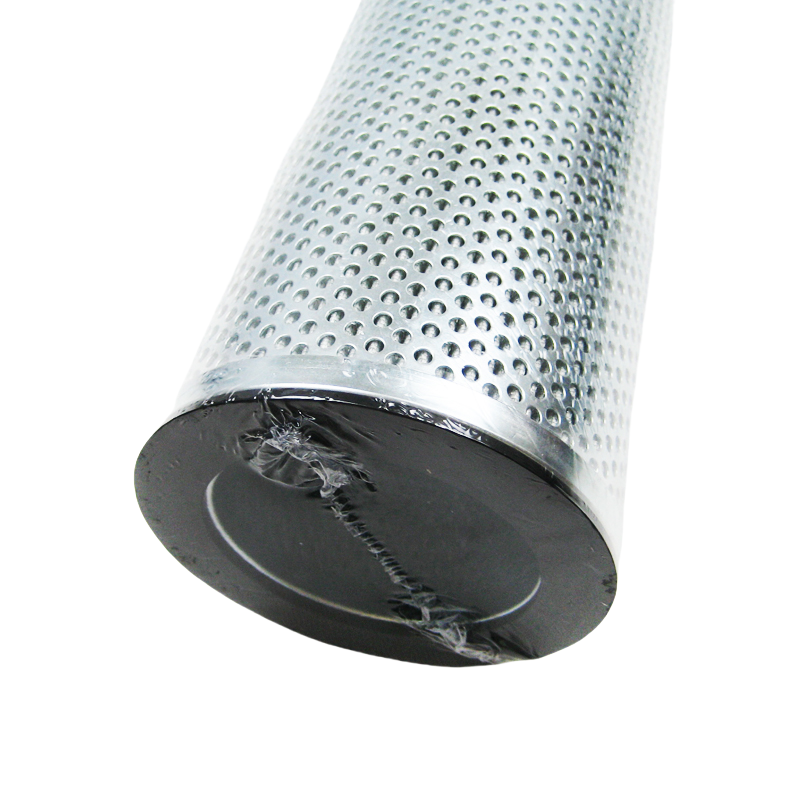

ELT-9594 Oil Mist Filter Element

 ELT-9594 Oil Mist Filter Element Basic Information

ELT-9594 is an oil mist filter element designed specifically for industrial environments. It is primarily used to remove oil mist and particulate matter from compressed air, ensuring gas cleanliness.

 1. Product Identification

- Model: ELT-9594 (Common variant: ELT-9594/2)

- Type: Oil mist remover/oil mist separator

- Applicable Media: Air, natural gas, hydraulic oil, etc.

---

 2. Main Technical Parameters

 Filtration Accuracy  0.01~500μm (depending on filter media)<br>Glass fiber filter media: 1-70μm; Filter paper filter media: 5-40μm<br>ELT-9594/2 variant: 5 microns

 Operating Temperature  -30~120℃ (maximum)

 Operating Pressure  ≤420 kg (≈42MPa)<br>ELT-9594/2 variant: Maximum 100 barg

 Filter Media Material  Fiberglass, metal mesh, filter paper, sintered felt, polypropylene, etc., customizable

 Size Specifications  ELT-9594/2: Inner diameter 300mm, outer diameter 390mm, length 2×600mm (total length 1200mm)

---

 3. Product Features

- High-efficiency oil removal: Specially designed for separating oil mist from compressed air

- High customizability: Filter media, dimensions, and precision can all be customized according to working conditions

- High temperature and high pressure resistance: Suitable for harsh industrial environments

- Standard compliance: Complies with international standards such as ISO 9001

---

 4. Application Areas

Mainly used in air compressor systems in steel plants, also widely used in:

- Natural gas/associated gas filtration

- Power plants, steel plants, aluminum plants

- Petrochemical and chemical industries

- Mining, papermaking, shipbuilding

- Air compressors, compressor systems

- Gas generator sets
