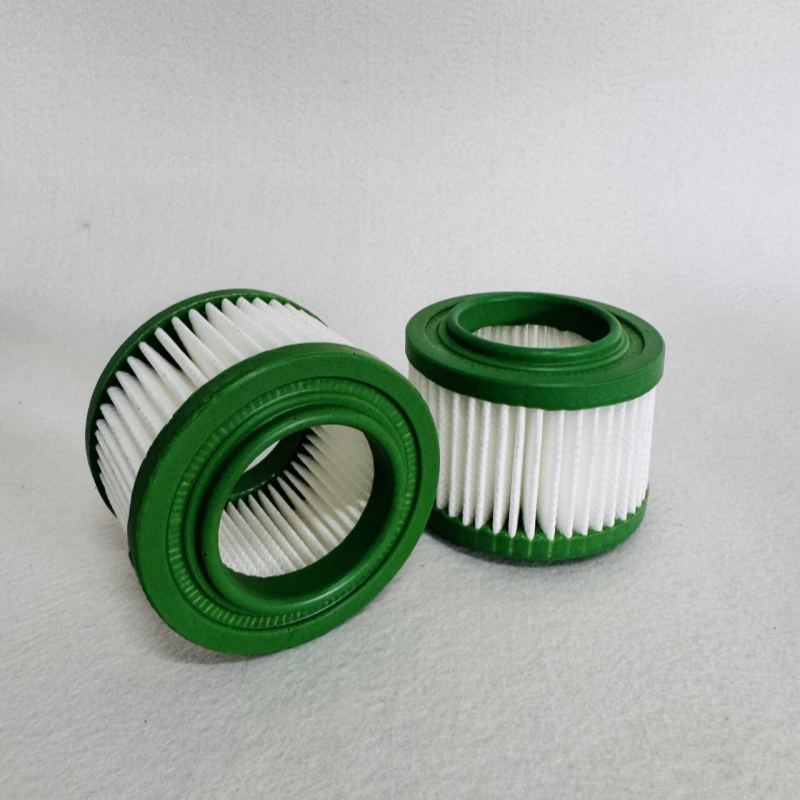

EAC10C015 air filter

Description of the image

EAC10C015 air filter

EAC10C015 air filter

Basic Product Information

Part Number EAC10C015

Series EAB Series (Environmentally Friendly Oil Tank Breather Filter Element)

Product Type Hydraulic Oil Tank Breather Filter Element / Air Breathing Filter

Applicable Series EAB10 Series (1000 LPM Flow Rate)

Technical Parameters

Filtration Accuracy 1.5 μm (Absolute Filtration Accuracy, Waterproof)

Filter Material Polyester Fiber (with Waterproof Coating)

Operating Flow Rate 1000 L/min (Applicable to EAB10 Series)

Operating Temperature ≤100°C

Filtration Efficiency 99.99% Filter Area

Dimensions Height 61mm, Outer Diameter 78mm, Inner Diameter 44mm

Connection Thread External Thread DN40 (3/4" BSP)

EAC10C015 belongs to the Parker EAB series replacement filter cartridge. Different precision models in the same series are as follows:

EAC10P020 2.0 μm Polyester (Standard) EAB10

EAC10C015 1.5 μm Polyester (Waterproof) EAB10

EAC10Q010 1.0 μm Glass Fiber EAB10

EAC20P020 2.0 μm Polyester (Standard) EAB20 (1500 L/min)

EAC20C015 1.5 μm Polyester (Waterproof) EAB20

EAC20Q010 1.0 μm Glass Fiber EAB20

Compatible Replacement Models

EAC10C015 Interchangeable with the following models:

- 3222333741 (Atlas Copco)

- 02009000134 (OEM number)

- SBL23201 (SF-FILTER)

- SA12669 (General number)

- TFB010PE / 351200151 (Compatible with other brands)

Main Application Scenarios

- Hydraulic Systems: Breathing filters for various hydraulic oil tanks and lubricating oil tanks

- Air Compressors: Atlas Copco air compressor intake filters

- Coking Industry: Air filtration for coking plant centrifuges

- Construction Machinery: Venting of hydraulic oil tanks in excavators, loaders, etc.

- Industrial Equipment: Rolling mills, continuous casting machines, power plant hydraulic systems

Quality Standards

Complies with multiple ISO testing standards:

- ISO - ISO 2941 (Filter Cartridge Burst Resistance)

- ISO 2942 (Structural Integrity)

- ISO 2943 (Material and Liquid Compatibility)

- ISO 3723 (End Load Test)

- ISO 3968 (Pressure Differential Flow Characteristics)

- ISO 16889 (Filtration Ratio/Dirty Capacity)

Leah Sales Manager

Email: [email protected]

Mob & WhatsApp & Wechat & Skype: (+86)19937372138

You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.

Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.

DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.

All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941

All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.

Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
