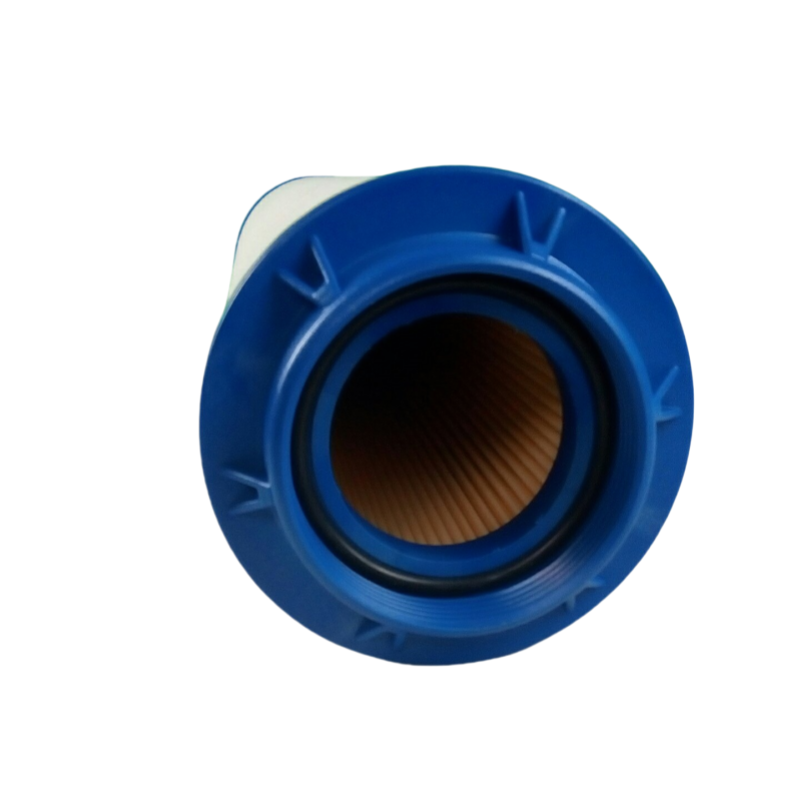

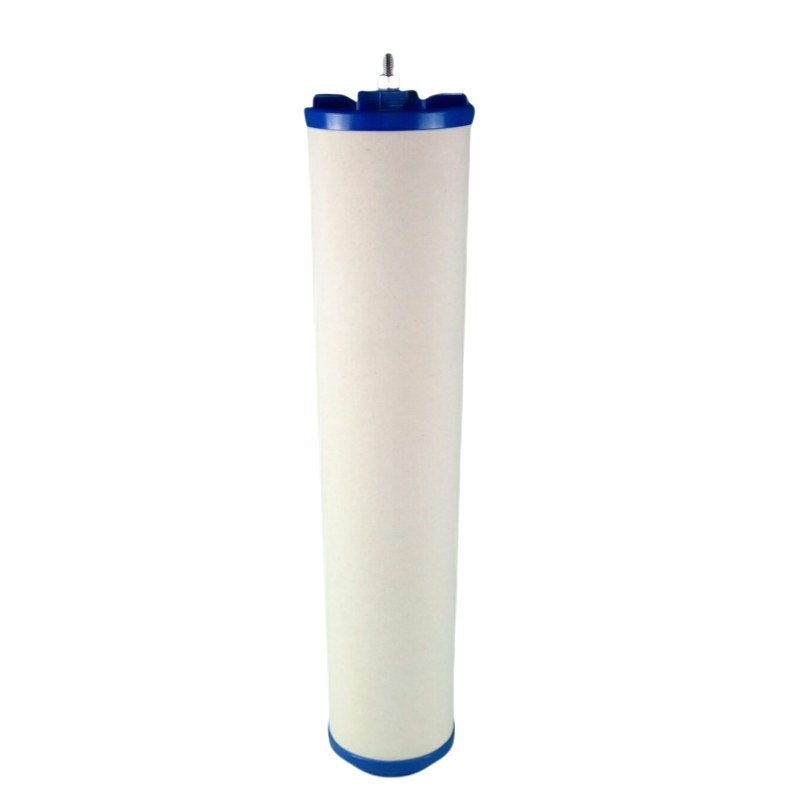

The following is basic information about CAA33-5 and CAA43-5 coalescing aerospace filters:

1. Product Overview:

   - CAA series coalescer filter elements, including CAA33-5 and CAA43-5, are important components for filters. They have the dual function of filtering impurities and coalescing moisture from aviation kerosene.

2. Working principle:

   - The coalescing filter element captures droplets of oil, water and other liquids, forming a tortuous channel inside the filter element, and uses three filtration mechanisms of inertial collision, interception and direct interception to capture solid particles and liquid mist droplets. In addition, the surface tension of the liquid causes small droplets to coalesce into larger droplets. These large droplets will sink to the bottom of the container under the action of gravity, achieving oil-water separation.

3. Filtering accuracy:

   - The filtration precision of the CAA Series 5 coalescer filter element can reach 0.1 micron, which means that it can filter out extremely small impurities and water molecules.

4. Materials:

   - Typically manufactured from high-density gradient fiberglass or polyester fibers, both of which have good coalescing properties. The surface of the filter element is hydrophobic and oleophobic to enhance its compatibility and filtration effect with various fluids.

5. Features:

   - High filtration precision: The filtration precision can reach 0.1 micron, which can effectively remove impurities and water molecules.

   - Broad compatibility: Very good compatibility with various fluids.

   - Good environmental protection: Made of synthetic materials, no residue after burning.

   - Stable structure: There is no media fiber shedding and no pollution to the environment or downstream products.

   - Long service life: large dirt holding capacity and long service life.

6. Application areas:

   - Widely used in chemical industry, petroleum, pharmaceutical, light industry, water treatment, metallurgy, textile, electric power and other fields. The CAA series 5 coalescer filter element can not only filter out mechanical impurities in the medium, but also separate the emulsified water from the medium through demulsification and coalescence, and coalesce into larger water droplets to further realize the realization of the medium. of purification.

7. Technical parameters:

   - Structural parameters: filter element outer diameter 100, 150mm; filter element length 400, 500, 600, 710, 915, 1120mm; structural strength > 0.7MPa.

   - Operating parameters: temperature resistance 180℃.
