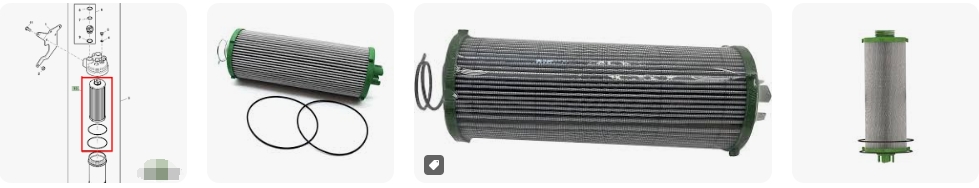

John Deere replacement hydraulic oil filter element
AL232896 is the current John Deere part number for this hydraulic oil filter element. AL169573 (and the earlier AL169059) are prior John Deere part numbers for the same physical element, and SH66209 (HIFI) is the most commonly searched aftermarket cross-reference number. All of the numbers below identify compatible parts for the same filter cavity.
Technical Specifications
Filter Type
Spin-on hydraulic oil filter element
OEM Brand
John Deere
Outer Diameter
108.5 mm
Inner Diameter
96 mm
Overall Length
309.5 mm (element length 277.5 mm)
Filtration Efficiency
Beta 200 ≥ 12 µm (per published third-party test data)
Operating Temperature
-20 °C to +100 °C
Test Standards
ISO 16889 (multi-pass efficiency & dirt capacity), ISO 2941 (collapse pressure), ISO 2942 (fabrication integrity), ISO 3968 (pressure drop), ISO 3724 (flow fatigue)
Compatible Equipment & Applications
AL232896 / AL169573 elements are used across John Deere hydraulic systems, including:
John Deere tractors
John Deere construction and forestry equipment
Other John Deere machinery using the same hydraulic filter housing
Please confirm your exact machine model and serial number before ordering, as filter cavities can be revised across production years.
OEM & Cross-Reference Numbers
Brand
Part Number
John Deere (current)
AL232896
John Deere (prior part number)
AL169573
John Deere (earlier part number)
AL169059
Donaldson
P958404
HIFI FILTER
SH66209
SF-FILTER
HY90562 / HY 90562/1
Wismet
WHE212927
Boss Filters
L73.0564 / L73.0555
DeMalong Filter (our replacement)
Contact us for our part number
Cross-reference numbers are provided for identification purposes only. DeMalong Filter Inc. products are aftermarket replacements and are not affiliated with, sponsored by, or manufactured by John Deere, Donaldson, HIFI, or any brand referenced above. All trademarks belong to their respective owners.
Lead Time, MOQ, Samples & Customization
Samples
Sample units available for testing and quality verification prior to bulk order
Customization
Alternate media and micron ratings, and private-label packaging available on request
Packaging
Individual box with DeMalong brand and part number, or neutral / customer-branded packaging on request
Lead Time & MOQ
Varies by order quantity and customization — submit an inquiry for a specific lead time and MOQ quote.
The AL232896 is a hydraulic oil filter element designed for use in John Deere equipment. It is engineered to remove contaminants from hydraulic systems, ensuring the smooth operation of hydraulic components. Here are the key specifications and features based on the available information:
Type: Hydraulic oil filter element.
Brand: John Deere.
Filtration Accuracy: Various micron ratings available.
Outer Diameter: 108.5 mm.
Inner Diameter: 96 mm.
Total Length: 309.5 mm.
Length: 277.5 mm.
Operating Temperature: -20°C to +100°C.
Application: Suitable for John Deere equipment, including tractors and other machinery.
Cross Reference:
SF-FILTER lists the cross-reference part number as HY 90562/1 .
Other cross-references include ASAS AS980HT, BEPCO-GROUP 60641258, CM-FILTER CMH4722, Donaldson P958404, FINN-FILTER fhc15562, IMPREFIL IH9056, John Deere AL169059, John Deere AL169573, MDF MDH9280, SF-FILTER HY905621, UNIFLUX-FILTERS XH1054, WISMET WHE212927 .
Applicable Industries and Equipment:
Used in John Deere agricultural and construction machinery, including models such as 6030, 6030PR, 7030PR, 6M, 6090MC, 6105M, 6110M, 6115R, 6120R, 6135R, 6150M, 6630PREMIUM, 6930PREMIUM, 7530PREMIUM .
For the most accurate and up-to-date information, it is recommended to verify all details with the manufacturer or a certified dealer.
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
