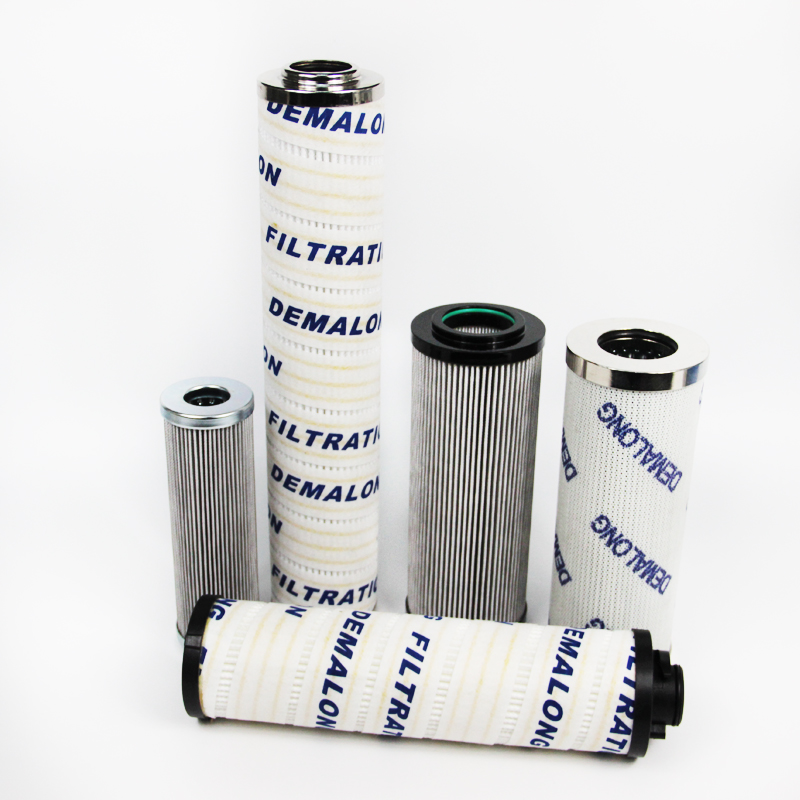

The following is basic information about the A07110805, G01402Q, ST7814, and 0600HT1010KF1 hydraulic return filter elements and hydraulic oil filters:

 A07110805 Hydraulic Return Filter

- Technical Parameters:

- Working Pressure: 16 bar, custom orders available upon request.

- Maximum Operating Temperature: 120°C.

- Operating Flow: 2-2600 L/min.

- Differential Pressure Alarm: 1 bar, 3 bar.

- Filter Material: Glass fiber, stainless steel.

- Seal Material: Nitrile rubber, fluororubber.

 G01402Q Hydraulic Return Filter

- Technical Parameters:

- Working Pressure: 16 bar, custom orders available upon request.

- Maximum Operating Temperature: 120°C.

- Operating Flow: 2-2600 L/min.

Differential Pressure Alarm: 1 bar, 3 bar.

Filter Material: Glass fiber, stainless steel.

Seal Material: Nitrile rubber, fluororubber.

 ST7814 Hydraulic Return Oil Filter

Technical Parameters:

Working Pressure: 16 bar, custom orders available.

Maximum Operating Temperature: 120°C.

Flow Rate: 2-2600 L/min.

Differential Pressure Alarm: 1 bar, 3 bar.

Filter Material: Glass fiber, stainless steel.

Seal Material: Nitrile rubber, fluororubber.

 0600HT1010KF1 Hydraulic Return Oil Filter

Technical Parameters:

Working Pressure: 16 bar, custom orders available.

Maximum Operating Temperature: 120°C.

Flow Rate: 2-2600 L/min. - Differential Pressure Alarm: 1 bar, 3 bar.

- Filter Material: Glass fiber, stainless steel.

- Seal Material: Nitrile rubber, fluororubber.

 Hydraulic Oil Filter Element Materials and Advantages

- Metal Filter Element:

- High Temperature and High Pressure Resistance: Suitable for high-temperature (e.g., above 200°C) or high-pressure hydraulic systems, such as construction machinery and aviation hydraulic systems.

- High Mechanical Strength: The sturdy metal mesh structure can withstand high operating pressures, is highly impact-resistant, and resists deformation, making it suitable for high flow rates or conditions with high impurities.

- Reusable: The smooth surface makes it easy to remove impurities, and filtration capacity can be restored through cleaning or backflushing, reducing long-term costs.

- Good Chemical Stability: Corrosion-resistant, suitable for hydraulic fluids containing additives or acidic/alkaline fluids.

- Typical Applications: Heavy machinery, marine hydraulic systems, and high-temperature industrial environments.

- Paper Filter Element:

- Moderate Filtration: Capable of filtering particles up to 10-50 microns, effectively capturing fine particles and protecting precision hydraulic components.

- High Adsorption: Absorbs small amounts of water and colloids in the oil.

- Low Cost: Manufacturing costs are significantly lower than those of glass fiber and metal materials. Disposable, suitable for budget-constrained applications with less stringent filtration requirements.

- Environmentally Friendly and Biodegradable: Some natural fiber materials are environmentally friendly.

- Typical Applications: General industrial hydraulic systems and mobile equipment, such as agricultural machinery.

- Glass Fiber Filter Element:

- High Filtration: Capable of filtering particles between 1-5 microns, suitable for systems requiring extremely high hydraulic fluid cleanliness, such as servo valves.

- High Temperature Resistance: Operates stably in temperatures ranging from -40°C to 120°C. Some specially treated glass fiber filter elements can withstand temperatures exceeding 150°C, making them suitable for high-temperature hydraulic environments.

- Large Dirt Holding Capacity: The multi-layer design creates a porous structure between the fibers, accommodating a larger amount of impurities and extending replacement intervals. - Chemical Resistance: Resists most hydraulic fluid additives.

- Typical Applications: Precision machine tools, wind turbine hydraulic systems, and aerospace.

- Synthetic Fiber Filter Elements:

- Balanced Performance: Balances precision (3-20 microns), dirt-holding capacity, and cost.

- Moisture Resistance: Resists moisture absorption, mold growth, and is not easily affected by moisture, making it suitable for humid environments or water-based hydraulic fluid systems.

- Lightweight: Weighs less than metal filters, making it suitable for mobile equipment.

- Foldable Design: Increases filtration area and reduces differential pressure.

- Typical Applications: Automotive hydraulic systems, injection molding machines, and general industrial equipment.

These filters are suitable for a variety of industrial applications, effectively removing impurities from hydraulic fluid, ensuring system operation and fluid cleanliness.
