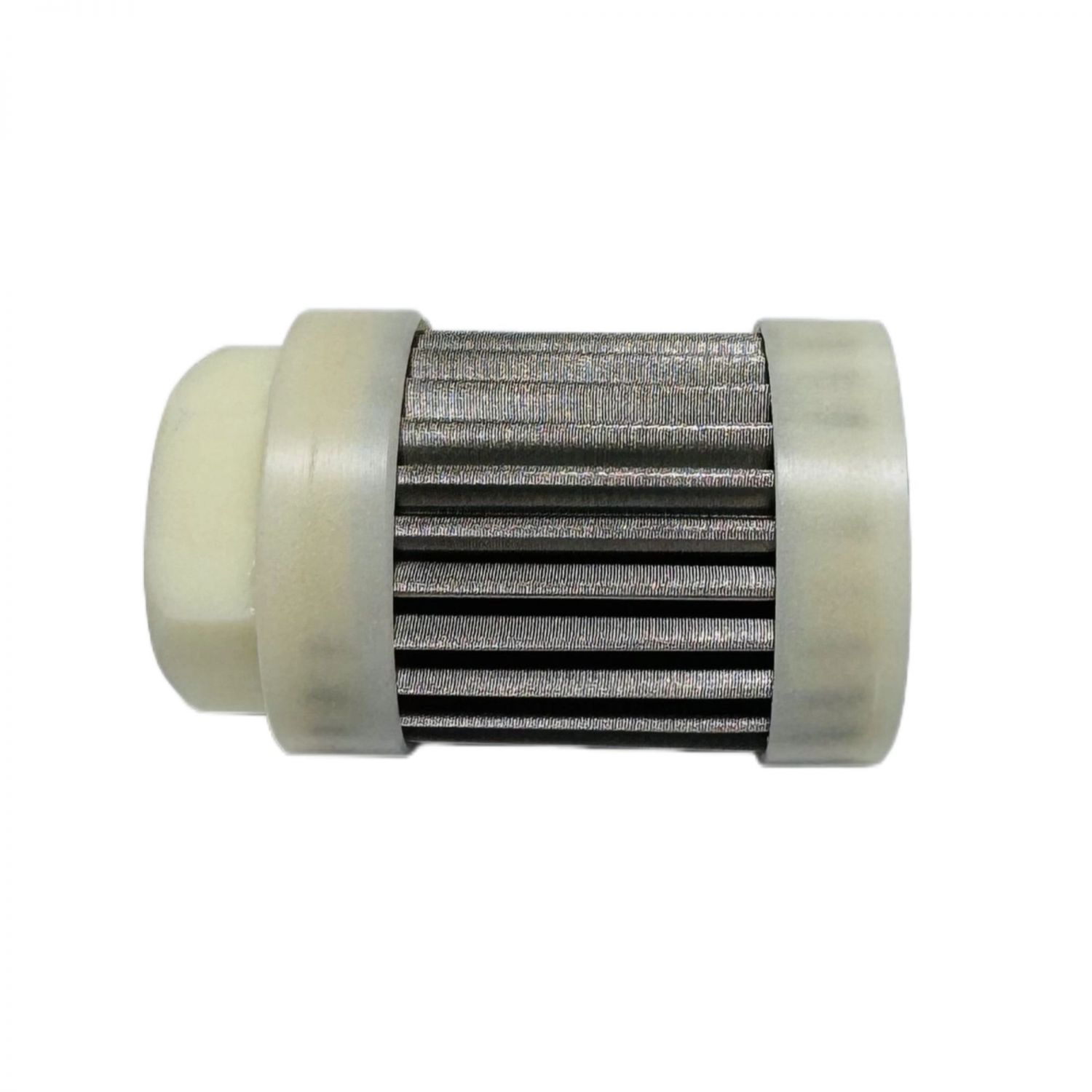

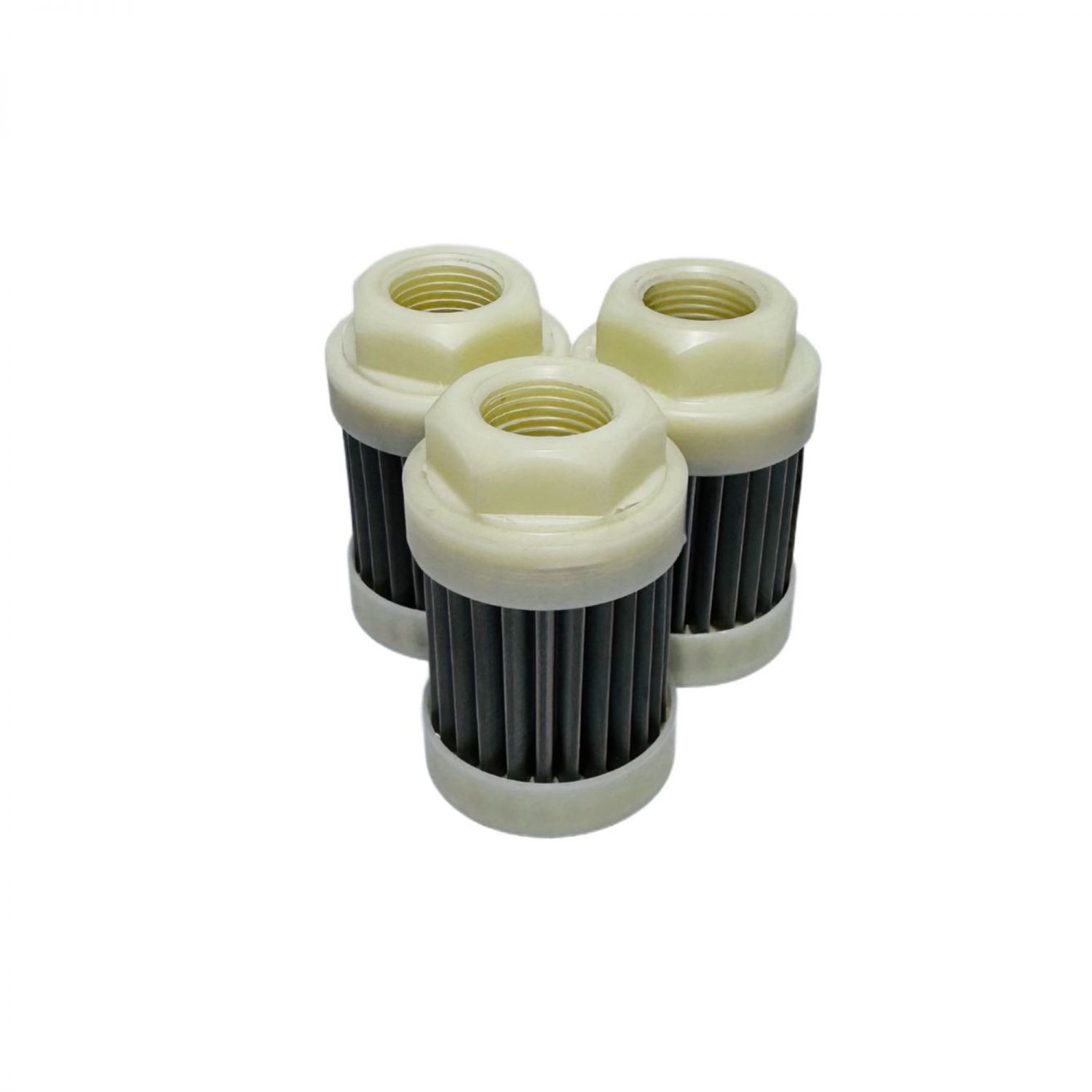

The basic information of 83022DC220 pleated filter element is as follows:
Basic information
Type: pleated filter element
Series: 83 series
Model: 83022DC220
Product features
High flow: Designed for high flow applications, can meet high throughput requirements.
Large filtration area: Adopts pleated design, large effective filtration area, reduces replacement frequency.
Multiple filter material options: Provides a variety of filter materials such as PES (polyethersulfone), PTFE (polytetrafluoroethylene) and PP (polypropylene).
High dirt holding capacity: Can accommodate a large amount of impurities and extend service life.
Product specifications
Maximum operating temperature: 80℃.
Maximum operating pressure: 4.0 Bar (20℃).
Filter material: PES/PTFE/PP.
Support layer: Polypropylene.
End cap material: Polypropylene.
Sealing material: Silicone rubber, NBR, EPDM, FKM or Teflon encapsulated FKM.
Applications
This filter element is widely used in the following fields:
Chemical processing
Pharmaceutical production
Food and beverage production
Industrial ventilation systems
Advantages
High efficiency: The pleated design ensures high filtration efficiency and low pressure difference.
Chemical resistance: The material is excellent and can withstand a variety of chemicals.
Easy to maintain: The compact design allows for easy installation and replacement.
