1. Application fields: 82480U mud pump filter element is widely used in many fields such as shipbuilding industry, 3D printing industry, coal industry, aviation industry, machinery industry, etc.

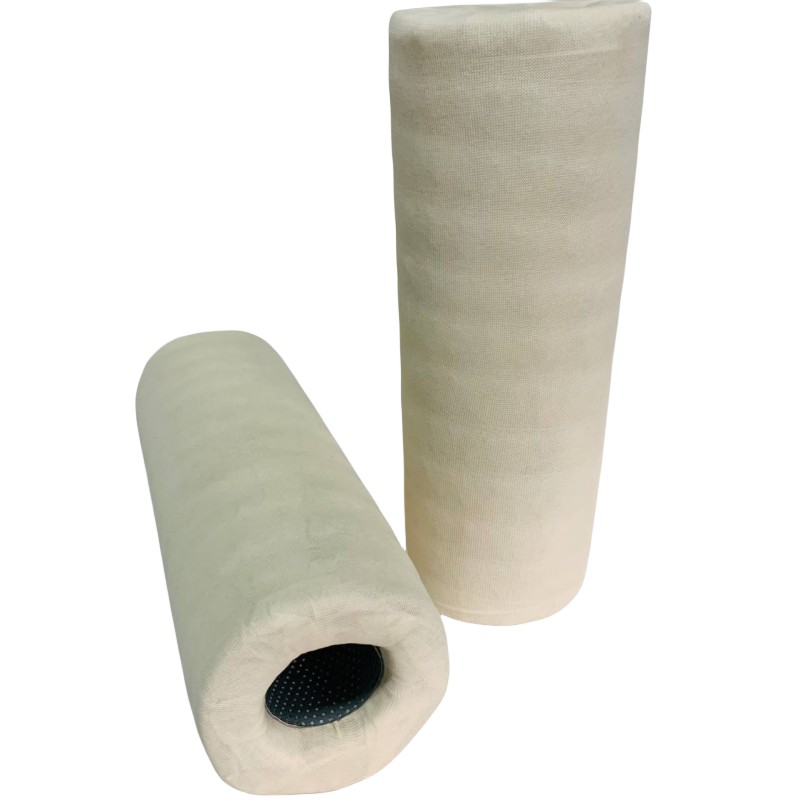

2. Product description: This filter element is used in hydraulic oil systems to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system.

3. Technical parameters:

   - Filter element filter materials: including glass fiber, filter paper, metal mesh, metal powder, metal sinter, sintered felt, etc.

   - Filtration precision: glass fiber filter material 1-70μm (micron); metal mesh filter material 3-400μm (micron); filter paper filter material 5-40μm (micron).

   - Rated flow: 6~9100 L/min.

   - Working pressure: ≤450kg.

   - Working temperature: -30~120℃.

4. Features:

   - Large dirt-holding capacity: High-quality imported filter materials are selected. The filter material can hold high quality particle pollution per unit area, has a large dirt-holding capacity and has a long service life.

   - Stable filtration accuracy: Advanced processing technology reduces the damage of the filter material due to mechanical force during the folding process, thereby causing filtration failure, and ensures stable and uniform filtration accuracy of the filter element.

   - High structural integrity: It has passed the standard ISO2942:2004 test many times. The initial bubbling point of the filter element has not dropped, and the filter element has no structural defects that affect its filtration accuracy assessment results.

   - Strict factory inspection: A complete and strict product factory inspection process for raw materials, semi-finished products and finished products, and 100% full inspection of factory products to ensure worry-free product quality.
