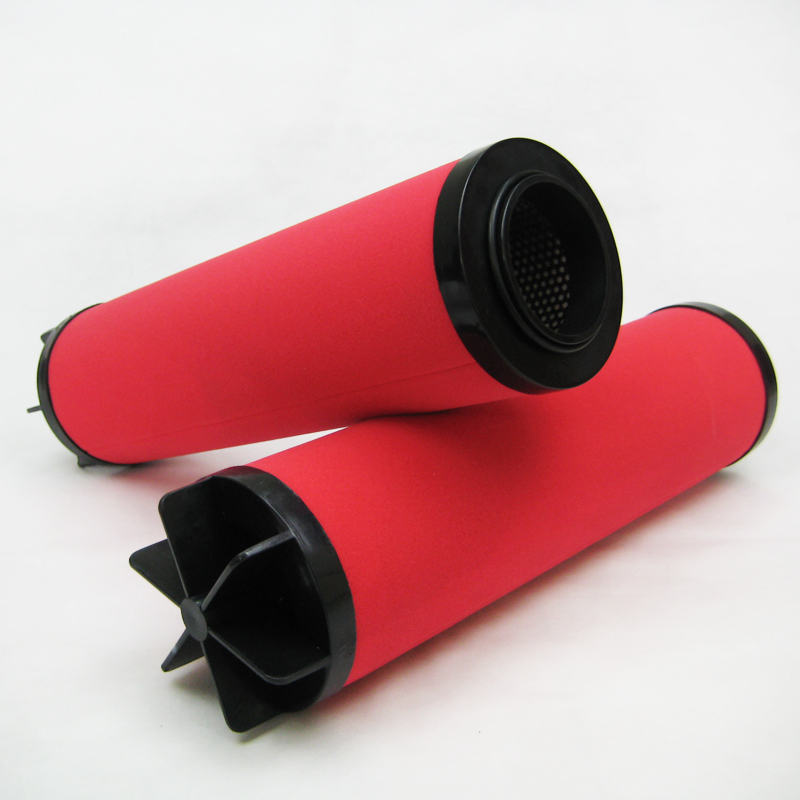

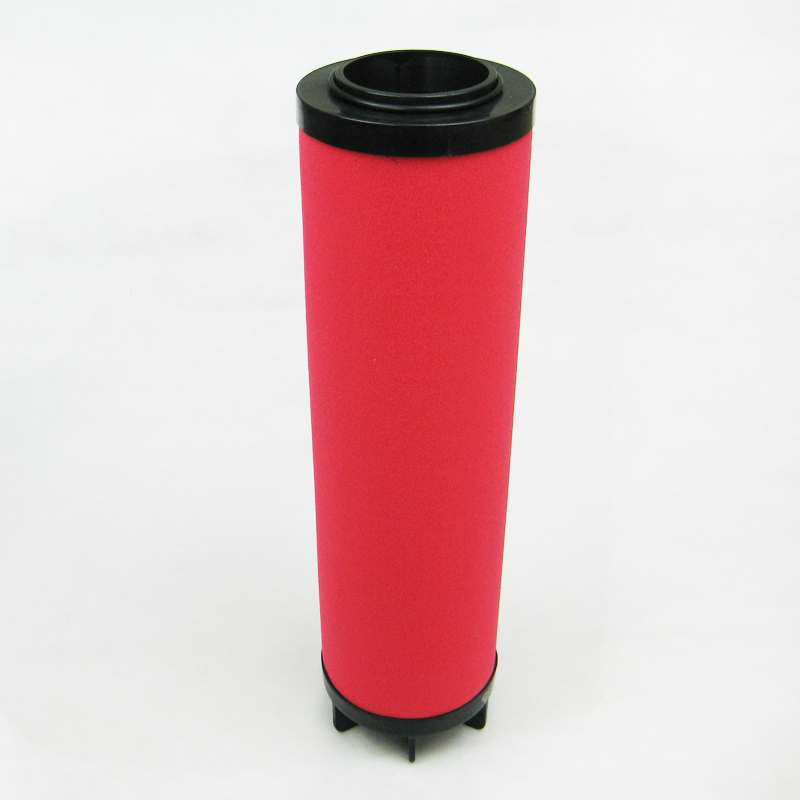

80005001715 precision filter element

80005001715 is a precision filter element used in refrigerated dryers and compressed air aftertreatment systems.

- Model: 80005001715 Precision Filter Element

- Product Type: Precision Oil Removal Filter Element for Refrigerated Dryers

- Core Function: Removes oil mist, water vapor, dust particles and hydrocarbon vapors from compressed air.

 Technical Parameters (including warnings of inconsistencies)

 Operating Pressure  ≤450 kg (approx. 45 MPa)  16 bar (1.6 MPa)  ⚠️ 16 bar is reliable, 450 kg is clearly incorrect data.

 Operating Temperature  -30~120℃  Maximum 120℃  -30°C to +120℃ (reliable)

 Rated Flow Rate  6~9100 L/min  2-2600 L/min  Depends on filter specifications, not a fixed value   Filter Media Material  Optional: Glass fiber, filter paper, PP, polyester, etc.  Not specified  Glass fiber filter media is suitable for high-precision oil removal

Applicable Media  Compressed air, gas  Compressed air  Compressed air, inert gas

---

 Core Features

1. Ultra-precision oil removal: Designed specifically for refrigerated dryers, deeply filters residual oil vapor in compressed air.

2. Composite dirt-holding structure: Uses imported filter media, large dirt-holding capacity, and stable filtration accuracy.

3. High temperature and high pressure resistance: Glass fiber filter media can withstand temperatures up to 120℃ and working pressures up to 1.6 MPa.

4. Standard compatibility: Complies with international standards such as ISO 2941/2942/2943/3723/3724/3968/4572/16889.

5. Anti-static design: Verified structural integrity avoids the risk of static electricity buildup.

---

 Typical Application Areas

Key Industries:

- Laser Cutting: Protecting the optical lenses of the laser head in refrigerated dryers

- Air Compressor Systems: Precision filtration after screw/centrifugal air compressors

- Electronics Manufacturing: Clean compressed air for PCB production and semiconductor packaging

- Pharmaceuticals & Food: Compressed air purification for pharmaceutical production and aseptic packaging

- Automotive Manufacturing: Clean air source for painting and pneumatic tools

General Industry: Compressed air for oil and dust removal in steel mills, power plants, tunnel boring machines, paper mills, petroleum, chemical, textile, and shipbuilding industries.
