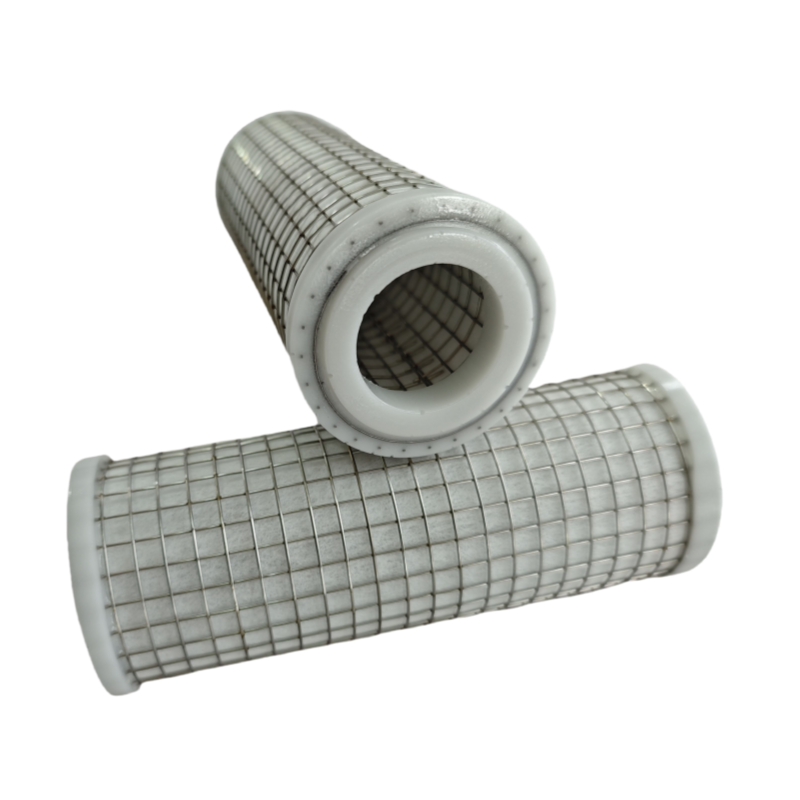

6CU25-280 Precision Filter Cartridge Basic Information

1. Filtration Accuracy

0.01 µm – 5 µm (glass fiber composite filter media for dryers), removes water vapor, oil mist, hydrocarbon vapors, and solid particles larger than 0.01 µm.

2. Flow Rate and Differential Pressure

- Rated flow rate: 0.6 – 18 L/min

- Initial differential pressure: ≤0.2 MPa

- Recommended replacement differential pressure: 1 bar; maximum allowable 3.5 bar.

3. Operating Pressure and Temperature

- Operating pressure: ≤420 bar (420 kg·f/cm²)

- Operating temperature: 0 – 80 ℃ (standard type), -30 – 115 ℃ (custom type).

4. Filter Media and Structure

Folded glass fiber, sponge, activated carbon, polypropylene composite; iron or plastic end caps, with optional metal mesh; screw-on or insert-type installation.

5. Testing Standards

ISO 2941 – 2943, 3723, 3724, 3968, 4572, 16889 (bursting resistance, integrity, compatibility, fatigue, differential pressure-flow rate, multiple passes).

6. Typical Applications

Air compressors, adsorption/combined dryers, power plants, steel mills, tunnel boring machines, mining, papermaking, petroleum, shipbuilding, chemical, textile, engineering vehicles, and other precision air supply systems requiring water, oil, and 0.01 µm particle removal.
