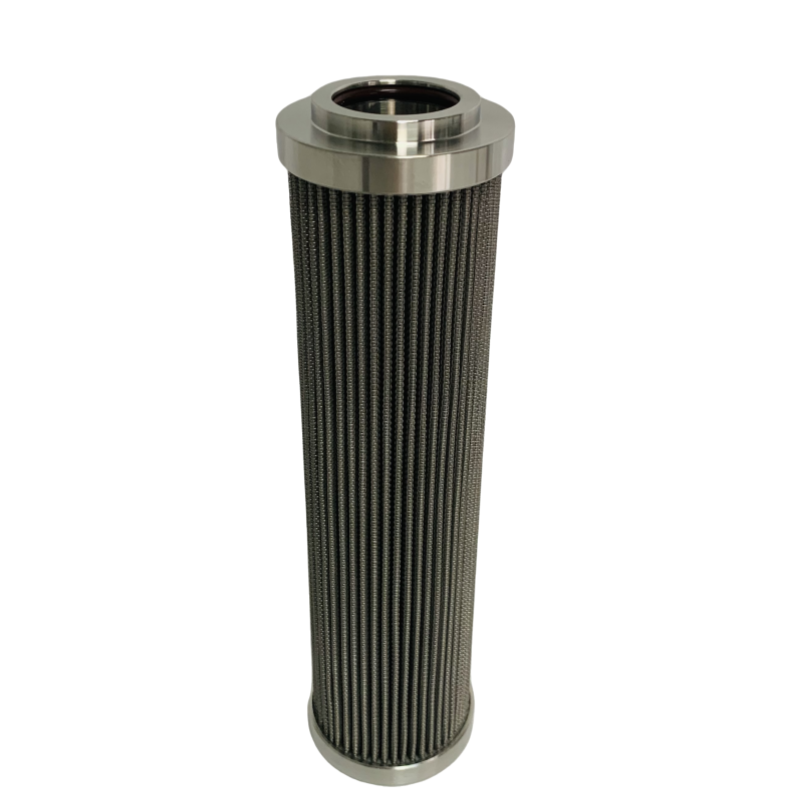

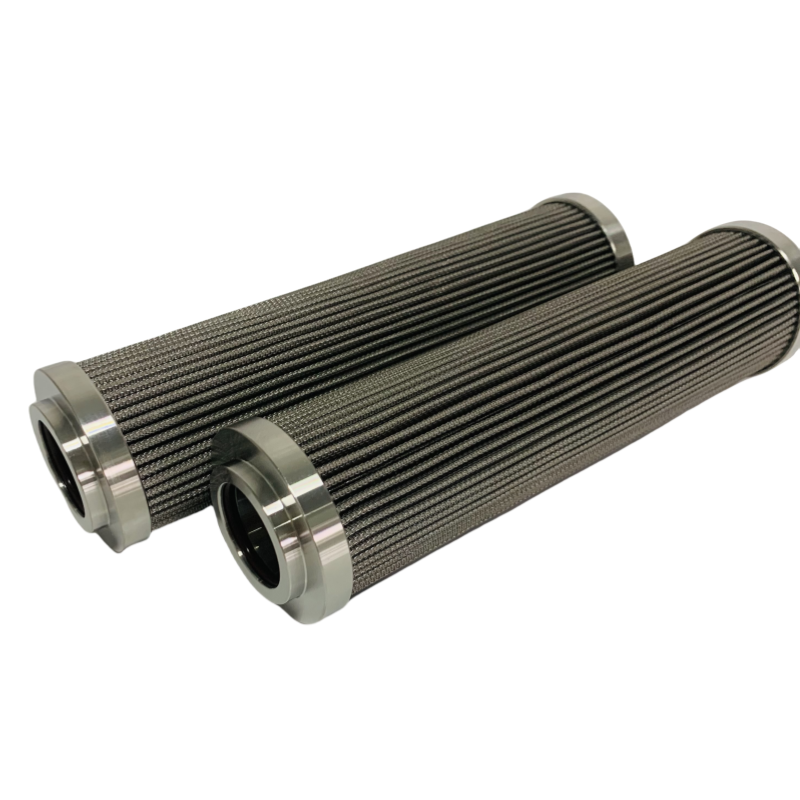

The 6.04.12D125W is a hydraulic oil filter element. The following is a summary of its basic parameters:

I. Basic Product Information

 Product Type  Hydraulic Oil Filter Element

 Common Brands/Replacements  Interchangeable with HYDAC models; manufactured by numerous domestic vendors

 Primary Function  Filters out particulate debris, impurities, and other contaminants from hydraulic systems to ensure system cleanliness

II. Technical Parameters

 Filtration Precision  1–100 μm (Customizable; common precision range)

 Operating Pressure  21 bar – 210 bar (Max. up to 420 kg/cm²; varies based on specific configuration)

 Operating Temperature  -30°C – +120°C

 Filter Media  Glass fiber, stainless steel mesh, filter paper, sintered felt, etc. (Customizable)

 End Cap Material  Zinc-plated carbon steel, stainless steel, nylon plastic, machined aluminum, etc.

 Support Core Material  Zinc-plated carbon steel perforated core, stainless steel perforated core

 Seal Material  Nitrile rubber (NBR), Fluororubber (FKM)

III. Applicable Media

Hydraulic oil, lubricating oil, gear oil, diesel fuel, engine oil, water-glycol mixtures, fuel, circulating cooling oil, etc.

IV. Application Fields

Primarily used in the following industries and equipment:

- Steel Industry (Hydraulic systems for rolling mills and continuous casting machines)

- Power Industry (Power plants and stations)

- Construction Machinery (Excavators, tunnel boring machines, cranes, etc.)

- Shipbuilding

- Petrochemical Industry

- Paper Industry

- Mining Machinery

- Lubrication systems for injection molding machines and large-scale precision machinery
