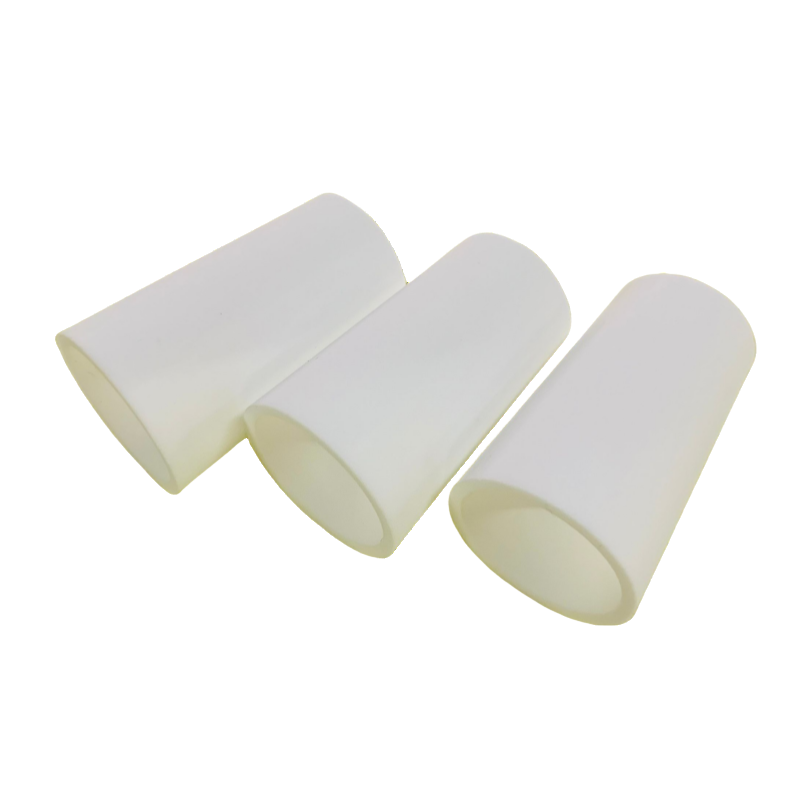

Both are high-precision coalescing filter cartridges made of borosilicate glass fiber sintered + PVDF bonded, used for the removal of oil mist, water vapor, and fine particles. 51-230-50-CR is the imperial standard, and 12.32.5CK is an equivalent replacement model.



 I. Basic Information of 51-230-50-CR



- Model: 51-230-50-CR (also written as 51-230-50C)

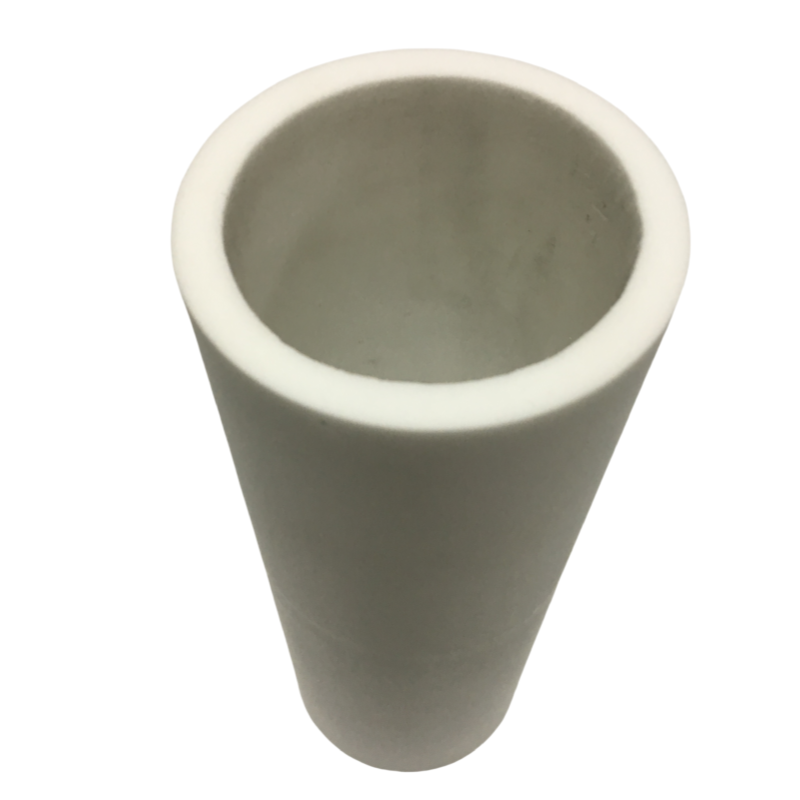

- Structure: Cylindrical, glass fiber sintered depth filtration, open at both ends/optional end caps



- Dimensions (mm): Inner diameter 51.2, Outer diameter 62.5, Length 230



- Filter Media: Borosilicate glass microfiber + PVDF (polyvinylidene fluoride) bonding, hydrophobic and oleophobic



- Accuracy/Efficiency: 0.1 μm, Efficiency 99.99%+ (coalescing oil/water removal)



- Operating Temperature: -50℃ to +150℃ (air)



- Pressure Resistance/Strength: Burst pressure ≥ 5.0 bar; Collapse resistance ≥ 2.0 bar



- Initial Pressure Difference: ≤ 2.8 kPa (@6 (m/min, 25℃ air)



 II. Basic Information of 12.32.5CK (Equivalent Replacement)



- Model: 12.32.5CK (European series, fully interchangeable with 51-230-50-CR)



- Dimensions (mm): Inner diameter 51, Outer diameter 62, Length 230 (Tolerance matching)



- Filter Media: Same material (Borosilicate glass fiber + PVDF), Hydrophobic coalescing type



- Accuracy/Efficiency: 0.1 μm, 99.99%+ Oil mist/water droplet removal



- Temperature/Pressure: Same as 51-230-50-CR (-50℃~150℃, 5 bar)



- Interface: Standard 226/222 or direct insertion type, compatible with filter housings of the same specifications



 III. Model Code Explanation



- 51-230-50-CR



- 51: Inner diameter 51 mm



- 230: Length 230 mm



- 50: Glass fiber thickness/grade (50 = Standard coalescing)



- CR: Coalescing Resin



- 12.32.5CK



- 12: Series code (Precision coalescing)



- 32: Outer diameter 32 (unit 1/10 inch = 62 mm)



- 5: Precision 0.1 μm



- CK: Coalescing Kynar (Kynar = PVDF bonding)



 IV. Key Performance and Features



1. Ultra-high precision coalescing: 0.1 μm grade, removes oil mist, water vapor, and solid particles, with residual oil as low as 0.01 mg/m³.



2. Hydrophobic and Oleophobic: PVDF bonding, non-absorbent and non-sticky to oil, easy to regenerate via backflushing/rinsing.



3. High Temperature and Corrosion Resistance: -50℃~150℃, resistant to mineral oils, synthetic oils, acids, alkalis, and most organic solvents.



4. High Rigidity and Long Lifespan: Sintered integrated structure, not easily deformed, no fiber shedding, lifespan approximately 2000–4000 hours.



5. Washable and Reusable: Low-pressure air backflushing or neutral solvent cleaning, reducing costs.



 V. Typical Applications



- Air Compressor Post-treatment: Oil mist and water removal, protecting dryers/precision filters



- Compressed Air Purification: Spraying, pneumatic instruments, food/pharmaceutical air



- Vacuum Pumps/Blowers: Inlet air oil and dust removal



- Industrial Gas Filtration: Removal of impurities from high-purity gases such as nitrogen and carbon dioxide.0-50-CR, 12.32.5CK glass fiber sintered filter element
