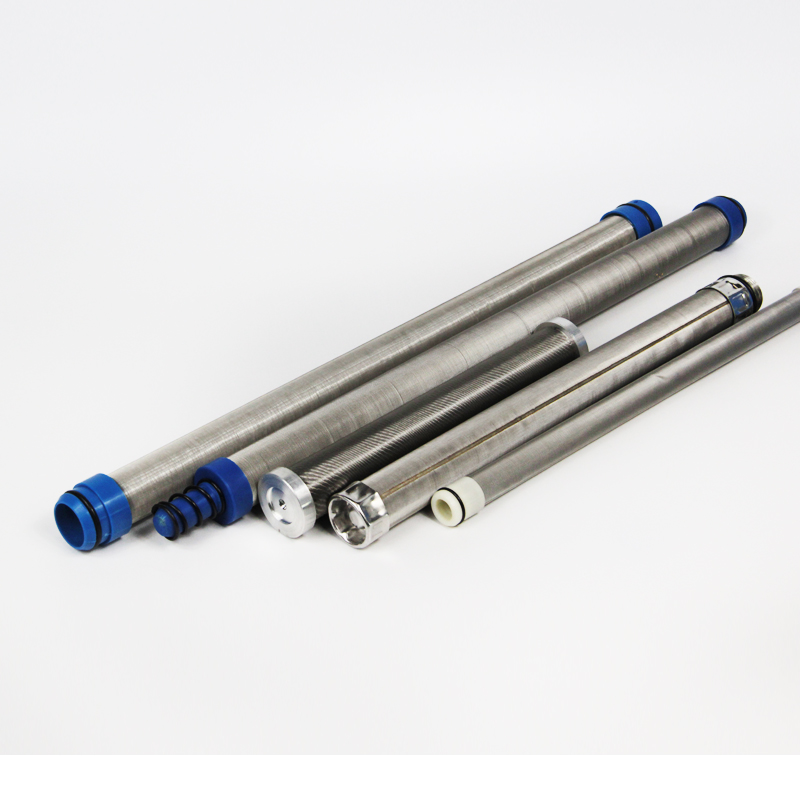

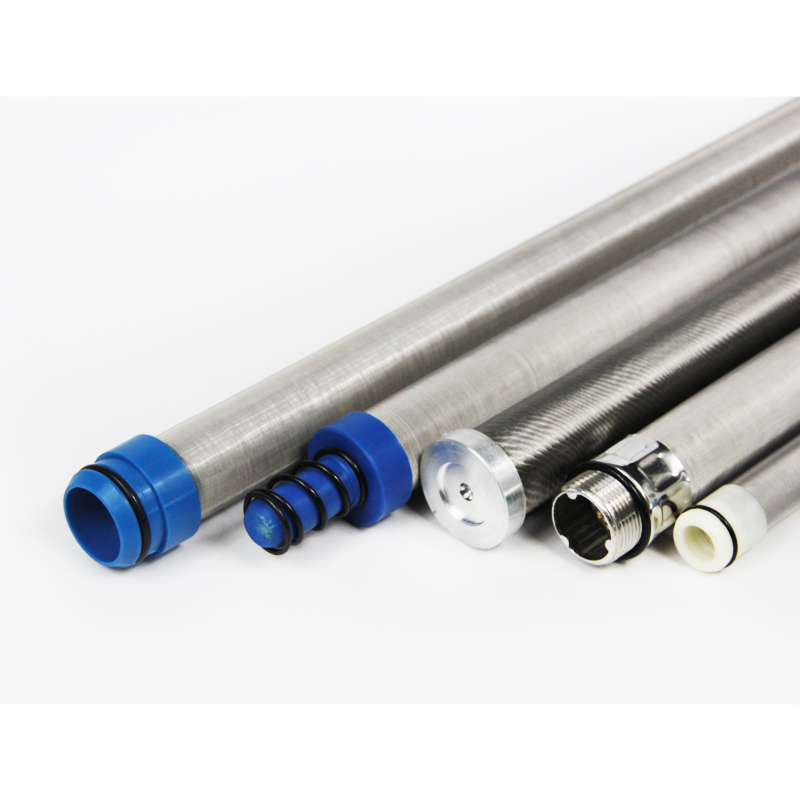

471063, 471063-009, 800500, 2.05.5.420.500 DN200, 2-22135 B2(15) Marine candle filter element

 Basic Information

1. Type: Marine candle filter element, rod-shaped structure

2. Application: Marine diesel engine and main engine lubricating oil/fuel filtration, compatible with BOLL and other marine filters

3. Filter Media: Stainless steel wire mesh / stainless steel sintered felt (304/316L)

4. Filtration Accuracy: 20–40 μm (most commonly used in marine applications)

5. Working Pressure: Max 1.0–1.6 MPa

6. Working Temperature: -30℃ ～ +110℃

7. Structure: Metal end caps, threaded/insertion connection, washable and reusable

8. Applicable Media: Lubricating oil, fuel oil, diesel oil, hydraulic oil

9. Size Characteristics:

- Standard outer diameter approximately 30mm

- Various lengths (420/500mm, etc.)

- DN200 indicates the inlet diameter of the matching filter, not the filter element diameter.
