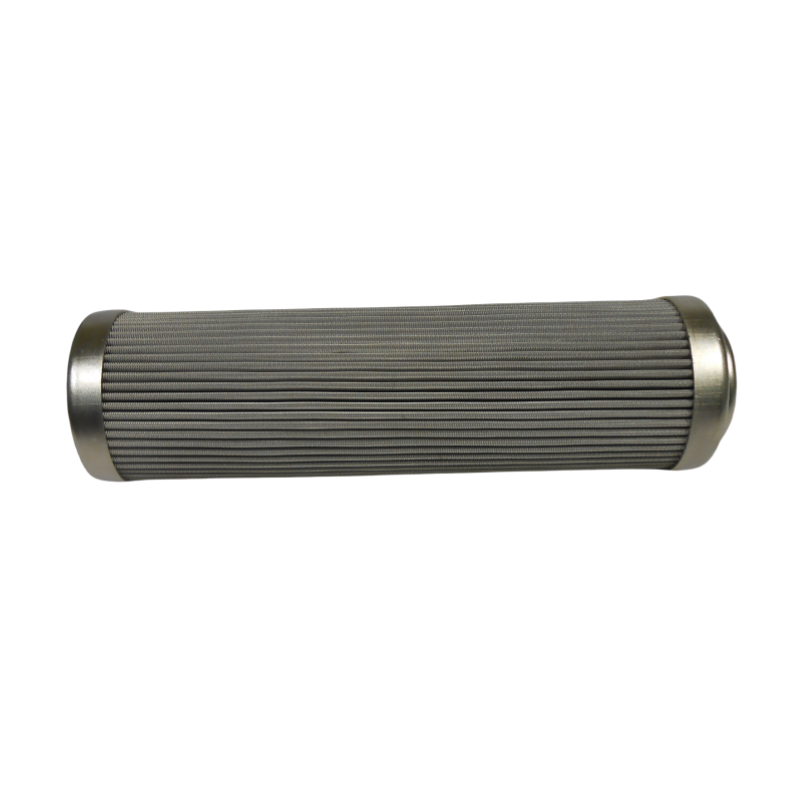

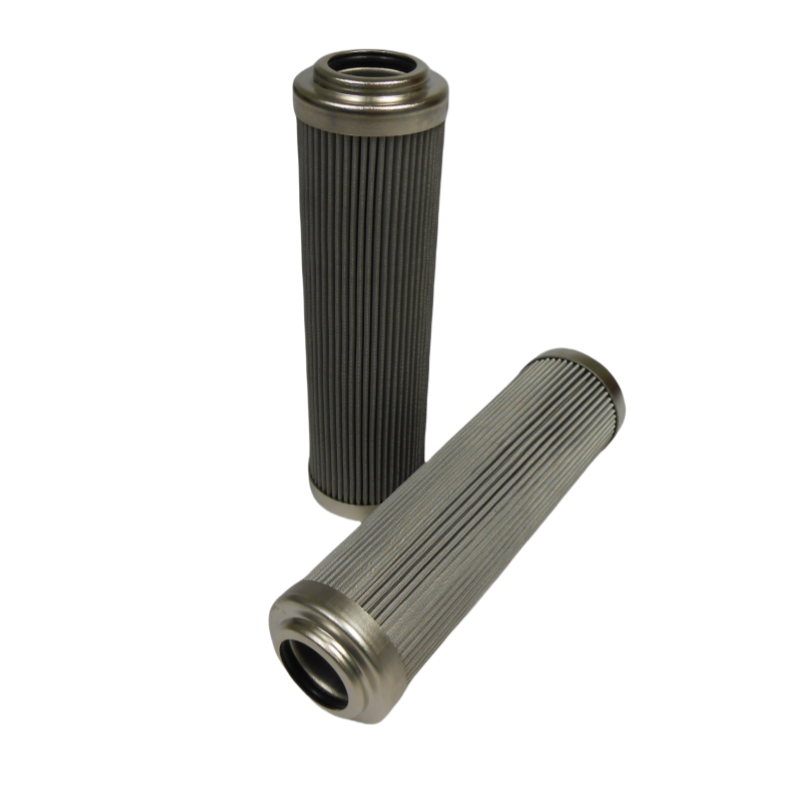

4710106230052591 stainless steel mesh filter cartridge

The following is the basic information of 471010 and 6230052591 stainless steel mesh filter element:

 471010 stainless steel mesh filter element

- Filter element form: folded filter element.

- Purpose: oil impurity removal.

- Scope of application: filter.

- Applicable object: oil.

- Working temperature: 30℃.

- Maximum working pressure difference: 20MPa.

- Filter accuracy: 10μm.

- Inlet and outlet diameter: 60mm.

- Raw water pressure: 80KG/c㎡.

- Filter area: 1000.

 6230052591 stainless steel mesh filter element

- Main filter material: standard five-layer sintered mesh.

- Filter accuracy: regular accuracy 1-300μm, other accuracy can be customized according to the requirements of the buyer.

- Material: 316L/304.

- Size: Stainless steel sintered mesh filter element is a non-standard filter element, customized according to the technical requirements of the buyer.

- Applicable temperature: -200℃-600℃, normal temperature 480℃, instantaneous high temperature 600℃.

- Connection method: flange, thread, quick card, pull rod, standard (such as 222, 226, etc.), other special interfaces can be customized according to the requirements of the buyer.

- Filter direction: According to the requirements of the buyer, it is divided into two types: from outside to inside and from inside to outside.

- Filter medium: gas, liquid, solid particles and other filter media.

- Acid and alkali resistance: Acid and alkali resistance, including strong acid and alkali, but not hydrochloric acid and substances containing a large amount of chloride ions.

- Whether it contains internal and external skeletons: It is necessary to determine whether the internal and external support skeletons are required based on the specific operating pressure and pressure difference values ​​provided by the user.

- Is it renewable: Renewable and can be backwashed and reused multiple times.
