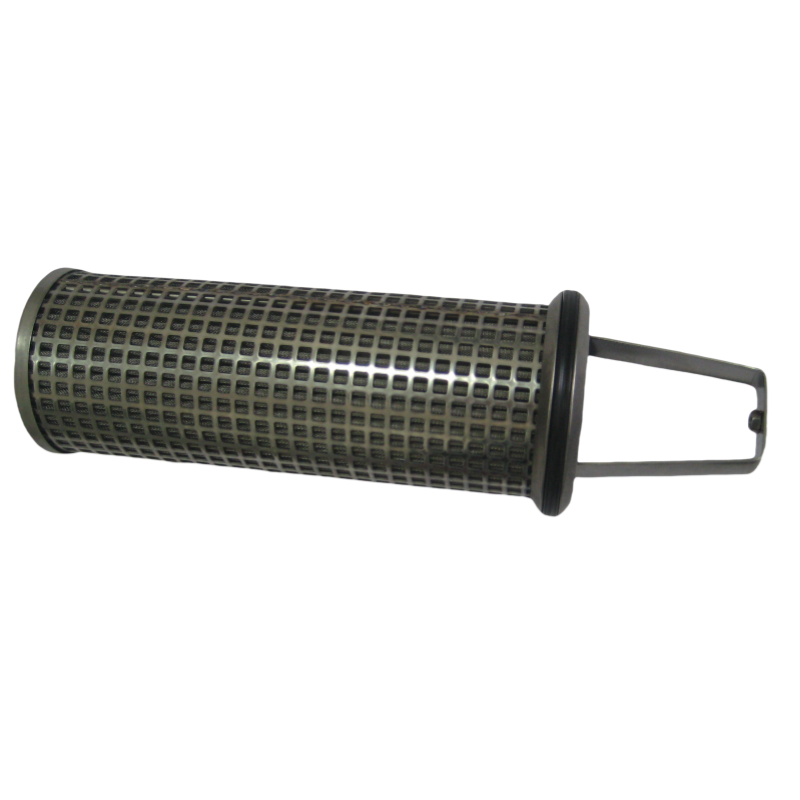

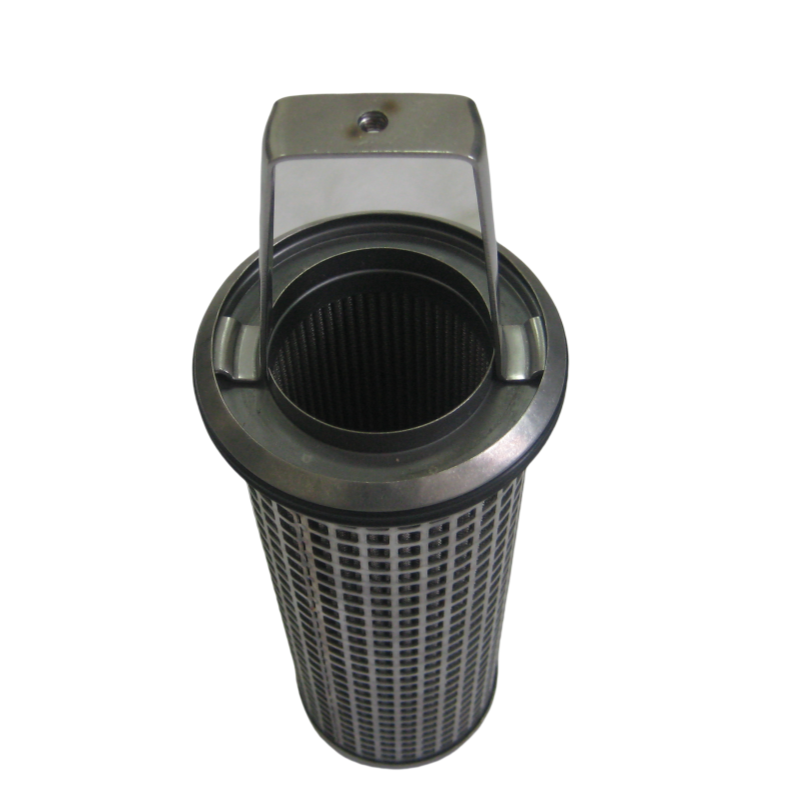

470363 fuel filter basket filter

The 470363 fuel filter element (basket-type filter element) is a device used to filter impurities and contaminants from fuel. The following is its basic information:

 Technical Parameters

- Operating Pressure: ≤1.58 MPa, customizable upon request.

- Operating Temperature: -20°C to 120°C.

- Filtration Refinement: 1-400 μm, depending on the filter material.

- Rated Flow Rate: 2-2600 L/min.

- Filter Material: Glass fiber, stainless steel, etc.

- Seal Material: Nitrile rubber, fluororubber.

 Testing Standards

- ISO 2941: Test method for filter element rupture resistance.

- ISO 2942: Test method for structural integrity of hydraulic filter elements.

- ISO 2943: Test method for compatibility of hydraulic filter element materials with fluids.

- ISO 3723: End-to-end compliance test for filter elements. - ISO 3724: Determination of filter element fatigue characteristics.

- ISO 3968: Differential pressure flow characteristics of filter elements.

- ISO 4572: Determination of filter element filtration characteristics by the multiple-pass method.

- ISO 16889: Filtration ratio/dirt holding capacity.

 Applications

- Marine: For filtration of ship fuel systems.

- Industrial: Widely used in power plants, steel mills, tunnel boring machines, mining, papermaking, petroleum, chemical, textile, and other industries.

- Mechanical processing equipment: For lubrication systems and compressed air purification in papermaking machinery, mining machinery, injection molding machines, and large precision machinery.

- Automotive and construction machinery: For hydraulic oil filtration in automotive engines and construction machinery.

- Other: Can also be used in thermal and nuclear power plants, shipbuilding, glass manufacturing, refineries, electronics, fiber, casting, forging, sheet metal, and other fields.

This filter element is suitable for a variety of industrial and marine fuel filtration applications, offering high filtration accuracy and excellent pressure and temperature resistance.
