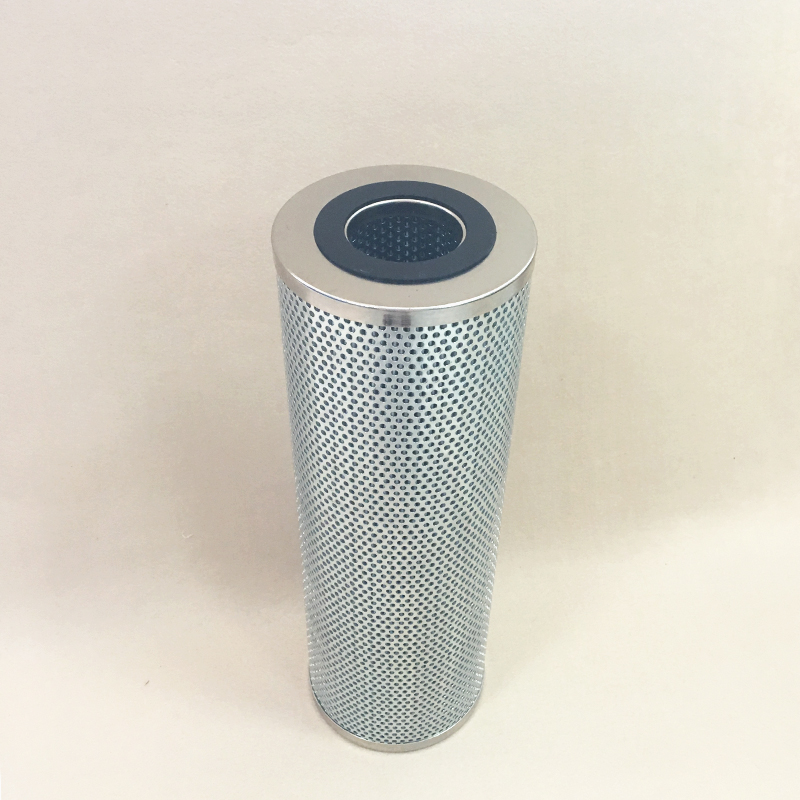

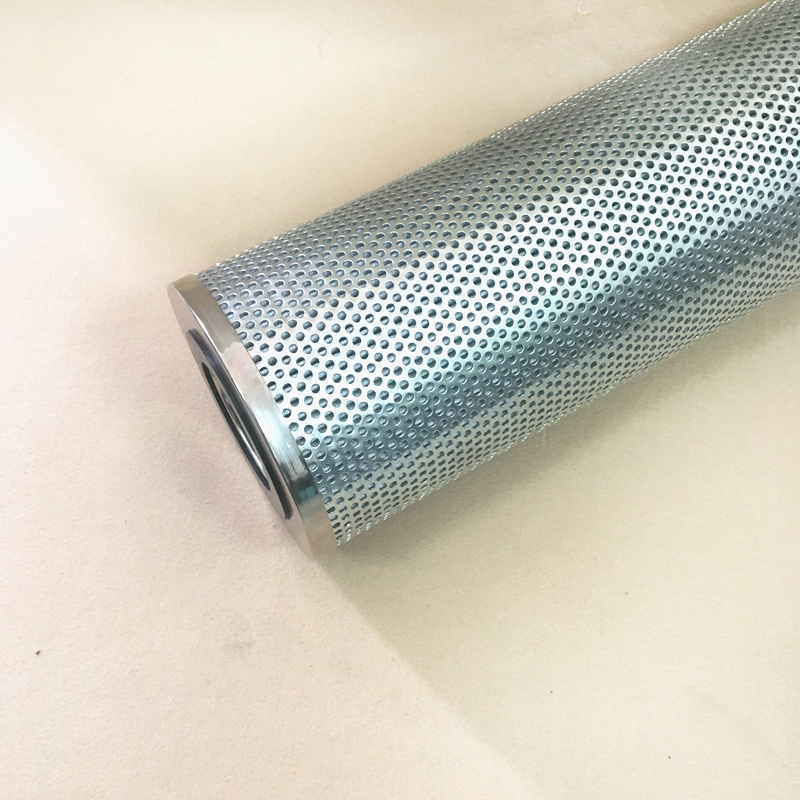

470200 Ship Fuel Filter Cartridge

The following is basic information about the 470200 marine fuel filter element:

### Product Application

This filter element is used in the Wartsila 12V34DF engine, primarily within the hydraulic oil system, to continuously filter impurities, moisture, and other contaminants from the oil, ensuring the system's normal operation.

Technical Parameters

- Filter Media: Glass fiber, filter paper, metal mesh, metal powder, sintered metal, sintered felt, etc.

- Filtration Accuracy: Glass fiber filter media 1-70μm; Metal mesh filter media 3-400μm; Filter paper filter media 5-40μm.

- Rated Flow Rate: 6~9100 L/min.

- Working Pressure: ≤450 kg.

- Working Temperature: -30~120℃.

Testing Standards

- ISO 2941 Test method for burst resistance of filter elements.

- ISO 2942 Test method for structural integrity of hydraulic filter elements.

- ISO 2943 Hydraulic filter element material – Test method for compatibility with liquids.

- ISO 3723 Filter element – ​​End-to-end conformation test.

- ISO 3724 Filter element – ​​Fatigue characteristics determination.

- ISO 3968 Filter element – ​​Differential pressure flow characteristics.

- ISO 4572 Filter element – ​​Multiple pass method for determining filtration characteristics.

- ISO 16889 Filtration ratio/dirt holding capacity.

Main Application Areas

- Filtration in hydraulic systems of rolling mills and continuous casting machines, and filtration in various lubrication equipment.

- Petrochemical: Separation and recovery of products and intermediate products in oil refining and chemical production processes; liquid purification; purification in the manufacturing of magnetic tapes, optical discs, and photographic films; particulate filtration of oilfield injection water and natural gas.

- Textile: Liquid stirring, air hoisting, wetting, operating accumulators, liquid spraying, spraying systems, liquid transportation. Purification and uniform filtration of polyester melt during the drawing process; protective filtration of air compressors; oil and water removal from compressed gases.

- Electronics and Pharmaceuticals: Pre-treatment filtration of reverse osmosis water and deionized water; pre-treatment filtration of cleaning solutions and glucose.

- Machining Equipment: Purification of lubrication systems and compressed air for papermaking machinery, mining machinery, injection molding machines, and large precision machinery; dust recovery filtration for processing and painting equipment.

- Railway Diesel Engines and Generators: Filtration of lubricating oil and engine oil.

- Various hydraulic oil filters for automotive engines, construction machinery, ships, and heavy-duty vehicles.

- Thermal and Nuclear Power: Purification of oils in the lubrication systems, speed control systems, and bypass control systems of gas turbines and boilers; purification of feedwater pumps, fans, and dust removal systems.

- Shipbuilding: Painting, riveting, sandblasting, welding; O2 and CO2 separation.

- Oil Refineries: Combustion gas, venting and cleaning oil lines, hoists and elevators, drive control systems, catalyst recirculation, sandblasting, painting.

- Precision Electronics: Painting, assembly, cleaning, electroplating.

- Fiber: Automatic machinery, wire suction guns, drying, dyeing.

- Foundry: Molten iron car positioning, cleaning equipment, sand conveying, driving pneumatic tools, sandblasting machines, grinding wheels, hoists and lifts, pneumatic picks, compactors, steel brushes, sandblasting, sand screening, core blasting.

- Forging: Scaling, furnace door air curtain, hoists and lifts, driving bending and straightening machines, driving clutches, brakes and clamping devices, driving forging hammers, fuel injectors.

- Sheet Metal: Stirring solutions, transporting chips, air jet cleaning, driving packaging presses, driving pressure plate chuck clutches and positioners, pneumatic tools, finishing hammers, pneumatic picks, drill bits, grinding wheels, hoists and lifts, combination tools, riveting machines, sandblasting, lubricant spraying, painting, container leak detection.
