| Features | Information

| Filter Media Type | Stainless Steel Wire Mesh |

| Filtration Rating | 10 Micron |

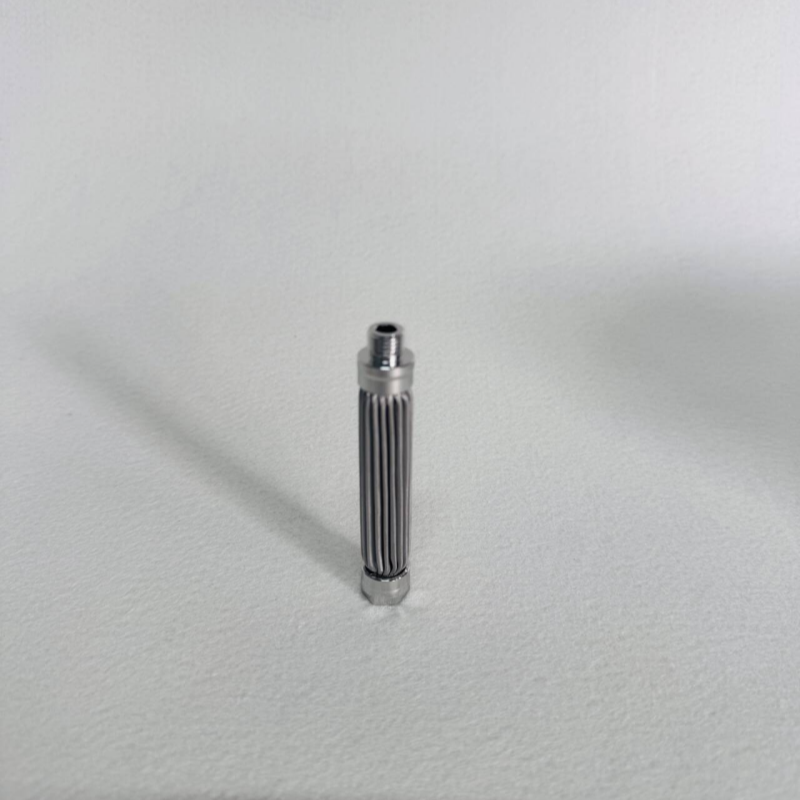

| Structure | Single or multiple layers of pleated stainless steel mesh to increase filtration area. Typically comes with a stainless steel center support tube and end caps. |

| Main Materials | Filter Media: 316L Stainless Steel (most commonly used); End Caps/Center Tube: 304 or 316 Stainless Steel; Seals: Typically silicone or Viton O-rings. |

| Features | Reusable, high strength, high temperature resistance, corrosion resistance, and long life. |

 1. Main Features and Applications

 Reusable and reusable: This is its greatest advantage. When the pressure differential across the filter element increases, it can be removed and cleaned with an appropriate cleaning agent (such as ultrasonic cleaning) or backwashing. After drying, it can be reinstalled, significantly reducing long-term operating costs.

 Excellent Chemical Compatibility: Constructed primarily of 316L stainless steel, it is resistant to a wide range of strong acids, bases, solvents, and corrosive chemicals (please check the compatibility table for details).

 High-Temperature and High-Pressure Resistance: It can operate in high-temperature environments (typically exceeding 400°C continuously) and withstand high pressure fluctuations.

 Typical Applications:

 Chemical Processing: Filtering corrosive process fluids, catalysts, and high-purity chemicals.

 Electroplating Fluid Filtration: Removing impurities from plating tanks is a standard feature of the electroplating industry.

 Petrochemical Energy: Filtration of fuel, lubricating oil, and hydraulic oil.

 Food and Pharmaceutical: Using food-grade certified materials and seals, it can be used for filtering process water, syrups, additives, and more.

 High-Temperature Gas Filtration: For example, filtration of intake air in industrial furnaces.

 3. Important Notes

 Absolute Accuracy: Stainless steel mesh is typically marked with Absolute Accuracy, meaning it intercepts 100% of spherical particles 10 microns or larger, offering highly reliable performance.

 Seal Material: This is a key factor in filter selection. The O-ring material must be determined based on the fluid being filtered:

 Silicone: High-temperature resistant, suitable for general fluids and gases.

 Fluorocarbon (Viton): Suitable for most chemicals and solvents, offering wide compatibility.

 EPDM: Suitable for mild acids, bases, and steam.

 Dimensional Compatibility: This is a standard-sized washable filter element, widely compatible with filter housings from various brands (such as Parker, Filterite, and Rosedale). When purchasing a replacement, be sure to confirm that its dimensions (overall length, outer diameter, inner diameter, and seal interface) match the original part.

Summary: The 411G-10VL / U-90341 is a high-performance, re-cleanable 10-micron absolute stainless steel filter element suitable for use in demanding industrial applications requiring high corrosion resistance, high temperature resistance, and reliability.
