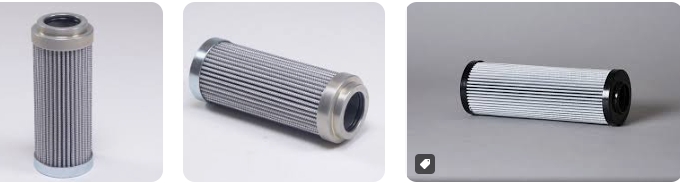

General Electric 315A2660P003 Replacement

Filter Model: 315A2660P003

• Type: Hydraulic Oil Filter
• Material:
  • Filter Material: Glass Fiber
• Precision: 3 Microns
• Connection Method: Pipe Connection
• Seal Method: O-Ring Axial Seal
• Pressure Difference: 21 MPa
• Filter Direction: From outside to inside, with impurity particles intercepted on the filter layer
• Design: Pleated design to increase the dirt-holding capacity of the product

Applications:

• Applicable Equipment:
  • Paper machinery
  • Mining machinery
  • Injection molding machines
  • Large precision machinery
  • Rolling mills
  • Continuous casting machine hydraulic systems
  • Various lubrication equipment
• Industries:
  • Manufacturing
  • Mining
  • Plastics
  • Heavy machinery

Additional Information:

• The 315A2660P003 hydraulic oil filter is directly installed inside the oil tank, simplifying the system's piping, saving space, and making the system layout more compact. It features a self-sealing valve that prevents oil from flowing back into the tank during maintenance and ensures that pollutants are removed from the tank when the filter is replaced, preventing oil from spilling out.
• The filter is made of multiple layers of metal mesh and filter material, with the number of layers and the mesh count determined by different operating conditions and purposes. It has high concentricity, can withstand high pressure, and is made of stainless steel without any burrs, ensuring a long service life.

Similar Models:

• For customers looking for alternative or compatible filters, here are some similar models that may be of interest:
  • 328A7168P001
  • 377A9841P002
  • 377A9841P003
  • 342A2581P008
  • 258A4860P002
  • 258A4860P004
  • 361A6256P010
  • 302A4276P01
  • 363A4378P003
  • 363A4378P001
  • 363A4378P004
