The following is basic information for the 31-042-018, 31042018, and ACR-436-003-B natural gas coalescing filter elements:

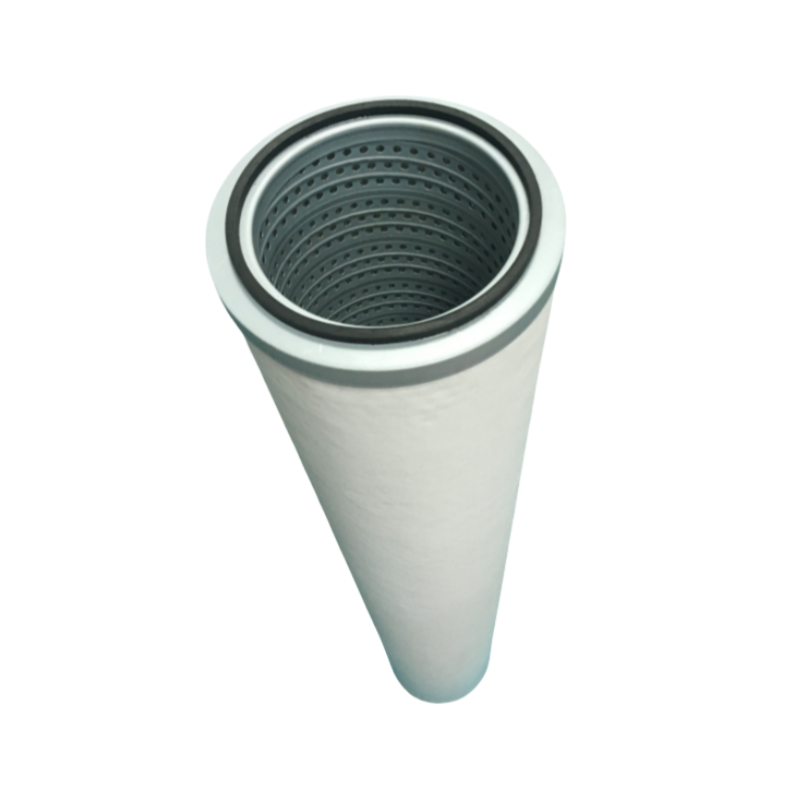

 31-042-018, 31042018 natural gas coalescing filter elements

- Technical Parameters:

- Operating Pressure: 16 bar, customizable upon request.

- Maximum Operating Temperature: 120°C.

- Operating Flow: 2-2600 L/min.

- Differential Pressure Alarm: 1 bar, 3 bar.

- Filtration Rating: 0.01-500 μm.

- Filter Materials: Glass fiber, metal mesh, filter paper, sintered felt, sintered mesh, powder sintered, polypropylene.

- Seal Materials: Nitrile rubber, fluororubber.

- Application Areas: Steel mills, power plants, aluminum plants, natural gas, shipbuilding, chemical industry, textiles, sewage treatment, restaurant fume extraction, mining, paper mills, subways, tunnel boring machines, trains, aircraft, engineering vehicles, construction machinery, and various industrial plants.

- Testing Standards:

- ISO 2941 Test method for filter element rupture resistance.

- ISO 2942 Test method for structural integrity of hydraulic filter elements.

- ISO 2943 Test method for compatibility of hydraulic filter elements with fluids.

- ISO 3723 End-to-end compliance test for filter elements.

- ISO 3724 Determination of fatigue properties of filter elements.

- ISO 3968 Differential pressure and flow characteristics of filter elements.

- ISO 4572 Determination of filtration properties of filter elements by the multiple-pass method.

- Product Features:

- High-quality imported filter media with high dirt holding capacity and long service life.

- Advanced processing technology for stable filtration accuracy. - High structural integrity, having passed ISO 2942:2004 testing multiple times, with no structural defects that could affect the filtration accuracy rating.

- Strict factory inspection, 100% complete inspection.

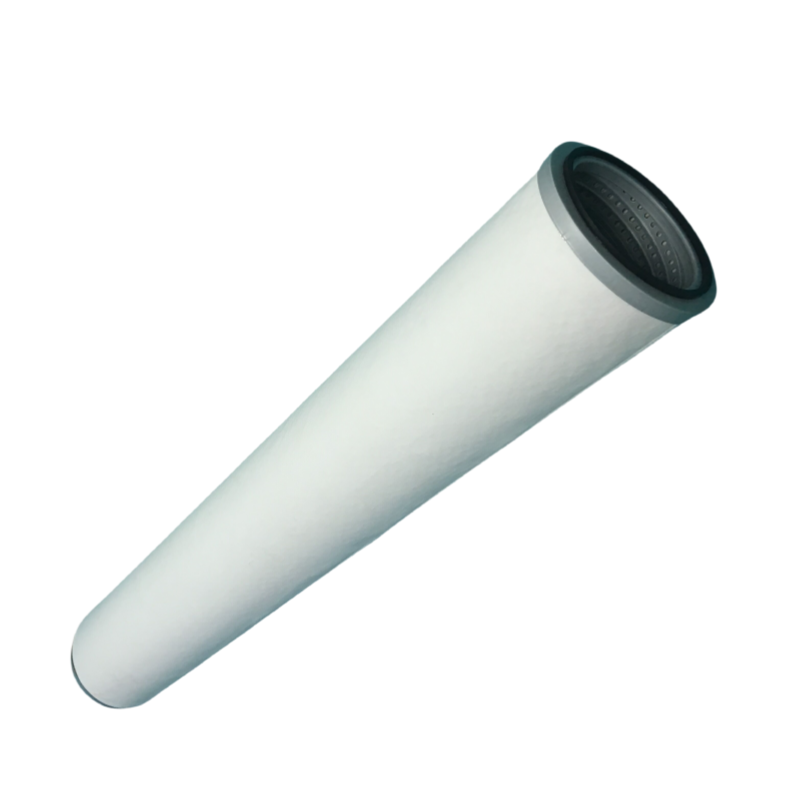

 ACR-436-003-B Natural Gas Coalescing Filter Element

- Technical Parameters:

- Filtration accuracy: 0.1-500μm.

- Rated flow: 6-9100 L/min.

- Operating pressure: ≤450 kg.

- Operating temperature: -30-120°C.

- Filter media: Glass fiber, air filter paper, PP, polyester, etc.

- Applications: Air compressors, compressors, power plants, steel mills, shield tunneling, mining, papermaking, petroleum, shipbuilding, chemical, textile, engineering vehicles, and various power machinery industries.

- Testing standards:

- ISO 2941 filter element rupture resistance test method.

- ISO 2942 Hydraulic filter element structural integrity test method.

- ISO 2943 Hydraulic filter element material and fluid compatibility test method.

- ISO 3723 Filter element end-to-end compliance test.

- ISO 3724 Determination of filter element fatigue characteristics.

- ISO 3968 Differential pressure flow characteristics of filter elements.

- ISO 4572 Determination of filtration characteristics of filter elements by the multiple-pass method.

- ISO 16889 Filtration ratio/dirt holding capacity.

- Product Features:

- High-quality imported filter media with high dirt holding capacity and long service life.

- Advanced processing technology ensures stable filtration accuracy.

- High structural integrity, having passed the standard ISO 2942:2004 test multiple times, with no structural defects that could affect the filtration accuracy assessment results.

- Strict factory inspection, with 100% full inspection.
