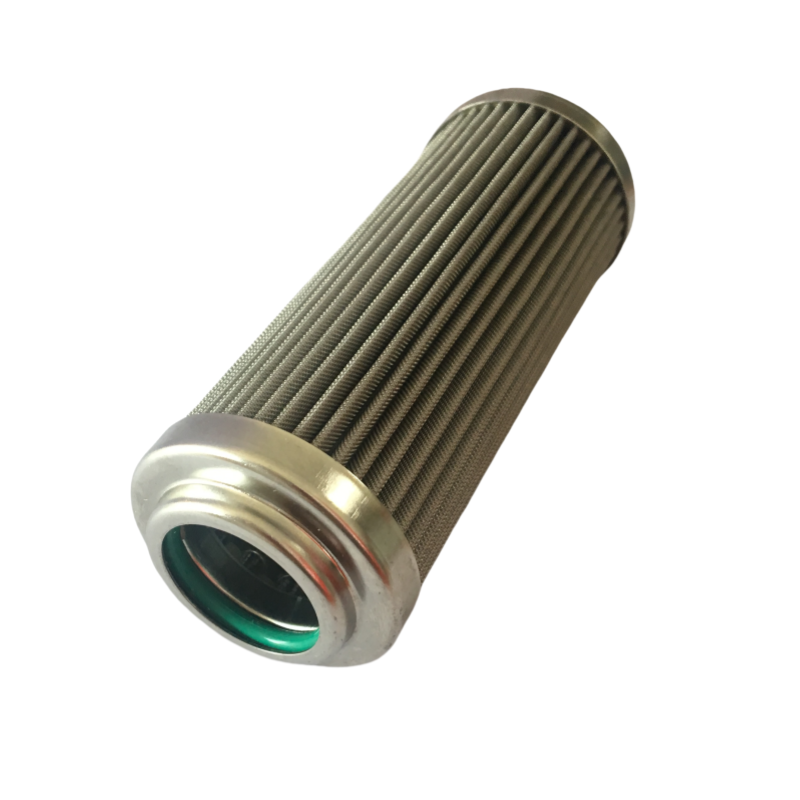

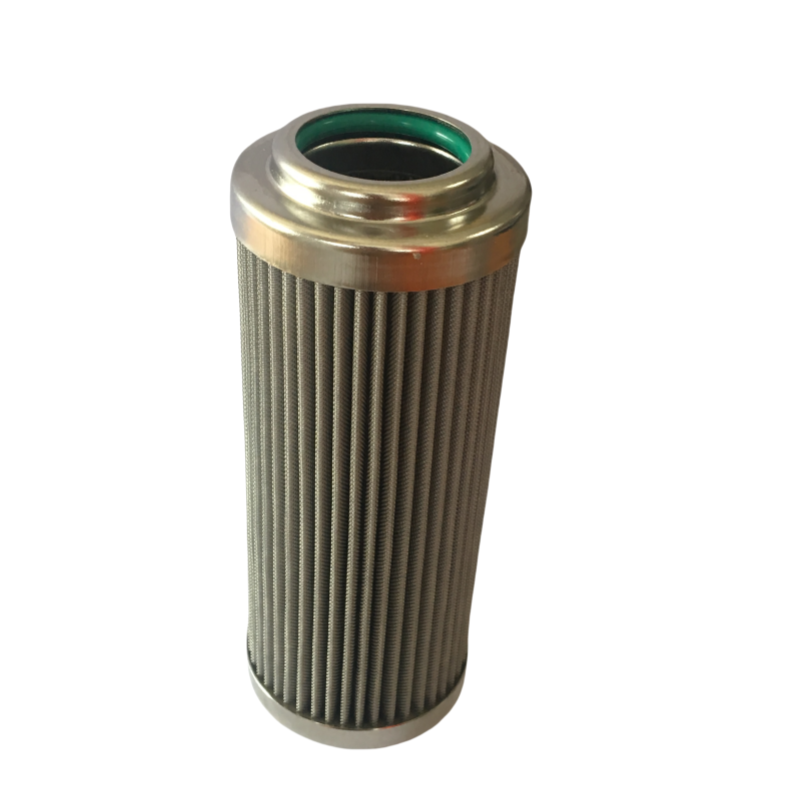

Stainless steel filter element 2734160XZ7431

The 2734160XZ7431 stainless steel filter element is a high-pressure oil filter element for hydraulic systems.

Basic Information and Applications

 Product Name: AGC Valve Console High-Pressure Stainless Steel Oil Filter Element 2734160XZ7431.

 Main Applications: Used in hydraulic oil systems to continuously filter impurities, moisture, and other contaminants from the oil to ensure normal system operation. Widely used in power plants, steel mills, tunnel boring machines, mining, petroleum, chemical, shipbuilding, papermaking, and other industries.

Technical Parameters and Features

This filter element has the following technical features and performance parameters:

 Optional Filter Media: The filter material selection is very flexible, and various materials such as glass fiber, filter paper, metal mesh, metal powder, sintered metal, and sintered felt can be used according to requirements.

 Filtration Accuracy Range: The accuracy depends on the selected filter media. Glass fiber filter media has a 1-70μm, metal mesh filter media has a 3-400μm, and filter paper filter media has a 5-40μm.  Rated Flow Rate: Wide range, from 6 to 9100 L/min, suitable for various system specifications.

 Operating Parameters: Maximum operating pressure up to 450 kg, operating temperature range from -30℃ to 120℃.

Quality and Standards

The production and testing of this filter element comply with several international filtration industry standards to ensure stable and reliable performance:

 ISO 2941 (Breakthrough Resistance)

 ISO 2942 (Structural Integrity)

 ISO 2943 (Material and Liquid Compatibility)

 ISO 3723 (End Load)

 ISO 3724 (Fatigue Characteristics)

 ISO 3968 (Differential Pressure Flow Characteristics)

 ISO 4572 (Multi-pass Method)

 ISO 16889 (Filtration Ratio/Dirtyness Capacity)
