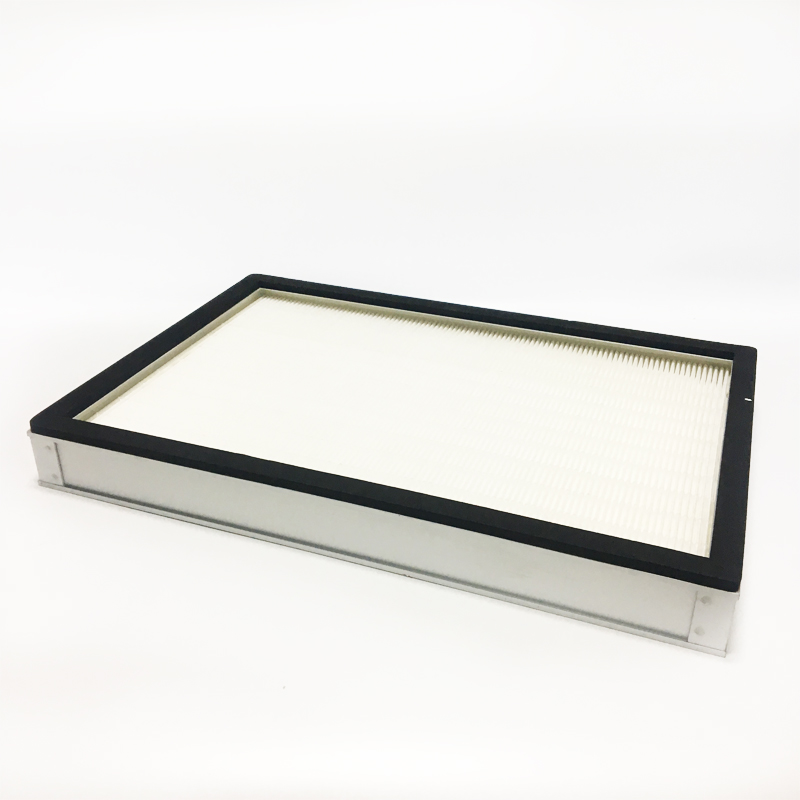

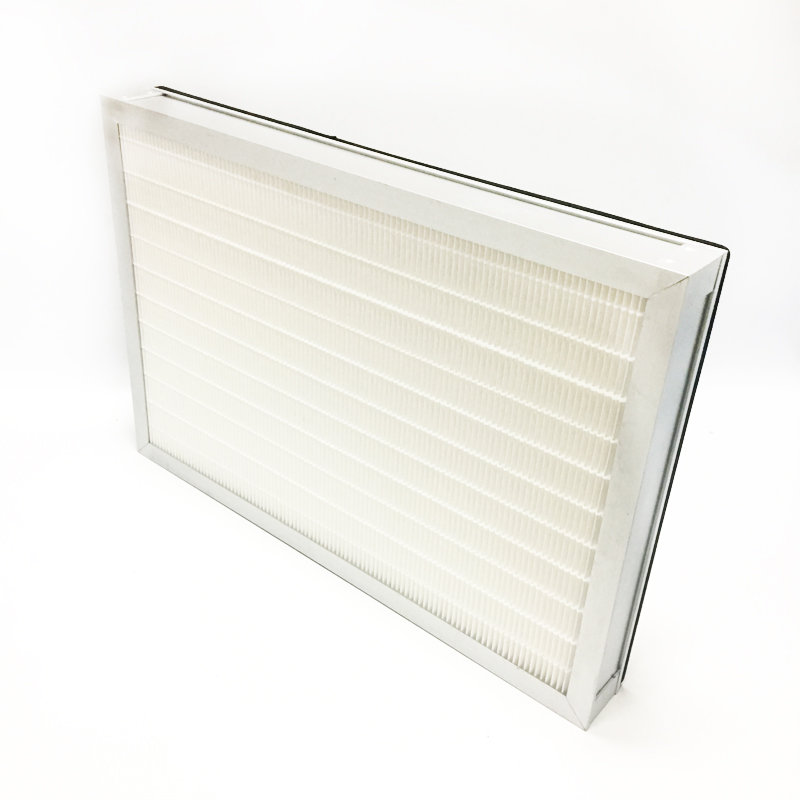

Plate and frame filter element 2260691 is a high-efficiency dust collection filter primarily used in Trumpf (TRUMPF) laser cutting machines, but it is also compatible with similar dust collection systems from other brands.

Dimensions: Its dimensions are 755 x 100 x 1102 mm (width x thickness x height). Some suppliers offer similar dimensions such as 750 mm x 1100 mm, which can also be used as replacements.

Compatible Machines and Industries:

 Compatible Machines: Primarily suitable for high-power (6~12kW) laser cutting machines such as the Trumpf TruLaser 7030 / 7040 / 7060 / Center series, and also for supporting dust collection systems such as Handte/Camfil MF-8.4/8.5/8.6.

 Application Industries: Widely used in metal processing scenarios that generate ultrafine dust and fumes, such as laser cutting and welding.

Materials and Performance

 Core Filter Media: Typically uses PTFE-coated polyester nonwoven fabric. This coating technology enables surface filtration, preventing dust from clogging deep within the filter media, thus extending its lifespan.

 Filtration Performance: High filtration efficiency, achieving a filtration rate of 99.95% - 99.99% for 0.3μm dust particles, with emission concentrations as low as 5mg/m³.

 Operating Parameters: Typical operating temperature range is -20℃ to 120℃, with an initial pressure drop of approximately ≤130Pa.
