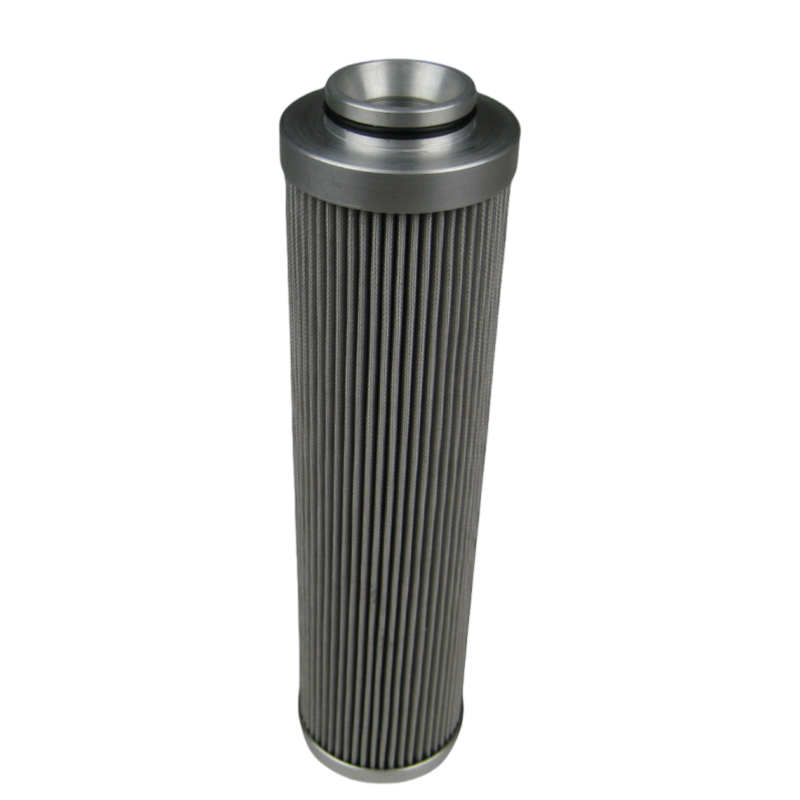

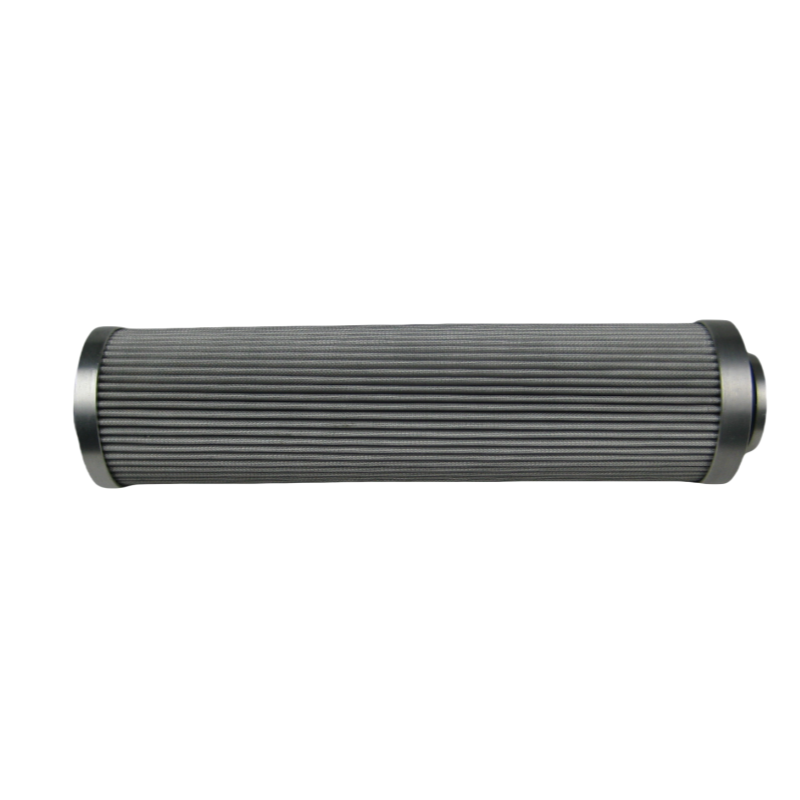

The 208EAP6013 dust collector filter element is actually an oil-gas separator filter element.

 Replacement Target: This filter element is specifically designed to replace the original oil-gas separator element in GD (Grandenfoyer) air compressors.

 Core Function: It uses fiberglass filter media to condense oil mist in compressed air into oil droplets and recover them, thus outputting clean compressed air with extremely low oil content, protecting downstream equipment.

 Application Areas: Widely used in applications requiring high-purity compressed air, such as machinery, metallurgy, textiles, electronics, and pharmaceutical industries.

 Core Filter Media  High-Performance Glass Fiber (Borosilicate Glassfiber)

Filtration Accuracy  Mainstream accuracy is 0.1µm, some oil separators have an accuracy of 3µm.

Filtration Efficiency  For particles ≥0.1µm, efficiency can reach 99.9% - 99.99%.

Size Reference  Outer diameter 140mm, total height 573mm.

Operating Pressure Difference  Initial pressure difference ≤ 0.02MPa, replacement is recommended when it reaches 0.08-0.1MPa.

Service Life  Typically around 3500 - 6000 hours.
