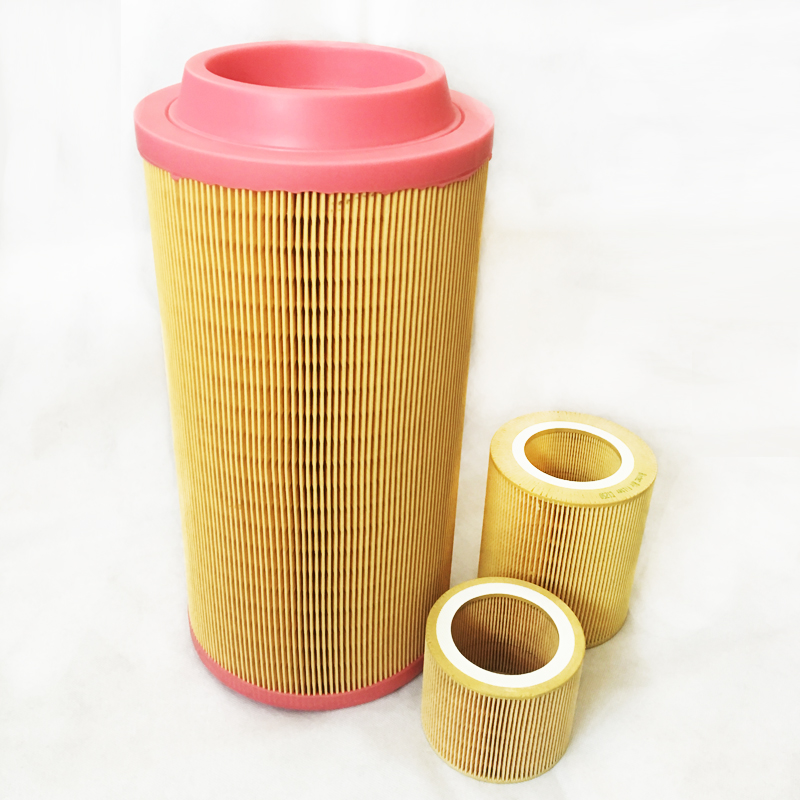

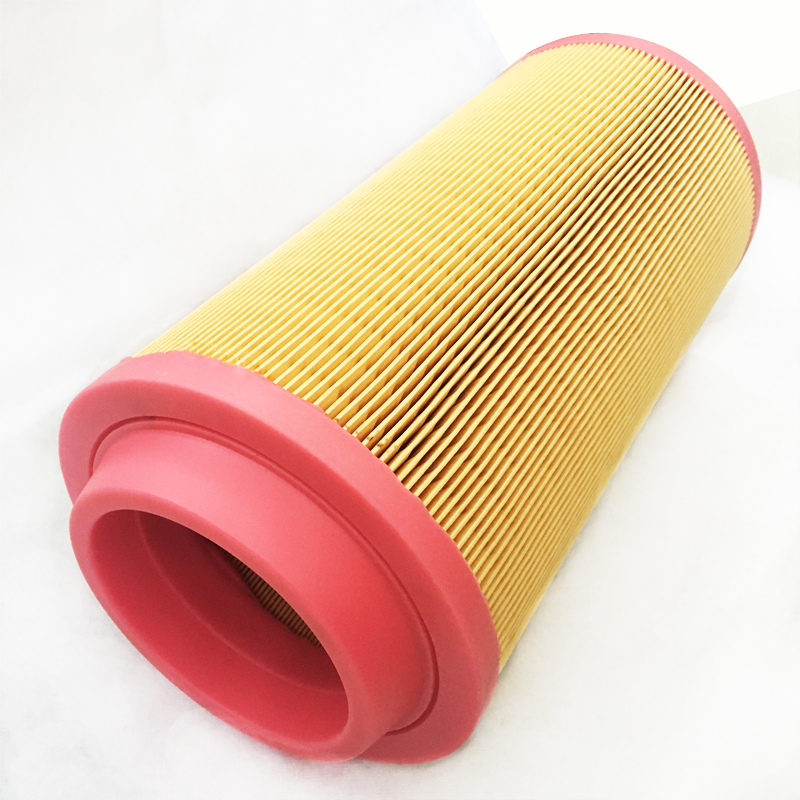

172.30173, 672.30173 air filter

Basic Product Information

 Part Number  172.30173 / 672.30173 (interchangeable)

 Alternative Models  SA17437, AF.4054

 Technical Specifications

 Filter Material  Filter paper (some products contain glass fiber)

 Filtration Accuracy  10–40 μm (micrometers)

 Filtration Area  1.82 ㎡ (refer to similar models)

 Operating Temperature  -30℃ ~ 120℃

 Operating Pressure  ≤450 bar (refer to similar models)

 Rated Flow Rate  6~9100 L/min (refer to similar models)

 Service Life  Approximately 3500 hours

 Construction Type  Cylindrical pleated filter element

 Product Description

- Numbering Relationship: 172.30173 Typically, 672.30173 is the filter element number, while 672.30173 is the complete component number for the filter assembly or housing; the core filter element is interchangeable in both.

Function: Filters fine dust and particulate matter (10–40μm) from the intake air, protecting the screw compressor and lubricating oil, and extending equipment life.

Compatible products typically meet the following ISO testing standards:

- ISO 2941 (Filter element burst resistance)

- ISO 2942 (Structural integrity)

- ISO 3723 (End load test)

- ISO 3968 (Differential pressure flow characteristics)

- ISO 16889 (Filtration ratio/dirt holding capacity)
