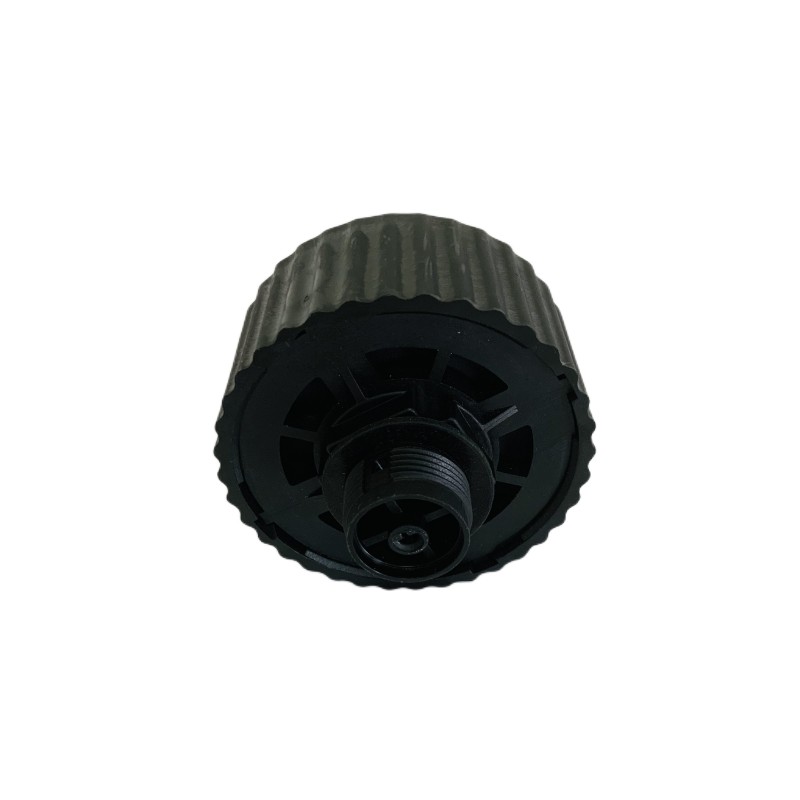

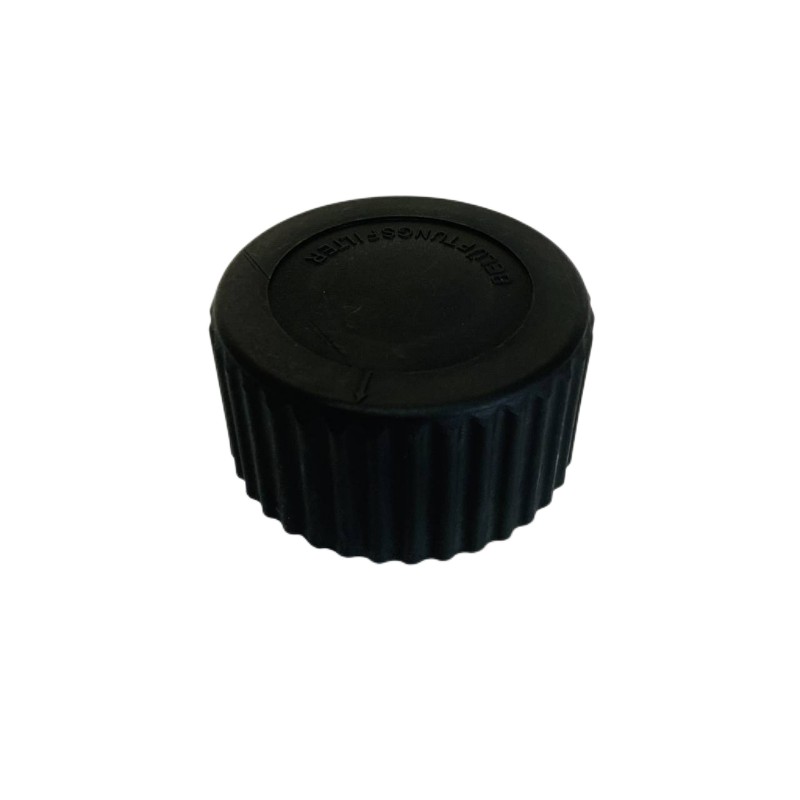

168306 respirator

 168306 Breathing Apparatus Basic Information

168306 is a fuel tank air breathing apparatus filter (also known as an air breathing apparatus filter element), primarily used to remove dust particles and moisture from the air, protecting the cleanliness of the fuel inside the fuel tank and ensuring the normal operation of the equipment.

 1. Product Identification

- Model Number: 168306

- Name: Fuel Tank Air Breathing Apparatus Filter

- Matching Model: Often used with 153955 and 4120001088

- Type: Air Breathing Apparatus Filter Element / Fuel Tank Breathing Apparatus

- Applicable Medium: Air (for breathing filtration in fuel tanks and oil storage tanks)

---

 2. Main Technical Parameters

 Filtration Accuracy  0.1~500μm (depending on filter media)<br>Glass fiber filter media: 1-70μm; Filter paper filter media: 5-40μm

 Rated Flow Rate  6~9100 L/min

 Working Pressure  ≤450 kg (≈45MPa)

 Working Temperature  -30~120℃

 Filter Media Material  Fiberglass, air filter paper, PP, polyester nonwoven fabric, etc.

 Pressure Differential  Minimum 0.2MPa

 Sealing Material  Nitrile rubber, fluororubber

 3. Product Features

- Dust Removal Function: Effectively removes fine dust particles from the air, ensuring the cleanliness of the air entering the oil tank.

- Large Dirt Holding Capacity: Uses high-quality imported filter media, with strong dirt holding capacity per unit area and long service life.

- Stable Accuracy: Advanced processing technology reduces mechanical damage to the filter media, ensuring uniform and stable filtration accuracy.

- Reliable Structure: Thickened frame design, strong pressure resistance, suitable for harsh industrial environments.

- Maintenance-Free Design: Disposable, easy and quick replacement.

---

 4. Main Application Areas

This respirator is widely used in the following equipment and industries:

- Oil Tank Systems: Breathing filtration for various hydraulic oil tanks and storage tanks.

- Air Compressors, Compressors: Intake air filtration.

- Heavy Industry: Power plants, steel mills, aluminum plants, cement plants

Engineering Construction: Tunnel boring machines, construction machinery, mining equipment

Transportation: Trains, airplanes, engineering vehicles

Other Industries: Papermaking, petroleum, shipbuilding, chemicals, textiles, etc.
