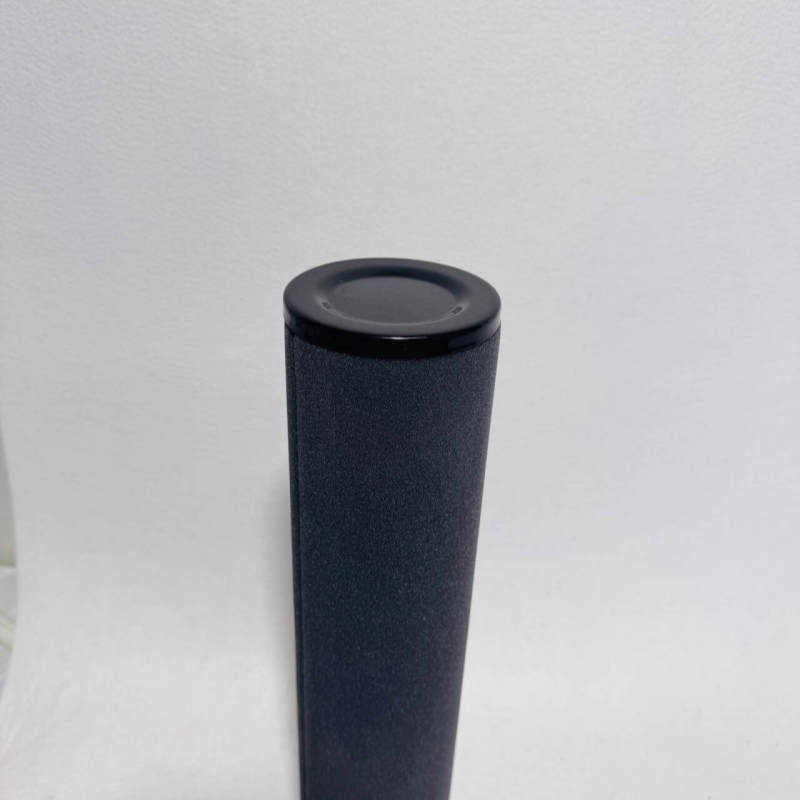

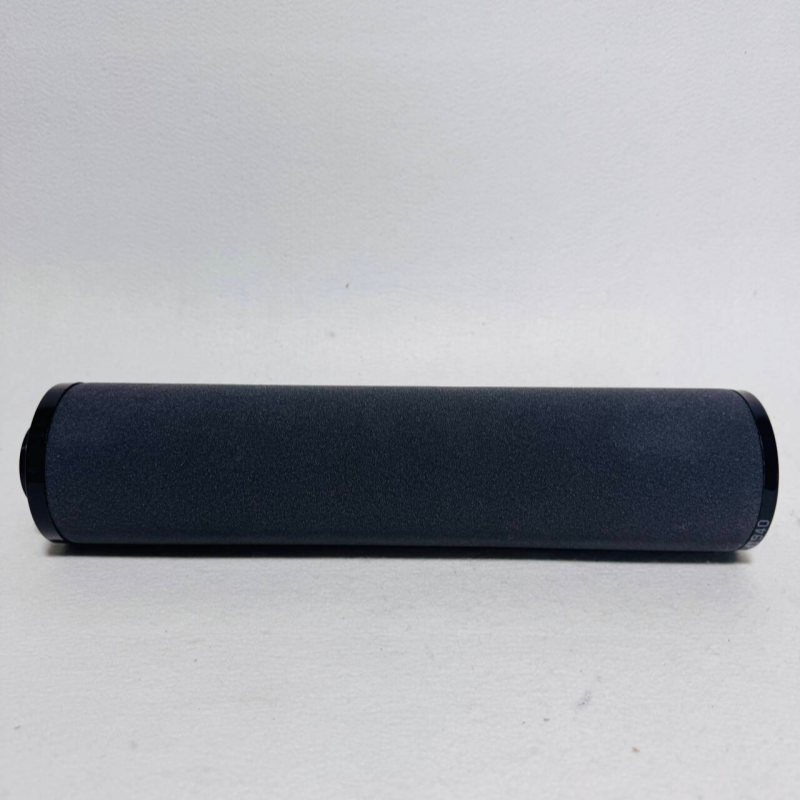

1629026309 (FH1940) Precision Filter Cartridge

1629026309 (FH1940) is a precision filter element used in compressed air after-treatment systems, mainly applied in equipment such as air compressors and dryers. The following is basic information:

 Technical Parameters

 Working Pressure  16 bar (standard), customizable for special requirements

 Maximum Working Temperature  120°C

 Working Flow Rate  2-2600 L/min

 Filtration Accuracy  Not explicitly stated, inferred from general precision filter element specifications as 1-5 μm (further confirmation required)

 Applicable Media  Compressed air, gas

 Sealing Material  Typically NBR nitrile rubber or FKM fluororubber

 Product Features

1. High-Precision Filtration: Designed specifically for compressed air systems, effectively removes moisture, oil mist, and solid particles.

2. Wide Flow Rate Range: Covers a range of 2-2600 L/min, adaptable to different air compressor specifications.

3. Temperature and Pressure Resistance: Maximum working temperature of 120°C and pressure of 16 bar, meeting typical industrial compressed air operating conditions.

4. Modular Design: Typically combined with a base, ball valve, etc., to form a complete filter unit.

 Application Areas

- Air Compressor Post-treatment: Installed at the rear end of the air compressor, serving as a core component of the precision filter.

- Dryer System: Used for pre- or post-filtration in adsorption compressed air dryers.

- Refrigerated Dryer: Precision filter element for post-filters in refrigerated dryers.

- Industrial Gas Purification: Processes with high compressed air quality requirements, such as powder conveying and spraying.
