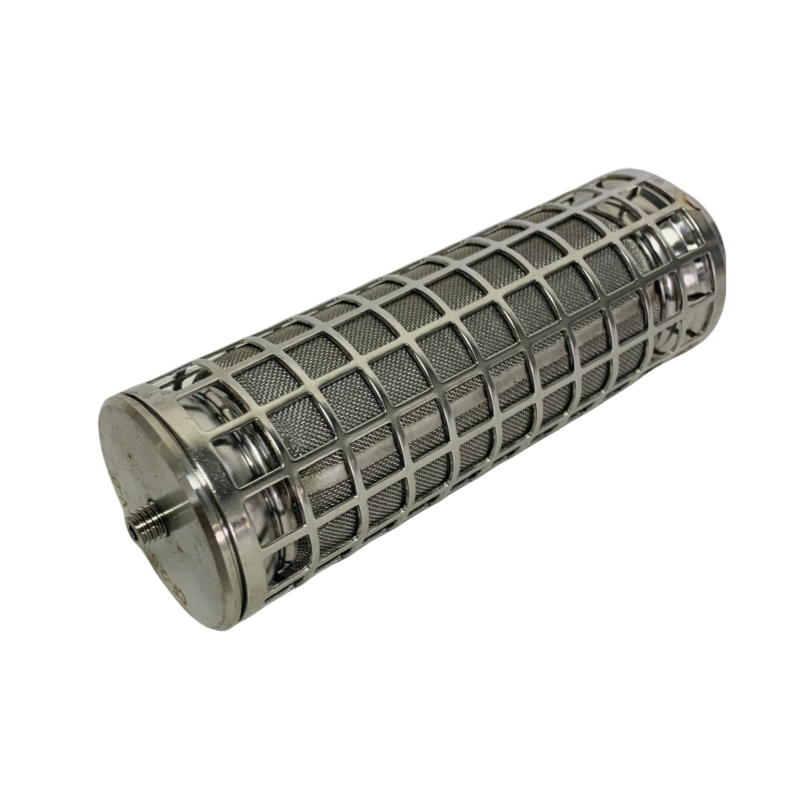

1313176 hydraulic filter element

 Structure  Folding

 Filter Layer Material  Glass fiber, stainless steel woven mesh, sintered mesh

 Frame Material  Stainless steel

 Main Application  Filters out solid particles and colloidal matter from hydraulic oil, controls oil contamination, and protects the hydraulic system

 Applications  Construction machinery, metallurgy, petrochemical, power generation, and other industries

 Filtration Accuracy  Common range: 5μm to 20μm (e.g., 10μm is common in construction machinery)

 Operating Temperature  Common range: approximately -10°C to +100°C (some can reach 135°C)

 Pressure Resistance  Typical value: approximately 21MPa; some special designs can withstand higher pressures

Working Principle and Importance

Hydraulic oil filter elements are crucial in hydraulic systems. They function primarily through the following mechanisms:

- Impurity Filter: Installed in the hydraulic system's suction, pressure, return, or bypass lines, it removes impurities such as wear metal powder generated within the system and solid particles from outside.

- Component Protection: By controlling the contamination level of the working medium, it effectively extends the service life of hydraulic pumps, valves, cylinders, and other components.
