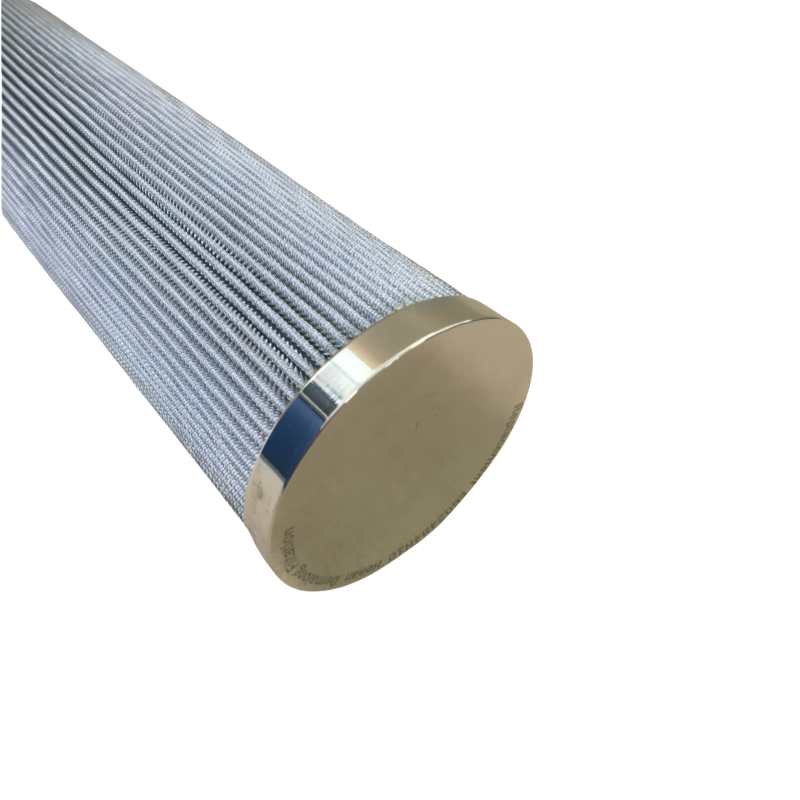

1174632 Marine Hydraulic Oil Filter Cartridge

The following is the basic information about "1174632 Marine Hydraulic Oil Filter":

 Basic Information

- Model: 1174632

- Purpose: Mainly used in marine hydraulic systems, filtering impurities in hydraulic oil, keeping the oil clean, and extending the service life of hydraulic system components.

 Technical Parameters

- Filtration accuracy: The filtration accuracy of the hydraulic oil filter element is usually selected according to the requirements of the hydraulic system, and the common accuracy range is 3-40μm. The specific accuracy needs to be determined according to the design requirements of the marine hydraulic system.

- Working pressure: The hydraulic oil filter element must meet the working pressure requirements of the hydraulic system. For example, the pressure difference of the oil suction filter is ≤0.1bar, and the pressure difference between the pump outlet and the return oil filter is ≤2bar.

- Working temperature: The appropriate filter element material needs to be selected according to the working temperature of the hydraulic oil to ensure its performance in high or low temperature environments.

- Flow rate: The filter element should meet the design flow requirements of the hydraulic system to ensure that the pressure drop is within the allowable range at the maximum flow rate.

 Performance characteristics

- High-efficiency filtration: It can effectively remove impurities such as metal debris and rubber particles in hydraulic oil and keep the oil clean.

- Pressure and corrosion resistance: It adopts corrosion-resistant and pressure-resistant materials, such as inorganic glass fiber or stainless steel mesh, to ensure the stability of the filter element in high-pressure and corrosive environments.

- Low pressure drop design: It ensures that the pressure drop is small during the filtration process, and optimizes the flow rate and filter element life.

- Bypass valve and contamination indicator: Some filter elements are equipped with bypass valves and contamination indicators to prevent flow interruption when blocked, and prompt replacement in time.

 Application scenarios

- Hydraulic system: It is suitable for marine hydraulic systems, including the protection of hydraulic pumps, hydraulic motors, hydraulic cylinders and other components.

- Installation position: According to the design of the hydraulic system, the filter element can be installed in the suction port, pressure line or return line.

 Selection suggestions

- Filter accuracy selection: Select the appropriate filter accuracy according to the requirements of key components in the hydraulic system. For example, servo valves require 3-5μm, while ordinary hydraulic valves or gear pumps can use 20-40μm.

- Material and structure: Corrosion-resistant and pressure-resistant filter element materials are preferred to ensure compatibility with hydraulic oil.

- Maintenance and economy: Consider the convenience of filter element replacement and maintenance cost, and balance the initial cost with long-term maintenance costs.
